Beta G2 Moplen

SKU: PVCHSE056

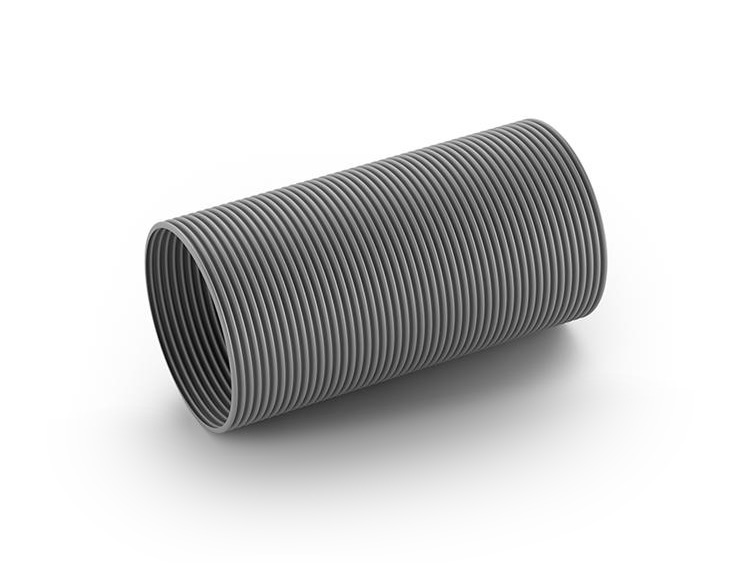

Blow moulded corrugated hose in polypropylene. Designed for the light suction of dusts and fumes in industry.

Product Code:

Size Variants

Product Code	Ø I.D.	Ø I.D.	Ø O.D.	Total Thickness	Weight	Bending Radius	Coil Length
PVCHSE056-01		16.5 mm	21.5 mm	2.5 mm	50 g/m	20 mm	100 m
PVCHSE056-02		20 mm	25 mm	2.5 mm	65 g/m	25 mm	100 m
PVCHSE056-03		26 mm	31 mm	2.5 mm	70 g/m	31 mm	50 m
PVCHSE056-04		28 mm	34 mm	3 mm	75 g/m	34 mm	100 m
PVCHSE056-05	1 1/4 inch	32 mm	38 mm	3 mm	105 g/m	38 mm	100 m
PVCHSE056-06		35 mm	41 mm	3 mm	110 g/m	41 mm	100 m
PVCHSE056-07		40 mm	46 mm	3 mm	125 g/m	46 mm	100 m
PVCHSE056-08	1 3/4 inch	45 mm	52 mm	3.5 mm	150 g/m	52 mm	100 m
PVCHSE056-09	2 inch	50 mm	57 mm	3.5 mm	195 g/m	57 mm	100 m
PVCHSE056-10		60 mm	67 mm	3.5 mm	240 g/m	67 mm	50 m
PVCHSE056-11		70 mm	77 mm	3.5 mm	280 g/m	77 mm	50 m
PVCHSE056-12		80 mm	88 mm	4 mm	350 g/m	88 mm	50 m
PVCHSE056-13	3 1/2 inch	90 mm	99 mm	4.5 mm	400 g/m	99 mm	25 m
PVCHSE056-14		100 mm	109 mm	4.5 mm	440 g/m	109 mm	25 m
PVCHSE056-15		120 mm	129 mm	4.5 mm	555 g/m	129 mm	25 m
