| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Vacuum 23°c | Spiral Pitch | Spiral Direction | Ø Spiral | Coil Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE017-01 | 3/8 inch | 10 mm | 16.2 mm | 3.1 mm | 180 g/m | 40 mm | 10 bar | 30 bar | 9 m h2o | 5.5 mm | right | 0.8 mm | 30 m |
| PVCHSE017-02 | 12 mm | 18.2 mm | 3.1 mm | 190 g/m | 48 mm | 10 bar | 30 bar | 9 m h2o | 6 mm | right | 0.8 mm | 30 m | |
| PVCHSE017-03 | 13 mm | 19.2 mm | 3.1 mm | 210 g/m | 52 mm | 10 bar | 30 bar | 9 m h2o | 6 mm | right | 0.8 mm | 30 m | |
| PVCHSE017-04 | 14 mm | 20.2 mm | 3.1 mm | 230 g/m | 56 mm | 10 bar | 30 bar | 9 m h2o | 6 mm | right | 0.8 mm | 30 m | |
| PVCHSE017-05 | 5/8 inch | 16 mm | 22.2 mm | 3.1 mm | 260 g/m | 64 mm | 10 bar | 30 bar | 9 m h2o | 7 mm | right | 0.8 mm | 30 m |
| PVCHSE017-06 | 18 mm | 25 mm | 3.5 mm | 295 g/m | 72 mm | 9 bar | 27 bar | 9 m h2o | 7 mm | right | 1 mm | 30 m | |
| PVCHSE017-07 | 3/4 inch | 19 mm | 26 mm | 3.5 mm | 330 g/m | 76 mm | 9 bar | 27 bar | 9 m h2o | 7.2 mm | right | 1 mm | 30 m |
| PVCHSE017-08 | 20 mm | 27 mm | 3.5 mm | 340 g/m | 80 mm | 8.5 bar | 25.5 bar | 9 m h2o | 7.5 mm | right | 1 mm | 30 m | |
| PVCHSE017-09 | 21 mm | 27.5 mm | 3 mm | 310 g/m | 85 mm | 8.5 bar | 25.5 bar | 9 m h2o | 7.5 mm | right | 1 mm | 30 m | |
| PVCHSE017-10 | 22 mm | 29.4 mm | 3.7 mm | 400 g/m | 88 mm | 8.5 bar | 25.5 bar | 9 m h2o | 7.5 mm | right | 1 mm | 30 m | |
| PVCHSE017-11 | 1 inch | 25 mm | 33 mm | 4 mm | 520 g/m | 100 mm | 8.5 bar | 25.5 bar | 9 m h2o | 7.5 mm | right | 1 mm | 30 m |
| PVCHSE017-12 | 30 mm | 38.4 mm | 4.2 mm | 630 g/m | 120 mm | 8 bar | 24 bar | 9 m h2o | 8 mm | right | 1 mm | 30 m | |
| PVCHSE017-13 | 1 1/4 inch | 32 mm | 40.4 mm | 4.2 mm | 660 g/m | 128 mm | 8 bar | 24 bar | 9 m h2o | 8 mm | right | 1 mm | 30 m |
| PVCHSE017-14 | 35 mm | 43.6 mm | 4.3 mm | 750 g/m | 140 mm | 8 bar | 24 bar | 9 m h2o | 8.5 mm | right | 1.2 mm | 30 m | |
| PVCHSE017-15 | 1 1/2 inch | 38 mm | 47 mm | 4.5 mm | 800 g/m | 152 mm | 8 bar | 24 bar | 9 m h2o | 8.5 mm | right | 1.2 mm | 30 m |
| PVCHSE017-16 | 40 mm | 49.6 mm | 4.8 mm | 950 g/m | 160 mm | 8 bar | 24 bar | 9 m h2o | 8.5 mm | right | 1.2 mm | 30 m | |
| PVCHSE017-17 | 1 3/4 inch | 45 mm | 54.8 mm | 4.9 mm | 1150 g/m | 180 mm | 8 bar | 24 bar | 9 m h2o | 9.5 mm | right | 1.5 mm | 30 m |
| PVCHSE017-18 | 2 inch | 50 mm | 60.8 mm | 5.4 mm | 1300 g/m | 200 mm | 6 bar | 18 bar | 9 m h2o | 9.5 mm | right | 1.5 mm | 30 m |
| PVCHSE017-19 | 51 mm | 61.8 mm | 5.4 mm | 1330 g/m | 204 mm | 6 bar | 18 bar | 9 m h2o | 9.5 mm | right | 1.5 mm | 30 m | |
| PVCHSE017-20 | 55 mm | 66 mm | 5.5 mm | 1500 g/m | 220 mm | 5.5 bar | 16.5 bar | 9 m h2o | 9.5 mm | right | 1.5 mm | 30 m | |
| PVCHSE017-21 | 60 mm | 72 mm | 6 mm | 1750 g/m | 240 mm | 5.5 bar | 16.5 bar | 9 m h2o | 10.5 mm | right | 1.5 mm | 30 m | |
| PVCHSE017-22 | 2 1/2 inch | 63 mm | 74 mm | 5.5 mm | 1800 g/m | 252 mm | 5.5 bar | 16.5 bar | 9 m h2o | 10.5 mm | right | 1.5 mm | 30 m |
| PVCHSE017-23 | 65 mm | 77, 2 mm | 6.1 mm | 1900 g/m | 260 mm | 5 bar | 15 bar | 9 m h2o | 10.5 mm | right | 1.5 mm | 30 m | |
| PVCHSE017-24 | 70 mm | 83.4 mm | 6.7 mm | 2100 g/m | 280 mm | 4.5 bar | 13.5 bar | 8.5 m h2o | 12.5 mm | right | 1.8 mm | 30 m | |
| PVCHSE017-25 | 75 mm | 88.4 mm | 6.7 mm | 2250 g/m | 300 mm | 4.5 bar | 13.5 bar | 8.5 m h2o | 12.5 mm | right | 1.8 mm | 30 m | |
| PVCHSE017-26 | 3 inch | 76 mm | 89.6 mm | 6.8 mm | 2300 g/m | 304 mm | 4 bar | 12 bar | 8.5 m h2o | 12.5 mm | right | 1.8 mm | 30 m |
| PVCHSE017-27 | 80 mm | 92.6 mm | 6.3 mm | 2500 g/m | 320 mm | 3.5 bar | 10.5 bar | 8.5 m h2o | 14 mm | right | 1.8 mm | 30 m | |
| PVCHSE017-28 | 89 mm | 102 mm | 6.5 mm | 2900 g/m | 356 mm | 3.5 bar | 10.5 bar | 8.5 m h2o | 14 mm | right | 1.8 mm | 30 m | |
| PVCHSE017-29 | 3 1/2 inch | 90 mm | 103 mm | 6.5 mm | 2900 g/m | 360 mm | 3.5 bar | 10.5 bar | 8.5 m h2o | 14 mm | right | 1.8 mm | 30 m |
| PVCHSE017-30 | 100 mm | 116 mm | 8 mm | 3650 g/m | 400 mm | 2.5 bar | 7.5 bar | 8.5 m h2o | 15 mm | right | 2.5 mm | 30 m | |
| PVCHSE017-31 | 4 inch | 102 mm | 117 mm | 7.5 mm | 3700 g/m | 408 mm | 2.5 bar | 7.5 bar | 8.5 m h2o | 15 mm | right | 2.5 mm | 30 m |
| PVCHSE017-32 | 105 mm | 121 mm | 8 mm | 3850 g/m | 420 mm | 2.5 bar | 7.5 bar | 8.5 m h2o | 16 mm | right | 2.5 mm | 30 m | |
| PVCHSE017-33 | 110 mm | 126 mm | 8 mm | 3950 g/m | 440 mm | 2.5 bar | 7.5 bar | 8 m h2o | 16 mm | right | 2.5 mm | 20 m | |
| PVCHSE017-34 | 120 mm | 136 mm | 8 mm | 4300 g/m | 480 mm | 2.5 bar | 7.5 bar | 8 m h2o | 16 mm | right | 2.5 mm | 20 m | |
| PVCHSE017-35 | 125 mm | 141.4 mm | 8.2 mm | 4600 g/m | 500 mm | 2.5 bar | 7.5 bar | 8 m h2o | 16 mm | right | 2.5 mm | 20 m | |
| PVCHSE017-36 | 5 inch | 127 mm | 143.4 mm | 8.2 mm | 4700 g/m | 508 mm | 2.5 bar | 7.5 bar | 8 m h2o | 16 mm | right | 2.5 mm | 20 m |
| PVCHSE017-37 | 150 mm | 169.4 mm | 9.7 mm | 6500 g/m | 600 mm | 2 bar | 6 bar | 8 m h2o | 16 mm | right | 2.5 mm | 20 m | |
| PVCHSE017-38 | 6 inch | 152 mm | 170.4 mm | 9.2 mm | 6600 g/m | 608 mm | 2 bar | 6 bar | 8 m h2o | 18 mm | right | 2.5 mm | 20 m |
| PVCHSE017-39 | 8 inch | 203 mm | 223 mm | 10 mm | 9000 g/m | 812 mm | 1.5 bar | 4.5 bar | 8 m h2o | 18 mm | right | 2.5 mm | 10 m |
Iberflex
SKU: PVCHSE017

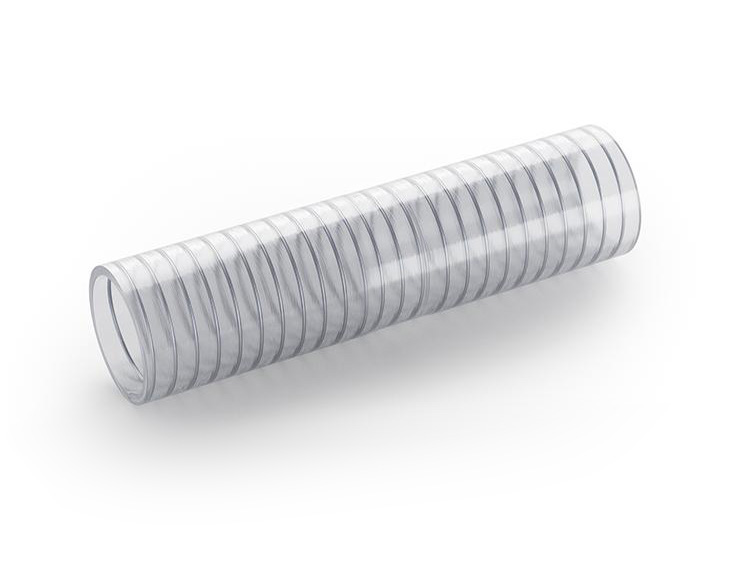

PVC hose with embedded reduced pitch galvanised steel spiral. Designed for both suction and delivery of food liquids.
| Product Code: | PVCHSE017 |
|---|
