Oregon Pu P Est Antistatico

SKU: PVCHSE055

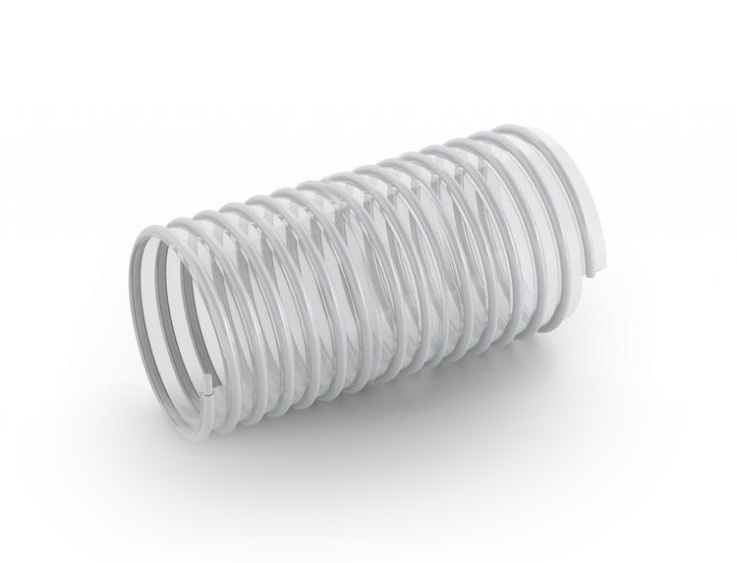

Polyurethane (PU) Polyester hose with PVC spiral and copper wire for antistatic rendering. Designed for; transport, suction and delivery of abrasive materials

Product Code:PVCHSE055
Ø I.D.:
Ø O.D.:
Wall Thickness:
Total Thickness:
Weight:
Bending Radius:
Working Pressure 1:3 23°C:
Bursting Pressure 23°C:
Vacuum 23°c:3 m h2o
Spiral Pitch:
Spiral Direction:right
Coil Length:20 m
£18.36 per coil (ex. VAT)
£22.03 (incl. VAT)
Product CodeØ I.D.Ø I.D.Ø O.D.Wall ThicknessTotal ThicknessWeightBending RadiusWorking Pressure 1:3 23°CBursting Pressure 23°CVacuum 23°cSpiral PitchSpiral DirectionCoil Length
PVCHSE055-0140 mm47 mm0.7 mm3.5 mm420 g/m80 mm0.4 bar1.2 bar3 m h2o8.3 mmright20 m
PVCHSE055-022 inch50 mm58 mm0.8 mm4 mm550 g/m100 mm0.4 bar1.2 bar3 m h2o10.5 mmright20 m
PVCHSE055-0360 mm69 mm0.8 mm4.5 mm630 g/m120 mm0.4 bar1.2 bar3 m h2o11.3 mmright20 m
PVCHSE055-0470 mm80 mm0.9 mm5 mm850 g/m140 mm0.3 bar0.9 bar3 m h2o13.2 mmright20 m
PVCHSE055-053 inch76 mm86.2 mm0.9 mm5 mm900 g/m150 mm0.3 bar0.9 bar3 m h2o13.2 mmright20 m
PVCHSE055-0680 mm90.5 mm0.9 mm5.2 mm950 g/m160 mm0.3 bar0.9 bar3 m h2o14 mmright20 m
PVCHSE055-073 1/2 inch90 mm101 mm0.9 mm5.5 mm1050 g/m180 mm0.2 bar0.6 bar3 m h2o14.5 mmright20 m
PVCHSE055-08100 mm111 mm1 mm5.5 mm1150 g/m200 mm0.2 bar0.6 bar3 m h2o15 mmright20 m
