| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Spiral Pitch | Vacuum 23°c | Spiral Direction | Coil Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE044-01 | 1 inch | 25 mm | 32.1 mm | 3.6 mm | 400 g/m | 100 mm | 8 bar | 24 bar | 7 mm | 7 m h2o | right | 30/50 m |
| PVCHSE044-02 | 42 mm | 50 mm | 4.1 mm | 750 g/m | 160 mm | 7 bar | 21 bar | 6.6 mm | 7 m h2o | right | 30/50 m | |
| PVCHSE044-03 | 43 mm | 50 mm | 3.6 mm | 680 g/m | 170 mm | 7 bar | 21 bar | 6.8 mm | 7 m h2o | right | 30/50 m | |
| PVCHSE044-04 | 2 inch | 50 mm | 59 mm | 4.5 mm | 1000 g/m | 200 mm | 6 bar | 18 bar | 7 mm | 7 m h2o | right | 30/50 m |
| PVCHSE044-05 | 51 mm | 60 mm | 4.6 mm | 1000 g/m | 204 mm | 5.5 bar | 16.5 bar | 7 mm | 7 m h2o | right | 30/50 m | |
| PVCHSE044-06 | 55 mm | 63 mm | 4.1 mm | 1000 g/m | 220 mm | 5 bar | 15 bar | 7.5 mm | 7 m h2o | right | 30/50 m |

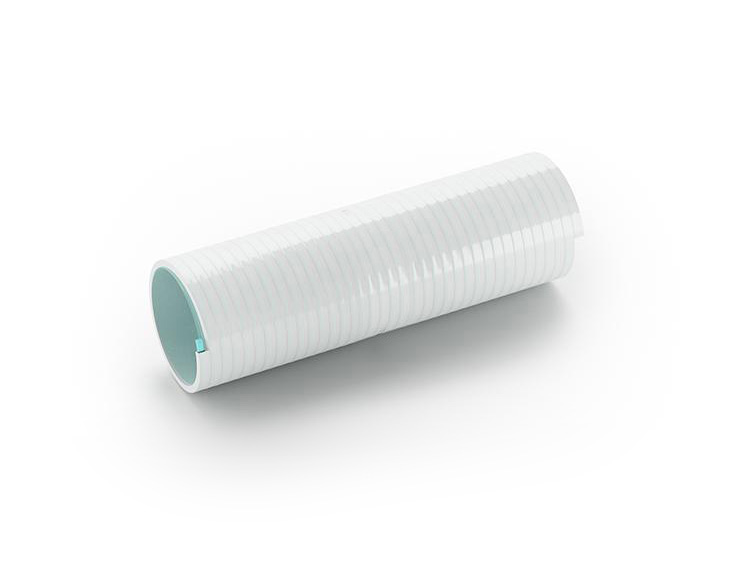

Quadra Pool
SKU: PVCHSE044
PVC hose with square section rigid PVC spiral, liner in HAYCLOR. Designed for both the suction and delivery of liquids for supply and pool recirculation.
