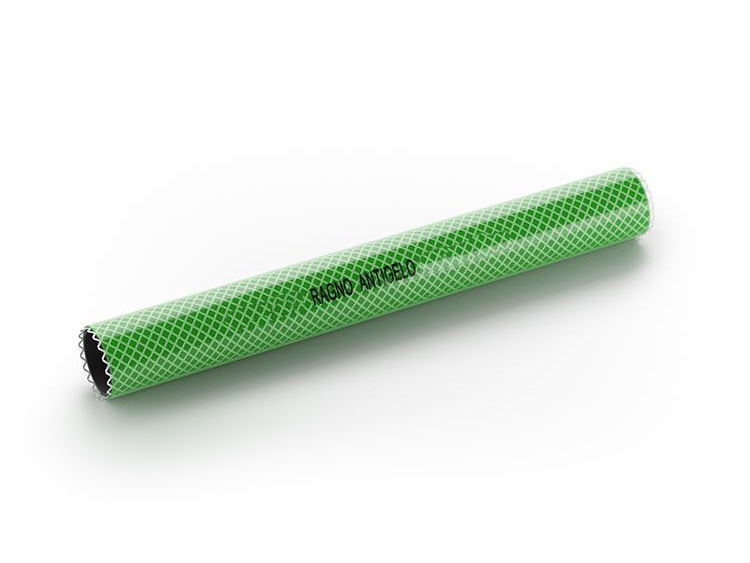

Ragno Antigelo

SKU: PVCHSE092

Soft PVC hose with polyester yarn reinforcement. Designed for the delivery of water in agriculture and flower-growing.

Product Code:	PVCHSE092

Size Variants

Product Code	Ø I.D.	Ø I.D.	Ø O.D.	Total Thickness	Weight	Bending Radius	Working Pressure 1:3 23°C	Bursting Pressure 23°C	Coil Length
PVCHSE092-01	3/8 inch	10 mm	15 mm	2.5 mm	125 g/m	54 mm	8 bar	24 bar	50 m
PVCHSE092-02		12 mm	16 mm	2 mm	110 g/m	90 mm	6 bar	18 bar	50 m
PVCHSE092-03	1/2 inch	13 mm	18 mm	2.5 mm	155 g/m	64 mm	8 bar	24 bar	50 m
PVCHSE092-04	1/2 inch	13 mm	19 mm	3 mm	180 g/m	78 mm	8 bar	24 bar	50 m
PVCHSE092-05		15 mm	18.5 mm	1.75 mm	125 g/m	52 mm	6 bar	18 bar	50 m
PVCHSE092-06	5/8 inch	16 mm	21 mm	2.5 mm	190 g/m	96 mm	8 bar	24 bar	50 m
PVCHSE092-07	5/8 inch	16 mm	22 mm	3 mm	230 g/m	90 mm	8 bar	24 bar	50 m
PVCHSE092-08		18 mm	23.4 mm	2.7 mm	230 g/m	-	6 bar	18 bar	50 m
PVCHSE092-09	3/4 inch	19 mm	25 mm	3 mm	275 g/m	-	7 bar	21 bar	50 m
PVCHSE092-10	3/4 inch	19 mm	26 mm	3.5 mm	310 g/m	105 mm	7 bar	21 bar	50 m
PVCHSE092-11		22 mm	29 mm	3.5 mm	370 g/m	-	7 bar	21 bar	50 m
PVCHSE092-12	1 inch	25 mm	32 mm	3.5 mm	400 g/m	-	6 bar	18 bar	50 m
PVCHSE092-13	1 inch	25 mm	33 mm	4 mm	460 g/m	310 mm	6 bar	18 bar	50 m
PVCHSE092-14		30 mm	38 mm	4 mm	560 g/m	-	6 bar	18 bar	50 m
PVCHSE092-15		35 mm	45 mm	5 mm	700 g/m	-	5 bar	15 bar	50 m
PVCHSE092-16		40 mm	50 mm	5 mm	840 g/m	525 mm	4 bar	12 bar	50 m
PVCHSE092-17	2 inch	50 mm	60 mm	5 mm	1300 g/m	-	4 bar	12 bar	25 m
