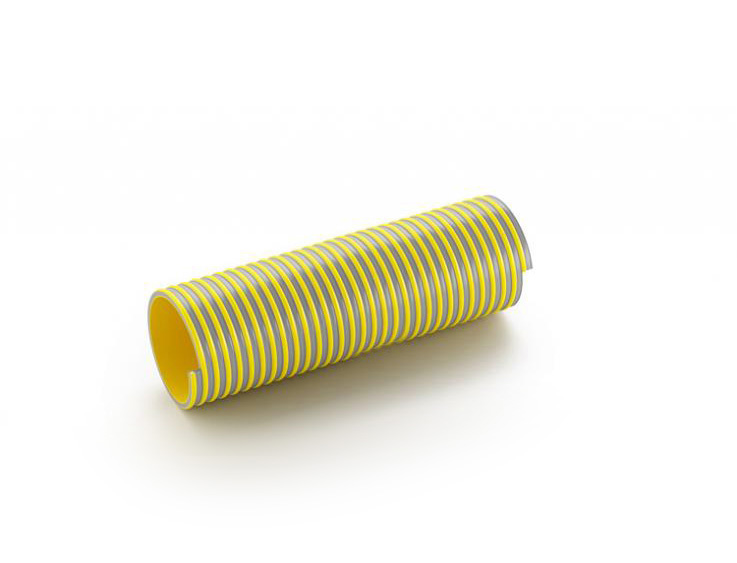

Super Arizona Pu


Soft PVC hose with PU lining and rigid PVC spiral. Designed for both the suction and delivery of abrasive materials.

Product Code:PVCHSE037
Ø I.D.:
Ø O.D.:
Liner Thickness:
Total Thickness:
Bending Radius:
Working Pressure 1:3 23°C:
Bursting Pressure 23°C:
Vacuum 23°c:9 m h2o
Spiral Pitch:
Spiral Direction:right
Coil Length:
£21.09 per coil (ex. VAT)
£25.31 (incl. VAT)
Product CodeØ I.D.Ø I.D.Ø O.D.Liner ThicknessTotal ThicknessWeightBending RadiusWorking Pressure 1:3 23°CBursting Pressure 23°CVacuum 23°cSpiral PitchSpiral DirectionCoil Length
PVCHSE037-011 1/4 inch32 mm40.8 mm0.8 mm4.4 mm600 g/m130 mm6 bar18 bar9 m h2o8.3 mmright50 m
PVCHSE037-021 1/2 inch38 mm47.7 mm0.9 mm4.8 mm700 g/m150 mm6 bar18 bar9 m h2o8 mmright50 m
PVCHSE037-031 3/4 inch45 mm55 mm0.9 mm5 mm900 g/m180 mm5 bar15 bar9 m h2o9.5 mmright50 m
PVCHSE037-042 inch51 mm61.2 mm0.9 mm5 mm1050 g/m200 mm5 bar15 bar9 m h2o10 mmright50 m
PVCHSE037-052 1/2 inch63 mm74.5 mm0.9 mm5.5 mm1390 g/m250 mm4 bar12 bar9 m h2o11 mmright50 m
PVCHSE037-063 inch76 mm89.6 mm1.2 mm6.7 mm1900 g/m300 mm4 bar12 bar9 m h2o12 mmright30 m
PVCHSE037-073 1/2 inch89 mm104.1 mm1.2 mm7.1 mm2250 g/m360 mm3 bar9 bar9 m h2o13.5 mmright30 m
PVCHSE037-084 inch102 mm118.6 mm1.2 mm8.5 mm3100 g/m400 mm3 bar9 bar9 m h2o14.5 mmright30 m
PVCHSE037-095 inch127 mm146 mm1.4 mm9.5 mm4450 g/m510 mm2.5 bar7.5 bar9 m h2o17 mmright20 m
PVCHSE037-106 inch152 mm174.4 mm1.4 mm11 mm6000 g/m610 mm2 bar6 bar9 m h2o19 mmright20 m
