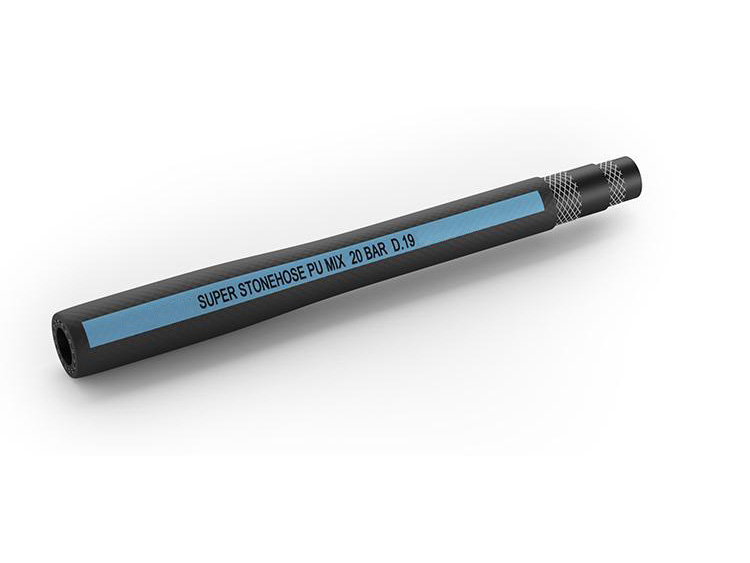

Super Stone Hose (4 X 15)

SKU: PVCHSE124

Plasticised PVC hose with a polyester yarn reinforcement and outer cover made of a PVC-PU compound. Designed for the passage of air under pressure.

Product Code:PVCHSE124
Ø I.D.:
Ø O.D.:
Total Thickness:
Weight:
Bending Radius:
Working Pressure 1:3 23°C:20 bar
Working Pressure 40°C:16 bar
Working Pressure 60°C:12 bar
Bursting Pressure 23°C:60 bar
Coil Length:60 m
£0.00 per coil (ex. VAT)
£0.00 (incl. VAT)
Product CodeØ I.D.Ø I.D.Ø O.D.Total ThicknessWeightBending RadiusWorking Pressure 1:3 23°CWorking Pressure 40°CWorking Pressure 60°CBursting Pressure 23°CCoil Length
PVCHSE124-011/2 inch13 mm22 mm4.3 mm350 g/m50 mm20 bar16 bar12 bar60 bar60 m
PVCHSE124-025/8 inch15 mm23 mm4 mm310 g/m60 mm20 bar16 bar12 bar60 bar60 m
PVCHSE124-035/8 inch16 mm25.5 mm4.7 mm400 g/m60 mm20 bar16 bar12 bar60 bar60 m
PVCHSE124-043/4 inch19 mm27 mm4 mm390 g/m80 mm20 bar16 bar12 bar60 bar60 m
PVCHSE124-053/4 inch19 mm30 mm5.5 mm520 g/m70 mm20 bar16 bar12 bar60 bar60 m
PVCHSE124-061 inch25 mm35 mm5 mm600 g/m120 mm20 bar16 bar12 bar60 bar60 m
PVCHSE124-071 inch25 mm37 mm6 mm730 g/m100 mm20 bar16 bar12 bar60 bar60 m
PVCHSE124-081 1/4 inch32 mm44 mm6 mm850 g/m150 mm20 bar16 bar12 bar60 bar60 m
