Superflex Pu Hlr As Food

SKU: PVCHSE126

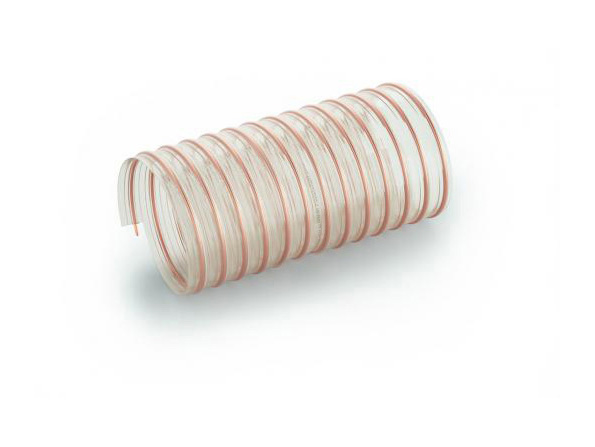

Polyurethane polyether hose with a copper-plated steel spiral. Designed for the suction and transportation of; dusts, chips and abrasive materials.

Product Code:PVCHSE126
Ø O.D.:
Wall Thickness:0,9 mm
Weight:
Bending Radius:
Working Pressure 1:3 23°C:
Vacuum 23°c:
Spiral Pitch:
Coil Length:15 m
£29.04 per coil (ex. VAT)
£34.85 (incl. VAT)
Product CodeØ I.D.Ø O.D.Wall ThicknessWeightBending RadiusWorking Pressure 1:3 23°CVacuum 23°cSpiral PitchCoil Length
PVCHSE126-0130 mm35 mm0,9 mm340 g/m60 mm1,2 bar5.5 m h2o8 mm15 m
PVCHSE126-0232 mm37 mm0,9 mm350 g/m65 mm1,20 bar5.4 m h2o8 mm15 m
PVCHSE126-0340 mm45 mm0,9 mm450 g/m80 mm0,80 bar5 m h2o8.5 mm15 m
PVCHSE126-0445 mm50 mm0,9 mm480 g/m90 mm0,75 bar4.8 m h2o9.5 mm15 m
PVCHSE126-0550 mm55 mm0,9 mm520 g/m100 mm0,65 bar4.2 m h2o9.5 mm15 m
PVCHSE126-0655 mm60 mm0,9 mm560 g/m110 mm0,60 bar3.2 m h2o9.5 mm15 m
PVCHSE126-0760 mm65 mm0,9 mm570 g/m120 mm0,60 bar2.8 m h2o10.5 mm15 m
PVCHSE126-0863 mm68 mm0,9 mm610 g/m125 mm0,55 bar2.4 m h2o10.5 mm15 m
PVCHSE126-0970 mm70.5 mm0,9 mm660 g/m140 mm0,50 bar2.3 m h2o12.5 mm15 m
PVCHSE126-1076 mm81.5 mm0,9 mm800 g/m155 mm0,48 bar2 m h2o12.5 mm15 m
PVCHSE126-1180 mm86 mm0,9 mm800 g/m160 mm0,45 bar1.8 m h2o14 mm15 m
PVCHSE126-1290 mm96 mm0,9 mm860 g/m180 mm0,40 bar1.4 m h2o14 mm15 m
PVCHSE126-13100 mm107 mm0,9 mm1000 g/m200 mm0,35 bar1.3 m h2o15 mm15 m
PVCHSE126-14120 mm127 mm0,9 mm1020 g/m240 mm0,30 bar1.2 m h2o16 mm15 m
PVCHSE126-15130 mm137 mm0,9 mm1200 g/m260 mm0,25 bar0.9 m h2o16 mm15 m
PVCHSE126-16140 mm147 mm0,9 mm1260 g/m280 mm0,20 bar0.9 m h2o16 mm15 m
PVCHSE126-17150 mm160 mm0,9 mm1550 g/m300 mm0,20 bar0.8 m h2o17 mm15 m
PVCHSE126-18160 mm168 mm0,9 mm1650 g/m320 mm0,20 bar0.7 m h2o17 mm15 m
PVCHSE126-19180 mm190 mm0,9 mm1700 g/m360 mm0,15 bar0.5 m h2o20 mm15 m
PVCHSE126-20200 mm211 mm0,9 mm1900 g/m400 mm0,10 bar0.4 m h2o20 mm15 m
PVCHSE126-21250 mm261 mm0,9 mm2300 g/m500 mm0,08 bar0.3 m h2o22 mm15 m
PVCHSE126-22300 mm311 mm0,9 mm3000 g/m600 mm0,04 bar0.2 m h2o28 mm15 m
