Superflex Pu R

SKU: PVCHSE074

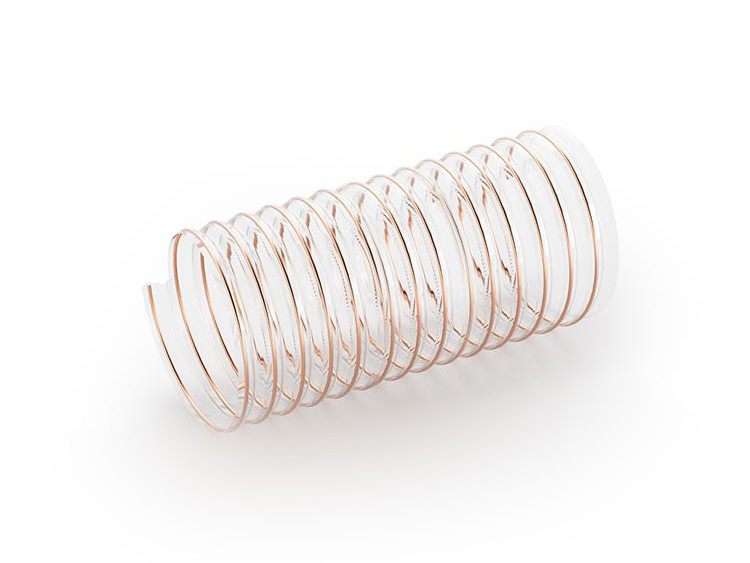

Polyurethane (PU) hose with copper-plated steel spiral. Designed for both the suction and transportation of dusts, chips and abrasive material. On demand from Ø 60 available in the self-extinguishing version according to DIN 4102-B1.

Product Code:PVCHSE074
Ø I.D.:
Ø O.D.:
Wall Thickness:
Weight:
Bending Radius:
Working Pressure 1:3 23°C:
Vacuum 23°c:
Spiral Pitch:
Spiral Direction:left
Ø Spiral:
Coil Length:
£10.14 per coil (ex. VAT)
£12.17 (incl. VAT)
Product CodeØ I.D.Ø I.D.Ø O.D.Wall ThicknessWeightBending RadiusWorking Pressure 1:3 23°CVacuum 23°cSpiral PitchSpiral DirectionØ SpiralCoil Length
PVCHSE074-0130 mm35 mm0.5 mm140 g/m30 mm2 bar5.5 m h2o10 mmleft1 mm30 m
PVCHSE074-0235 mm40 mm0.5 mm160 g/m35 mm1.8 bar5 m h2o10 mmleft1 mm30 m
PVCHSE074-031 1/2 inch38 mm43 mm0.5 mm180 g/m38 mm1.5 bar4.8 m h2o10 mmleft1 mm30 m
PVCHSE074-0440 mm45 mm0.5 mm200 g/m40 mm1.4 bar4.5 m h2o10 mmleft1 mm30 m
PVCHSE074-051 3/4 inch45 mm50 mm0.5 mm220 g/m45 mm1.3 bar4 m h2o10 mmleft1 mm30 m
PVCHSE074-062 inch50 mm55 mm0.55 mm280 g/m50 mm1.2 bar3.5 m h2o12 mmleft1.2 mm30 m
PVCHSE074-0755 mm60 mm0.55 mm300 g/m55 mm1.1 bar3 m h2o12 mmleft1.2 mm30 m
PVCHSE074-0860 mm65 mm0.55 mm330 g/m60 mm1 bar3 m h2o12 mmleft1.2 mm30 m
PVCHSE074-092 1/2 inch63 mm68 mm0.55 mm350 g/m63 mm0.9 bar2.5 m h2o12 mmleft1.2 mm30 m
PVCHSE074-1070 mm77 mm0.6 mm420 g/m70 mm0.8 bar2.5 m h2o14 mmleft1.4 mm30 m
PVCHSE074-1175 mm82 mm0.6 mm440 g/m75 mm0.8 bar2 m h2o14 mmleft1.4 mm30 m
PVCHSE074-1280 mm87 mm0.6 mm480 g/m80 mm0.7 bar2 m h2o14 mmleft1.4 mm30 m
PVCHSE074-133 1/2 inch90 mm97 mm0.6 mm520 g/m90 mm0.7 bar2 m h2o14 mmleft1.4 mm30 m
PVCHSE074-14100 mm107 mm0.65 mm660 g/m100 mm0.6 bar1.5 m h2o16 mmleft1.6 mm30 m
PVCHSE074-15110 mm117 mm0.65 mm720 g/m110 mm0.6 bar1.5 m h2o16 mmleft1.6 mm30 m
PVCHSE074-16120 mm127 mm0.65 mm780 g/m120 mm0.5 bar1.5 m h2o16 mmleft1.6 mm30 m
PVCHSE074-17125 mm132 mm0.65 mm800 g/m125 mm0.5 bar1.5 m h2o16 mmleft1.6 mm30 m
PVCHSE074-18128 mm135 mm0.65 mm820 g/m128 mm0.5 bar1.5 m h2o16 mmleft1.6 mm30 m
PVCHSE074-19130 mm137 mm0.65 mm840 g/m130 mm0.5 bar1.5 m h2o16 mmleft1.6 mm30 m
PVCHSE074-20140 mm147 mm0.65 mm900 g/m140 mm0.5 bar1.5 m h2o16 mmleft1.6 mm30 m
PVCHSE074-21150 mm157 mm0.7 mm1100 g/m150 mm0.4 bar1 m h2o18 mmleft1.8 mm30 m
PVCHSE074-22160 mm167 mm0.7 mm1160 g/m160 mm0.4 bar1 m h2o18 mmleft1.8 mm30 m
PVCHSE074-23170 mm177 mm0.7 mm1240 g/m170 mm0.4 bar1 m h2o18 mmleft1.8 mm30 m
PVCHSE074-24173 mm179 mm0.7 mm1250 g/m173 mm0.4 bar1 m h2o18 mmleft1.8 mm30 m
PVCHSE074-25180 mm187 mm0.7 mm1300 g/m180 mm0.4 bar1 m h2o18 mmleft1.8 mm30 m
PVCHSE074-26200 mm207 mm0.7 mm1440 g/m200 mm0.3 bar1 m h2o18 mmleft1.8 mm30 m
PVCHSE074-27220 mm227 mm0.7 mm1580 g/m220 mm0.3 bar0.5 m h2o18 mmleft1.8 mm15 m
PVCHSE074-28227 mm235 mm0.7 mm1700 g/m227 mm0.3 bar0.5 m h2o18 mmleft1.8 mm15 m
PVCHSE074-29250 mm259 mm0.8 mm1880 g/m250 mm0.2 bar0.5 m h2o22 mmleft2 mm15 m
PVCHSE074-30280 mm289 mm0.8 mm2100 g/m280 mm0.2 bar0.5 m h2o22 mmleft2 mm15 m
PVCHSE074-31300 mm309 mm0.8 mm2250 g/m300 mm0.2 bar0.4 m h2o22 mmleft2 mm15 m
PVCHSE074-32325 mm334 mm0.8 mm2450 g/m325 mm0.2 bar0.4 m h2o22 mmleft2 mm15 m
PVCHSE074-33350 mm359 mm0.8 mm2600 g/m350 mm0.1 bar0.4 m h2o22 mmleft2 mm15 m
PVCHSE074-34400 mm409 mm0.8 mm3000 g/m400 mm0.1 bar0.4 m h2o22 mmleft2 mm15 m
