Termoflex 150°c Double

SKU: PVCHSE088

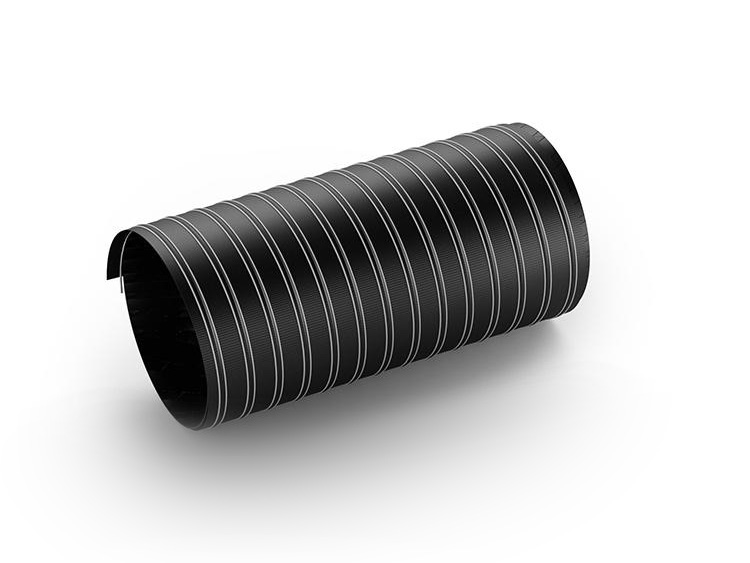

Hose made in neoprene coated fibreglass with a galvanised steel spiral embedded between two layers of neoprene. Designed for the suction of fumes and hot air.

Product Code:

Size Variants

Product Code	Ø I.D.	Ø O.D.	Weight	Bending Radius	Working Pressure 1:3 23°C	Bursting Pressure 23°C	Vacuum 23°c	Coil Length
PVCHSE088-01	51 mm	56 mm	360 g/m	51 mm	2.6 bar	7.8 bar	5.2 m h2o	4 m
PVCHSE088-02	63 mm	68 mm	485 g/m	63 mm	2.4 bar	7.2 bar	4.5 m h2o	4 m
PVCHSE088-03	70 mm	75 mm	540 g/m	70 mm	2.1 bar	6.3 bar	4.4 m h2o	4 m
PVCHSE088-04	76 mm	81 mm	580 g/m	76 mm	2.1 bar	6.3 bar	4.3 m h2o	4 m
PVCHSE088-05	83 mm	87 mm	630 g/m	83 mm	2.1 bar	6.3 bar	4.1 m h2o	4 m
PVCHSE088-06	89 mm	94 mm	690 g/m	89 mm	2 bar	6 bar	4 m h2o	4 m
PVCHSE088-07	102 mm	107 mm	770 g/m	102 mm	1.9 bar	5.7 bar	3.5 m h2o	4 m
PVCHSE088-08	114 mm	120 mm	845 g/m	114 mm	1.5 bar	4.5 bar	3 m h2o	4 m
PVCHSE088-09	121 mm	127 mm	885 g/m	121 mm	1.5 bar	4.5 bar	2.4 m h2o	4 m
PVCHSE088-10	127 mm	133 mm	925 g/m	127 mm	1.4 bar	4.2 bar	2.3 m h2o	4 m
PVCHSE088-11	140 mm	146 mm	1000 g/m	140 mm	1.3 bar	3.9 bar	2 m h2o	4 m
PVCHSE088-12	152 mm	158 mm	1200 g/m	152 mm	1.2 bar	3.6 bar	1.7 m h2o	4 m
PVCHSE088-13	178 mm	189 mm	1430 g/m	178 mm	1 bar	3 bar	1.2 m h2o	4 m
PVCHSE088-14	203 mm	209 mm	1650 g/m	203 mm	0.7 bar	2.1 bar	0.9 m h2o	4 m
PVCHSE088-15	254 mm	260 mm	2090 g/m	254 mm	0.5 bar	1.5 bar	0.7 m h2o	4 m
PVCHSE088-16	305 mm	311 mm	2610 g/m	305 mm	0.3 bar	0.9 bar	0.5 m h2o	4 m
