Termoflex 150°c

SKU: PVCHSE087

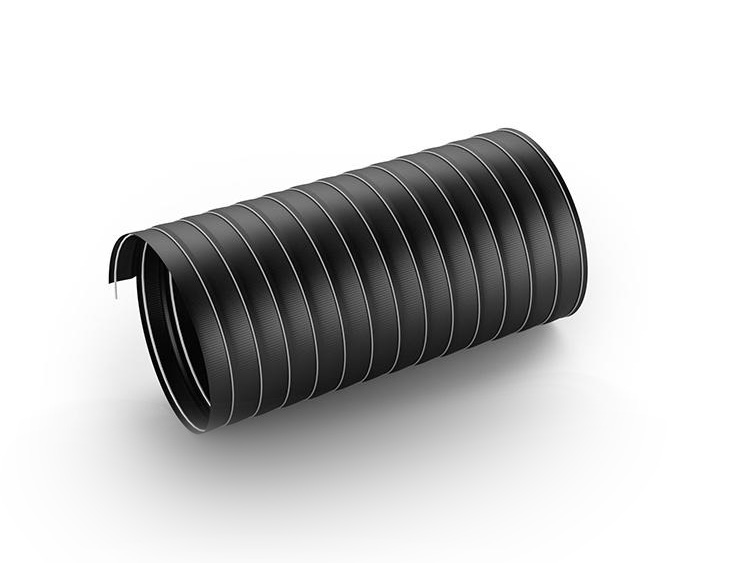

Hose made in neoprene coated fibreglass with a galvanised steel spiral. Designed for the suction of fumes and hot air.

Product Code:PVCHSE087
Ø O.D.:
Weight:
Bending Radius:
Working Pressure 1:3 23°C:
Bursting Pressure 23°C:
Vacuum 23°c:
Coil Length:4 m
£0.00 per coil (ex. VAT)
£0.00 (incl. VAT)
Product CodeØ I.D.Ø O.D.WeightBending RadiusWorking Pressure 1:3 23°CBursting Pressure 23°CVacuum 23°cCoil Length
PVCHSE087-0151 mm55 mm250 g/m26 mm1.2 bar3.6 bar4.4 m h2o4 m
PVCHSE087-0263 mm67 mm300 g/m32 mm1.1 bar3.3 bar4 m h2o4 m
PVCHSE087-0370 mm74 mm395 g/m35 mm1.1 bar3.3 bar3.5 m h2o4 m
PVCHSE087-0476 mm80 mm410 g/m38 mm1 bar3 bar3.5 m h2o4 m
PVCHSE087-0583 mm87 mm470 g/m42 mm1 bar3 bar3 m h2o4 m
PVCHSE087-0689 mm93 mm495 g/m45 mm0.9 bar2.7 bar3 m h2o4 m
PVCHSE087-07102 mm106 mm570 g/m51 mm0.9 bar2.7 bar2.6 m h2o4 m
PVCHSE087-08114 mm119 mm730 g/m57 mm0.8 bar2.4 bar2.1 m h2o4 m
PVCHSE087-09121 mm126 mm760 g/m61 mm0.8 bar2.4 bar1.9 m h2o4 m
PVCHSE087-10127 mm132 mm805 g/m64 mm0.8 bar2.4 bar1.7 m h2o4 m
PVCHSE087-11140 mm145 mm885 g/m70 mm0.8 bar2.4 bar1.5 m h2o4 m
PVCHSE087-12152 mm157 mm1050 g/m76 mm0.6 bar1.8 bar1.4 m h2o4 m
PVCHSE087-13178 mm183 mm1210 g/m89 mm0.6 bar1.8 bar1.1 m h2o4 m
PVCHSE087-14203 mm208 mm1380 g/m102 mm0.5 bar1.5 bar1.6 m h2o4 m
PVCHSE087-15254 mm259 mm1650 g/m127 mm0.4 bar1.2 bar0.45 m h2o4 m
PVCHSE087-16305 mm310 mm2000 g/m153 mm0.1 bar0.3 bar0.3 m h2o4 m
