Termoresistente Kll 125

SKU: PVCHSE085

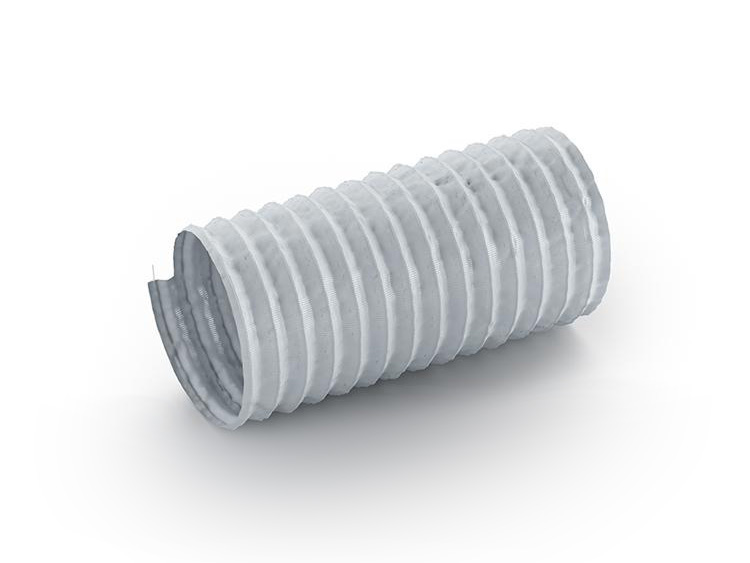

Hose made of a polyester textile covered in PVC, with a galvanised steel spiral between two layers of tissue. Designed for air-conditioning, suction of fumes and warm air.

Product Code:

PVCHSE085

Ø I.D.:

Ø O.D.:

Wall Thickness:

0.22 mm

Weight:

Bending Radius:

Working Pressure 1:3 23°C:

Vacuum 23°c:

Spiral Pitch:

Spiral Direction:

left

Ø Spiral:

Coil Length:

12 m

Product Code	Ø I.D.	Ø I.D.	Ø O.D.	Wall Thickness	Weight	Bending Radius	Working Pressure 1:3 23°C	Vacuum 23°c	Spiral Pitch	Spiral Direction	Ø Spiral	Coil Length
PVCHSE085-01		40 mm	44 mm	0.22 mm	85 g/m	20 mm	0.55 bar	1 m h2o	20 mm	left	0.8 mm	12 m
PVCHSE085-02	2 inch	51 mm	54 mm	0.22 mm	105 g/m	25 mm	0.5 bar	0.95 m h2o	20 mm	left	0.8 mm	12 m
PVCHSE085-03	2 1/2 inch	63 mm	66 mm	0.22 mm	130 g/m	31 mm	0.45 bar	0.9 m h2o	20 mm	left	0.8 mm	12 m
PVCHSE085-04		70 mm	73 mm	0.22 mm	145 g/m	35 mm	0.43 bar	0.85 m h2o	20 mm	left	0.8 mm	12 m
PVCHSE085-05	3 inch	76 mm	79 mm	0.22 mm	155 g/m	36 mm	0.4 bar	0.8 m h2o	20 mm	left	0.8 mm	12 m
PVCHSE085-06		82 mm	85 mm	0.22 mm	170 g/m	41 mm	0.38 bar	0.75 m h2o	20 mm	left	0.8 mm	12 m
PVCHSE085-07	3 1/2 inch	89 mm	92 mm	0.22 mm	180 g/m	44 mm	0.3 bar	0.7 m h2o	20 mm	left	0.8 mm	12 m
PVCHSE085-08	4 inch	102 mm	105 mm	0.22 mm	215 g/m	51 mm	0.25 bar	0.65 m h2o	25 mm	left	1 mm	12 m
PVCHSE085-09		108 mm	111 mm	0.22 mm	230 g/m	54 mm	0.23 bar	0.6 m h2o	25 mm	left	1 mm	12 m
PVCHSE085-10		114 mm	117 mm	0.22 mm	240 g/m	57 mm	0.21 bar	0.55 m h2o	25 mm	left	1 mm	12 m
PVCHSE085-11		121 mm	124 mm	0.22 mm	255 g/m	60 mm	0.2 bar	0.5 m h2o	25 mm	left	1 mm	12 m
PVCHSE085-12	5 inch	127 mm	130 mm	0.22 mm	265 g/m	63 mm	0.18 bar	0.45 m h2o	25 mm	left	1 mm	12 m
PVCHSE085-13		133 mm	136 mm	0.22 mm	280 g/m	66 mm	0.16 bar	0.4 m h2o	25 mm	left	1 mm	12 m
PVCHSE085-14		140 mm	143 mm	0.22 mm	295 g/m	70 mm	0.15 bar	0.38 m h2o	25 mm	left	1 mm	12 m
PVCHSE085-15	6 inch	152 mm	156 mm	0.22 mm	380 g/m	76 mm	0.14 bar	0.35 m h2o	32 mm	left	1.4 mm	12 m
PVCHSE085-16		160 mm	165 mm	0.22 mm	410 g/m	80 mm	0.12 bar	0.32 m h2o	32 mm	left	1.4 mm	12 m
PVCHSE085-17		165 mm	169 mm	0.22 mm	420 g/m	82 mm	0.12 bar	0.3 m h2o	32 mm	left	1.4 mm	12 m
PVCHSE085-18		178 mm	182 mm	0.22 mm	450 g/m	89 mm	0.1 bar	0.25 m h2o	32 mm	left	1.4 mm	12 m
PVCHSE085-19	8 inch	203 mm	207 mm	0.22 mm	510 g/m	101 mm	0.08 bar	0.2 m h2o	32 mm	left	1.4 mm	12 m
PVCHSE085-20	9 inch	228 mm	232 mm	0.22 mm	570 g/m	114 mm	0.06 bar	0.15 m h2o	32 mm	left	1.4 mm	12 m
PVCHSE085-21	10 inch	254 mm	258 mm	0.22 mm	640 g/m	127 mm	0.05 bar	0.12 m h2o	40 mm	left	1.6 mm	12 m
PVCHSE085-22		279 mm	283 mm	0.22 mm	700 g/m	139 mm	0.04 bar	0.1 m h2o	40 mm	left	1.6 mm	12 m
PVCHSE085-23	12 inch	304 mm	308 mm	0.22 mm	770 g/m	152 mm	0.03 bar	0.05 m h2o	40 mm	left	1.6 mm	12 m
PVCHSE085-24		330 mm	334 mm	0.22 mm	830 g/m	165 mm	0.02 bar	0.03 m h2o	40 mm	left	1.6 mm	12 m
PVCHSE085-25	14 inch	355 mm	359 mm	0.22 mm	890 g/m	177 mm	0.02 bar	0.02 m h2o	40 mm	left	1.6 mm	12 m
PVCHSE085-26	16 inch	406 mm	410 mm	0.22 mm	1030 g/m	203 mm	0.02 bar	0.01 m h2o	40 mm	left	1.6 mm	12 m
PVCHSE085-27	18 inch	457 mm	462 mm	0.22 mm	1300 g/m	228 mm	0.01 bar	0.0005 m h2o	40 mm	left	1.8 mm	12 m
PVCHSE085-28	20 inch	508 mm	513 mm	0.22 mm	1450 g/m	254 mm	0.01 bar	0.0004 m h2o	40 mm	left	1.8 mm	12 m
PVCHSE085-29	22 inch	558 mm	563 mm	0.22 mm	1580 g/m	279 mm	0.01 bar	0.0003 m h2o	40 mm	left	1.8 mm	12 m
PVCHSE085-30	25 inch	610 mm	615 mm	0.22 mm	1730 g/m	305 mm	0.01 bar	0.0002 m h2o	40 mm	left	1.8 mm	12 m
