Name: Termoresistente Pu 200°c
SKU: PVCHSE086
Availability: InStock

Termoresistente Pu 200°c

SKU: PVCHSE086

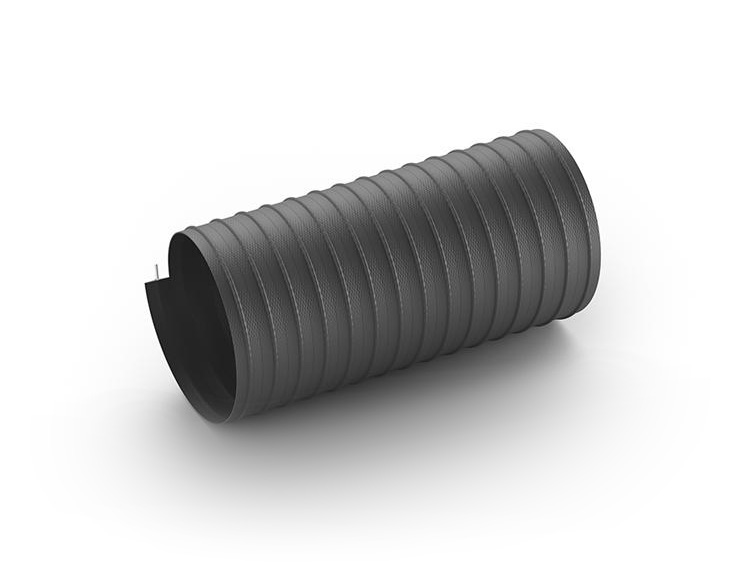

Hose made of polyester textile covered in PU with a galvanised steel spiral between two layers of tissue. Designed for both the suction and transportation of warm air.

Product Code:

Product Code	Ø I.D.	Ø I.D.	Ø O.D.	Weight	Bending Radius	Working Pressure 1:3 23°C	Vacuum 23°c	Spiral Pitch	Ø Spiral	Coil Length	Wall Thickness	Spiral Direction
PVCHSE086-01		40 mm	45 mm	185 g/m	40 mm	0.53 bar	0.98 m h2o	14 mm	1.2 mm	-	0.35 mm	left
PVCHSE086-02	2 inch	51 mm	56 mm	225 g/m	50 mm	0.5 bar	0.95 m h2o	14 mm	1.2 mm	12 m	0.35 mm	left
PVCHSE086-03	2 1/2 inch	63 mm	68 mm	275 g/m	60 mm	0.45 bar	0.9 m h2o	14 mm	1.2 mm	12 m	0.35 mm	left
PVCHSE086-04		70 mm	75 mm	300 g/m	70 mm	0.43 bar	0.85 m h2o	14 mm	1.2 mm	12 m	0.35 mm	left
PVCHSE086-05	3 inch	76 mm	81 mm	320 g/m	75 mm	0.4 bar	0.8 m h2o	14 mm	1.2 mm	12 m	0.35 mm	left
PVCHSE086-06		83 mm	88 mm	360 g/m	80 mm	0.38 bar	0.75 m h2o	14 mm	1.2 mm	12 m	0.35 mm	left
PVCHSE086-07	3 1/2 inch	89 mm	94 mm	385 g/m	90 mm	0.3 bar	0.7 m h2o	14 mm	1.2 mm	12 m	0.35 mm	left
PVCHSE086-08	4 inch	102 mm	107 mm	480 g/m	100 mm	0.25 bar	0.65 m h2o	16 mm	1.4 mm	12 m	0.35 mm	left
PVCHSE086-09		114 mm	119 mm	540 g/m	110 mm	0.21 bar	0.55 m h2o	16 mm	1.4 mm	12 m	0.35 mm	left
PVCHSE086-10		121 mm	126 mm	580 g/m	120 mm	0.2 bar	0.5 m h2o	16 mm	1.4 mm	12 m	0.35 mm	left
PVCHSE086-11	5 inch	127 mm	132 mm	600 g/m	125 mm	0.18 bar	0.45 m h2o	16 mm	1.4 mm	12 m	0.35 mm	left
PVCHSE086-12		133 mm	138 mm	620 g/m	130 mm	0.16 bar	0.4 m h2o	16 mm	1.4 mm	12 m	0.35 mm	left
PVCHSE086-13		140 mm	146 mm	660 g/m	140 mm	0.15 bar	0.38 m h2o	16 mm	1.4 mm	12 m	0.35 mm	left
PVCHSE086-14	6 inch	152 mm	158 mm	780 g/m	150 mm	0.14 bar	0.35 m h2o	18 mm	1.6 mm	12 m	0.35 mm	left
PVCHSE086-15		178 mm	184 mm	920 g/m	180 mm	0.1 bar	0.25 m h2o	18 mm	1.6 mm	12 m	0.35 mm	left
PVCHSE086-16	8 inch	203 mm	209 mm	1050 g/m	200 mm	0.08 bar	0.2 m h2o	18 mm	1.6 mm	12 m	0.35 mm	left
PVCHSE086-17		230 mm	235 mm	1350 g/m	230 mm	0.06 bar	0.15 m h2o	18 mm	1.8 mm	12 m	0.35 mm	left
PVCHSE086-18	10 inch	254 mm	261 mm	1500 g/m	250 mm	0.05 bar	0.12 m h2o	18 mm	1.8 mm	12 m	0.35 mm	left
PVCHSE086-19	12 inch	305 mm	312 mm	1800 g/m	300 mm	0.03 bar	0.1 m h2o	18 mm	1.8 mm	6 m	0.35 mm	left
PVCHSE086-20		315 mm	324 mm	1860 g/m	315 mm	0.02 bar	0.09 m h2o	22 mm	2 mm	-	0.35 mm	left
PVCHSE086-21		350 mm	360 mm	2060 g/m	350 mm	0.02 bar	0.08 m h2o	22 mm	2 mm	-	0.35 mm	left
PVCHSE086-22		400 mm	412 mm	2360 g/m	400 mm	0.02 bar	0.06 m h2o	22 mm	2 mm	-	0.35 mm	left

Termoresistente Pu 200°c
