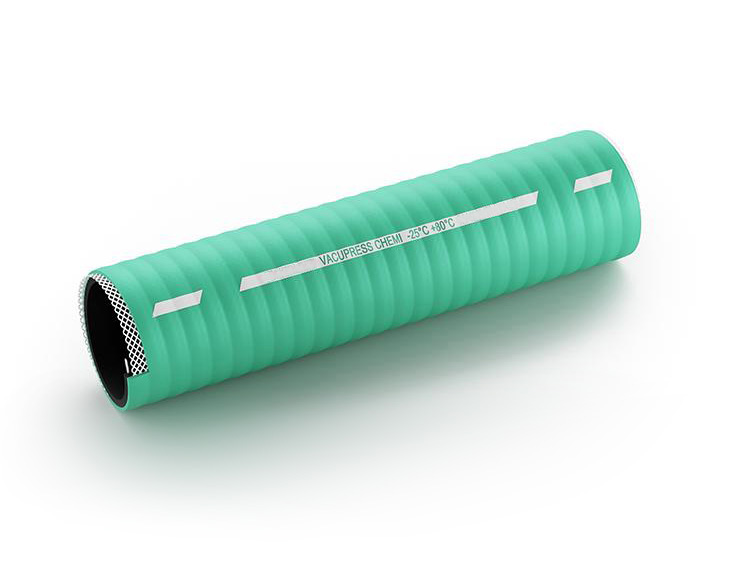

Vacupress Chemi

SKU: PVCHSE009

Multilayer thermoplastic rubber hose with embedded galvanised steel spiral and polyester yarn reinforcement. Designed for suction and delivery of aggressive liquids.

Product Code:PVCHSE009
Ø I.D.:
Ø O.D.:
Total Thickness:
Weight:
Bending Radius:
Working Pressure 1:3 23°C:
Working Pressure 1:4 23°C:
Working Pressure 60°C:
Bursting Pressure 23°C:
Vacuum 23°c:9 m h2o
Spiral Pitch:
Spiral Direction:right
Ø Spiral:
Coil Length:
£902.70 per coil (ex. VAT)
£1,083.24 (incl. VAT)
Product CodeØ I.D.Ø I.D.Ø O.D.Total ThicknessWeightBending RadiusWorking Pressure 1:3 23°CWorking Pressure 1:4 23°CWorking Pressure 60°CBursting Pressure 23°CVacuum 23°cSpiral PitchSpiral DirectionØ SpiralCoil Length
PVCHSE009-013/4 inch19 mm28 mm4.5 mm380 g/m70 mm15 bar10 bar8 bar45 bar9 m h2o8.5 mmright1 mm60 m
PVCHSE009-0222 mm31.5 mm4.5 mm450 g/m75 mm14 bar10 bar6 bar42 bar9 m h2o9 mmright1.2 mm60 m
PVCHSE009-031 inch25 mm35.5 mm5.25 mm580 g/m80 mm14 bar10 bar6 bar42 bar9 m h2o10 mmright1.4 mm60 m
PVCHSE009-0430 mm40.5 mm5.25 mm650 g/m85 mm10 bar8 bar6 bar30 bar9 m h2o10 mmright1.4 mm60 m
PVCHSE009-051 1/4 inch32 mm42.5 mm5.25 mm700 g/m90 mm10 bar8 bar6 bar30 bar9 m h2o10 mmright1.4 mm60 m
PVCHSE009-0635 mm47 mm6 mm850 g/m95 mm10 bar8 bar6 bar30 bar9 m h2o10 mmright1.4 mm60 m
PVCHSE009-071 1/2 inch38 mm50 mm6 mm920 g/m100 mm10 bar8 bar6 bar30 bar9 m h2o10.5 mmright1.4 mm30 m
PVCHSE009-0840 mm52 mm6 mm970 g/m110 mm10 bar8 bar6 bar30 bar9 m h2o11 mmright1.4 mm30 m
PVCHSE009-091 3/4 inch45 mm57 mm6 mm1100 g/m120 mm10 bar8 bar6 bar30 bar9 m h2o11 mmright1.4 mm30 m
PVCHSE009-102 inch50 mm63 mm6.5 mm1280 g/m130 mm10 bar8 bar5 bar30 bar9 m h2o11 mmright1.6 mm30 m
PVCHSE009-1153 mm66 mm6.5 mm1350 g/m140 mm10 bar8 bar5 bar30 bar9 m h2o11 mmright1.6 mm30 m
PVCHSE009-1260 mm73 mm6.5 mm1550 g/m160 mm9 bar7 bar4 bar27 bar9 m h2o11 mmright1.6 mm30 m
PVCHSE009-132 1/2 inch63 mm76 mm6.5 mm1600 g/m180 mm9 bar7 bar4 bar27 bar9 m h2o11 mmright1.6 mm30 m
PVCHSE009-143 inch76 mm91 mm7.5 mm2350 g/m230 mm8 bar6 bar4 bar24 bar9 m h2o13.5 mmright2 mm30 m
PVCHSE009-1580 mm95.5 mm7.5 mm2400 g/m250 mm8 bar6 bar4 bar24 bar9 m h2o14 mmright2 mm30 m
PVCHSE009-163 1/2 inch90 mm105.5 mm8 mm2750 g/m280 mm8 bar6 bar4 bar24 bar9 m h2o14 mmright2 mm30 m
PVCHSE009-174 inch102 mm118.5 mm8 mm3100 g/m310 mm7 bar5 bar3 bar21 bar9 m h2o14.5 mmright2 mm30 m
