Neoprene Sponge Cord

SKU: RSC001

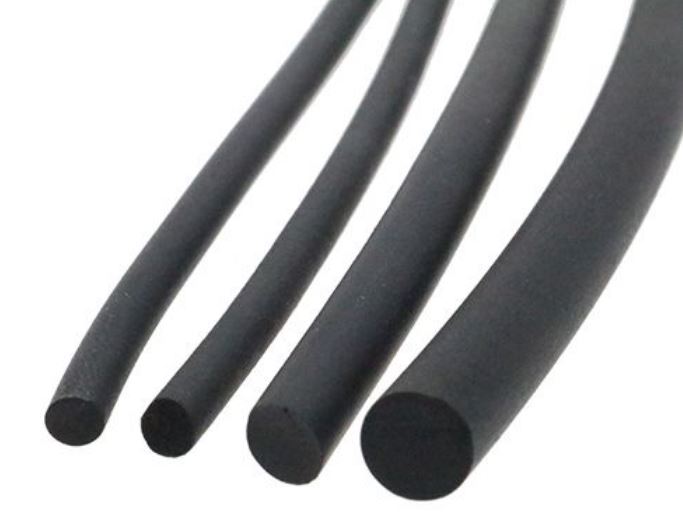

Neoprene sponge cord is available ex-stock in sizes ranging from 2.5mm to 25mm diameter.

Other sizes, polymers and even co-extrusions are available but usually involve minimum order quantities starting at thousands of metres for smaller diameters to hundreds of metres for larger diameters. Also you are not just limited to cords as almost any profile shape can be produced.

  • No tooling charges for cords
  • Coiled or cut to length
  • Can be glued or vulcanized joined

Profiles and cords can also be joined into rings, frames or formed seals with either glued or vulcanized joins. (Please note most tooling is free but there are tooling charges applicable for vulcanized joined and formed products)

Technical Specifications

Polymers available 4 extruded sponge types
Density (g/cm3) 0.35 – 0.65

Variant Availability

Product Code Diameter
(mm)
Tolerance
( ±mm)
Coil Size
(m)
Specific Gravity
(g/cm3)
RSC001-01 2.5 0.35 1000 0.4
RSC001-02 3 0.4 500 0.4
RSC001-03 4 0.4 500 0.35
RSC001-04 5 0.5 500 0.35
RSC001-05 6 0.5 500 0.35
RSC001-06 8 0.7 200 0.35
RSC001-07 9.5 0.7 200 0.35
RSC001-08 12 0.8 50 0.35
RSC001-09 13 0.8 50 0.35
RSC001-10 15 0.8 50 0.35
RSC001-11 19 1 20 0.35
RSC001-12 25 1 25 0.35

Additional Notes

Products must be ordered in the coil sizes listed above. Other sizes, polymers and even co-extrusions are available but usually involve minimum order quantities starting at thousands of metres for smaller diameters to hundreds of metres for larger diameters.
