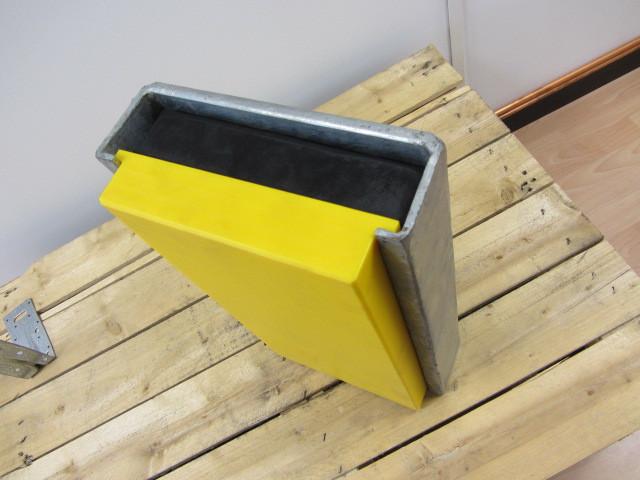

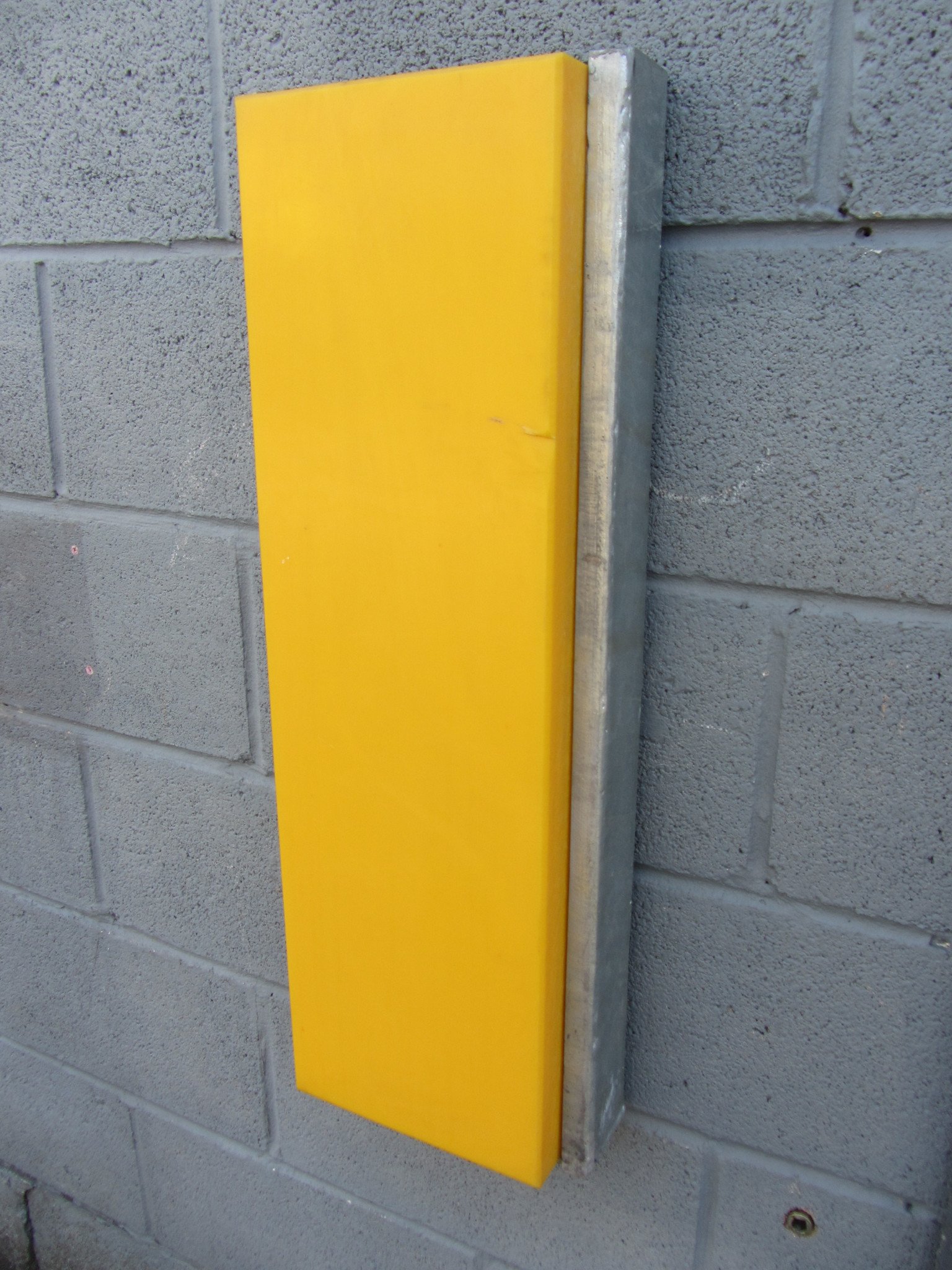

The WHDB22 Dock Bumper has a large impact area with no holes in the UHMWPE face plate for the back of the truck to snag on. The 50mm thick face can slide freely up and down in its steel cradle back plate.

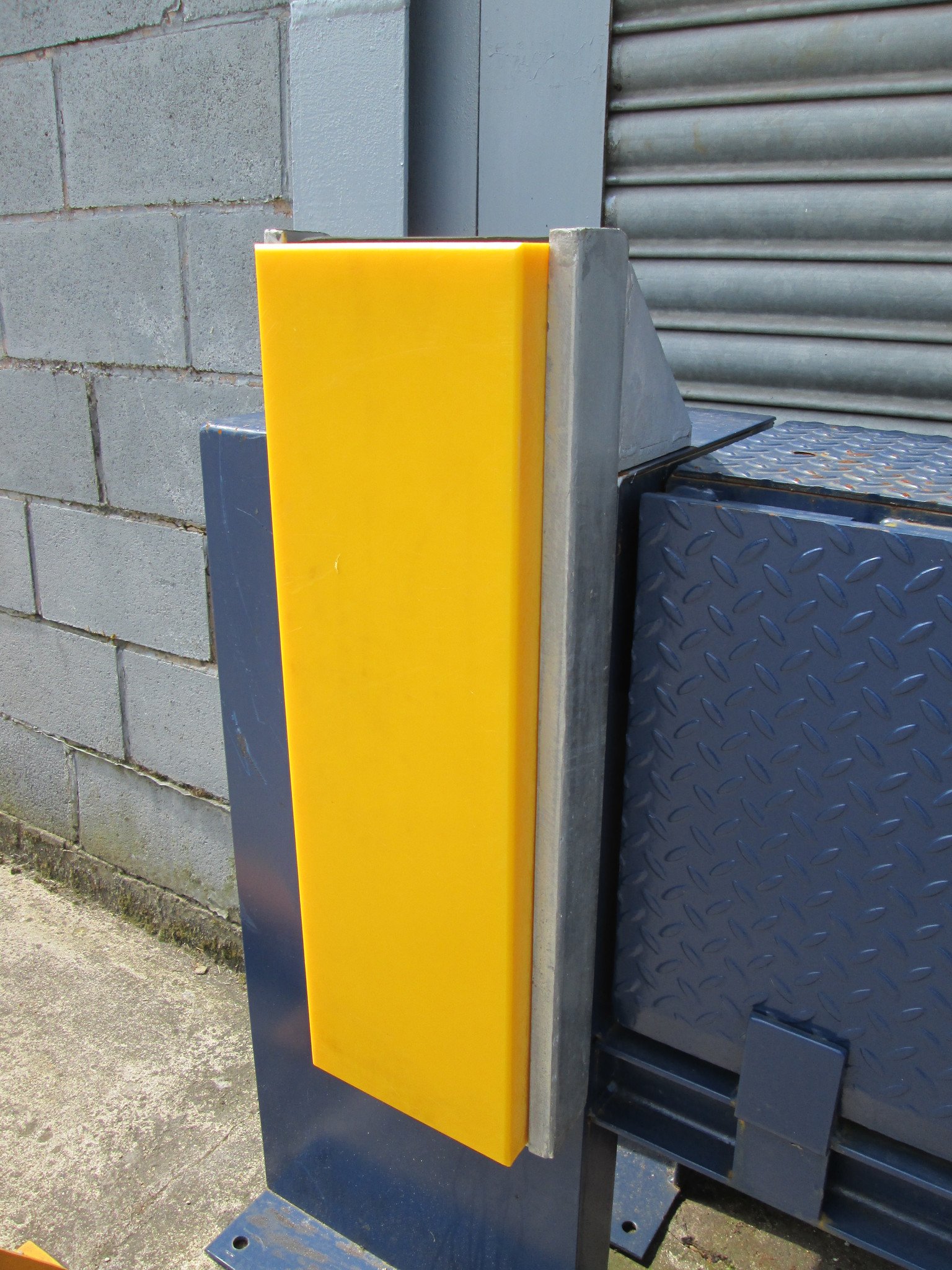

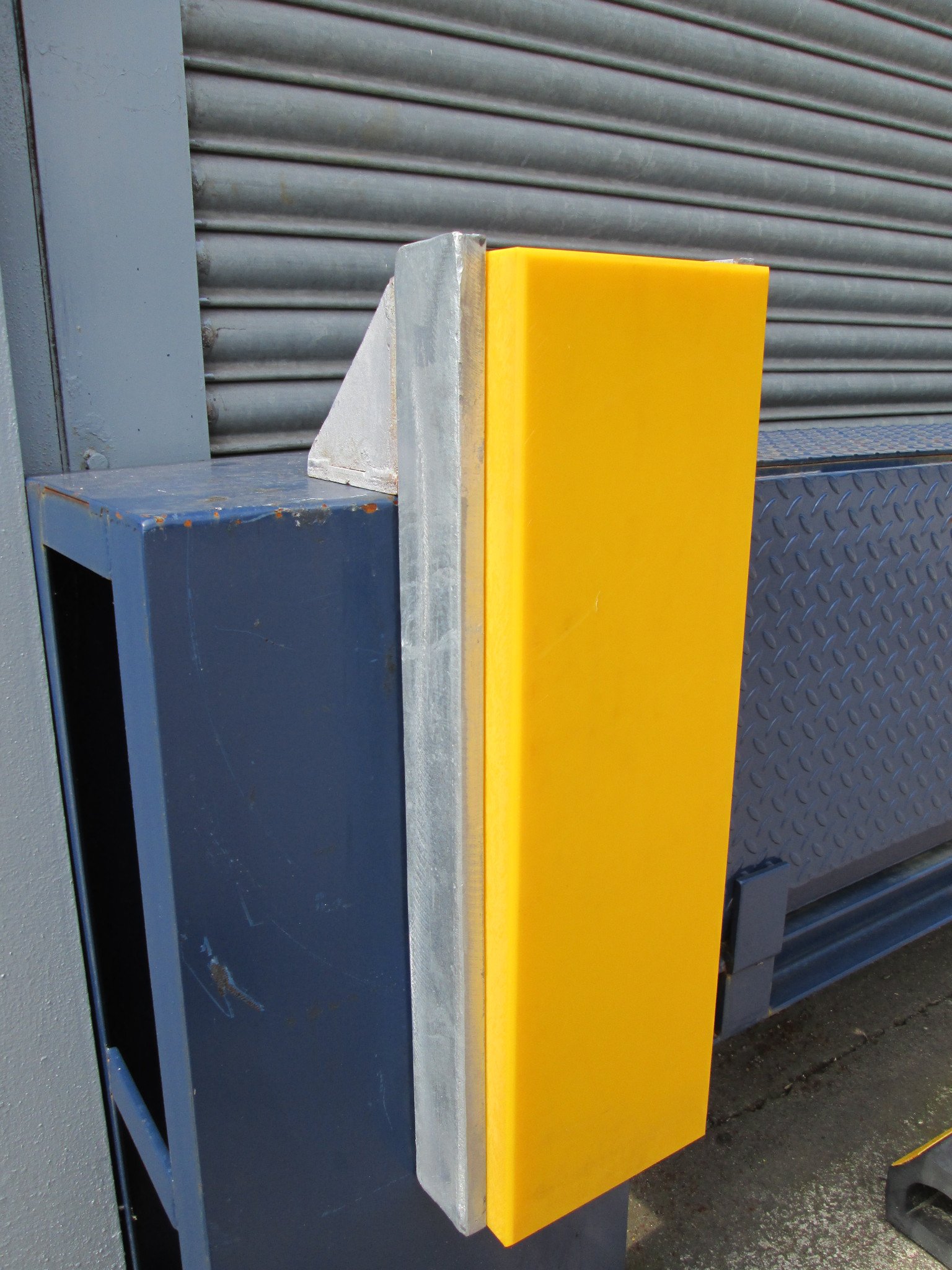

The 2 middle photos show this part used in conjunction with part WHDBA30 Angle Bracket to help protect against trailers that over-ride the dock leveller.

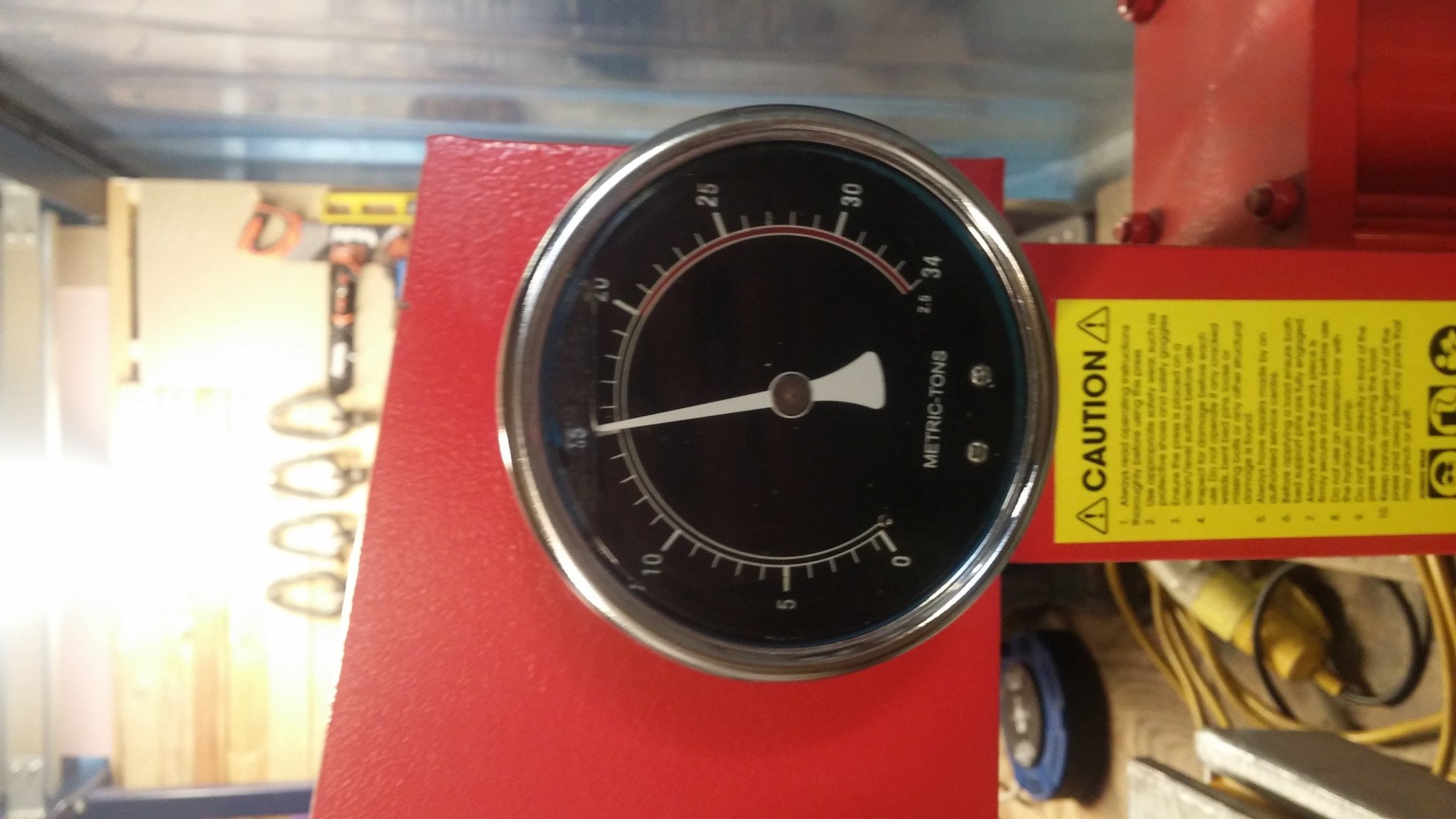

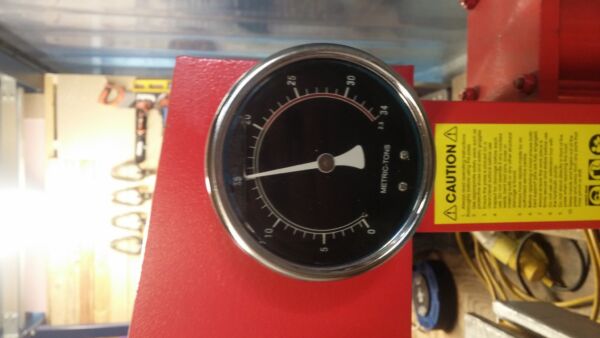

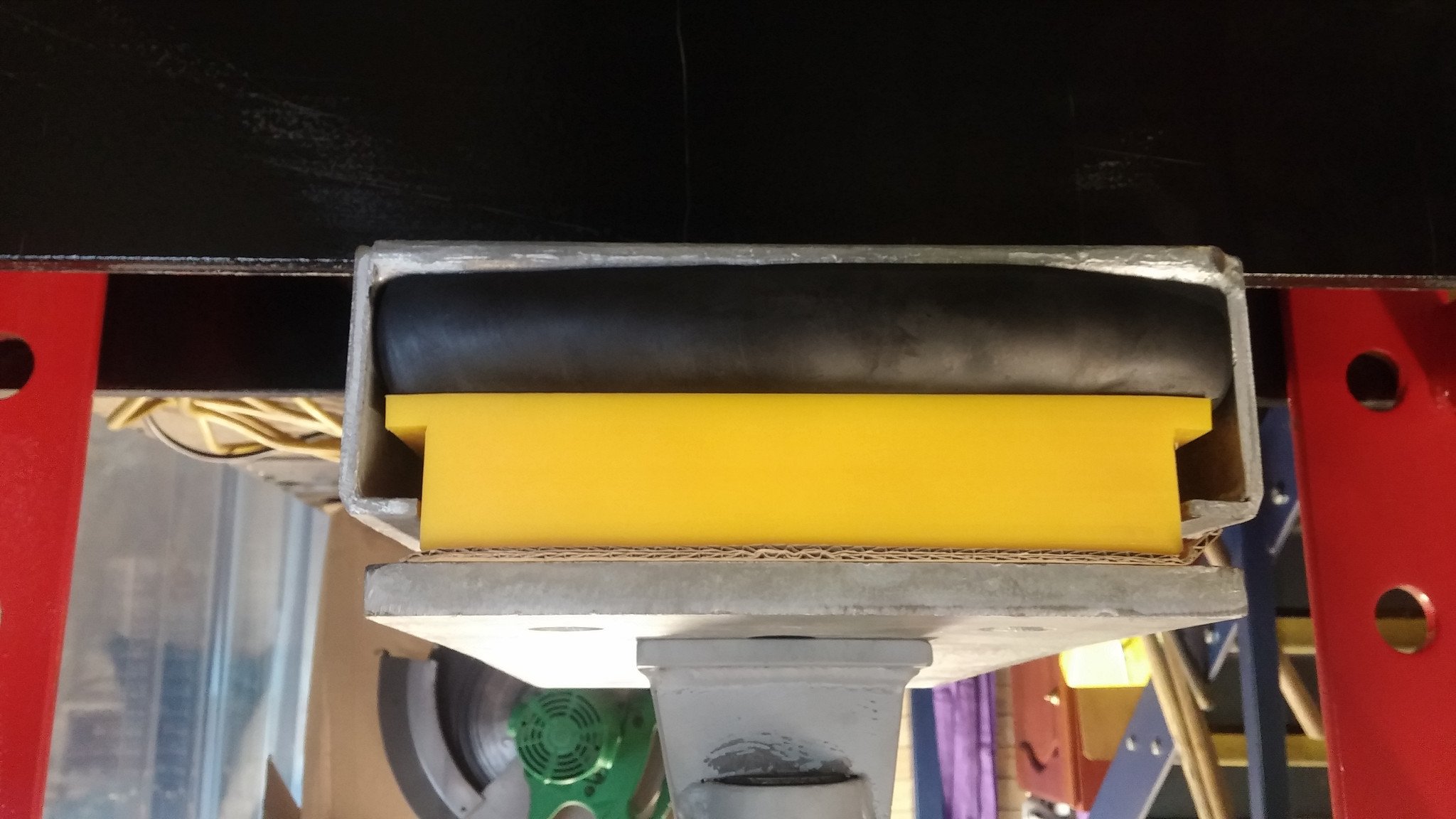

Compresses 11mm under 15 tonne load

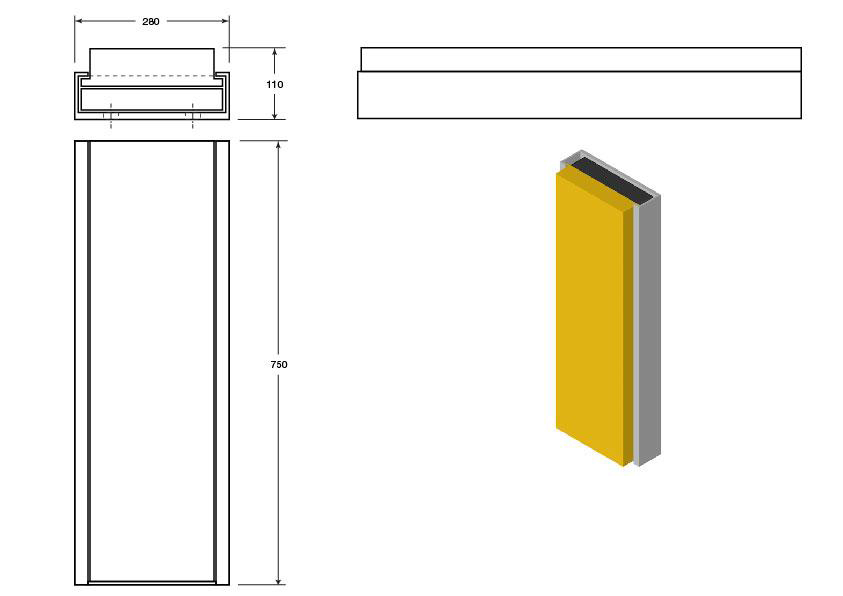

|Dimensions:||750 x 260 x 115 mm|
