170mm width x 170mm depth
Hose And Cable Ramp

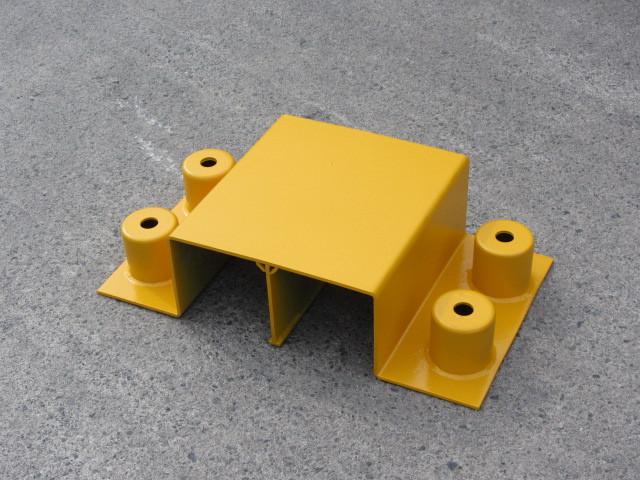

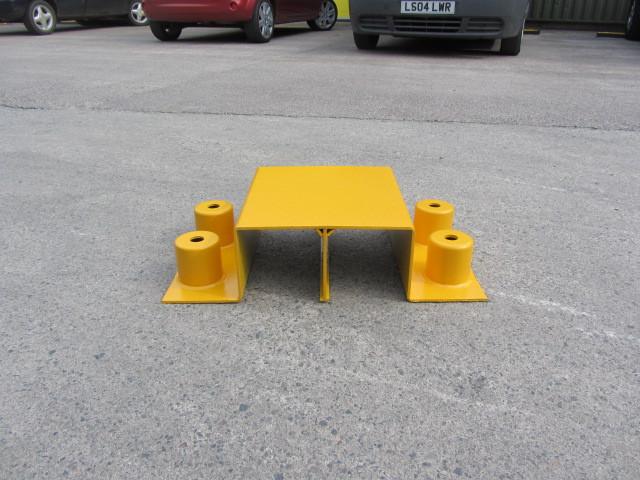

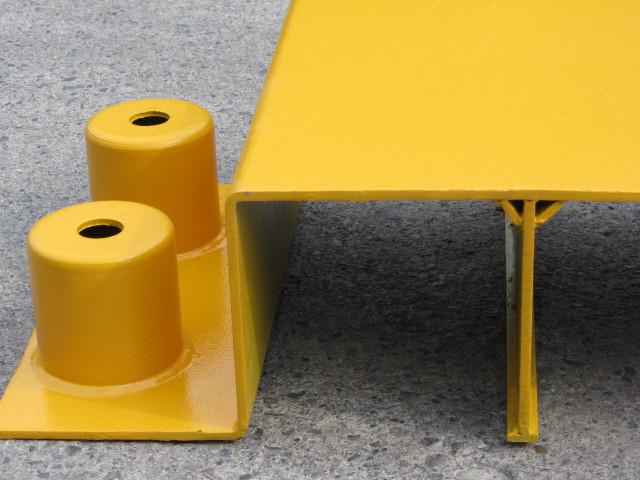

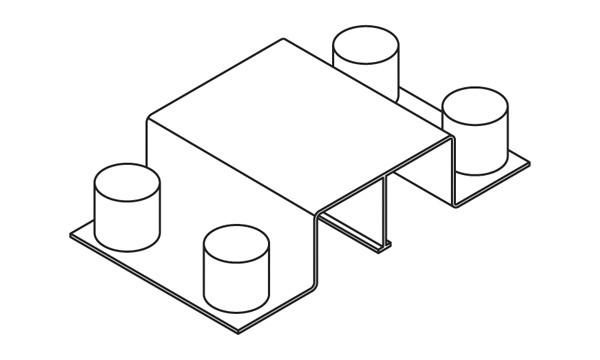

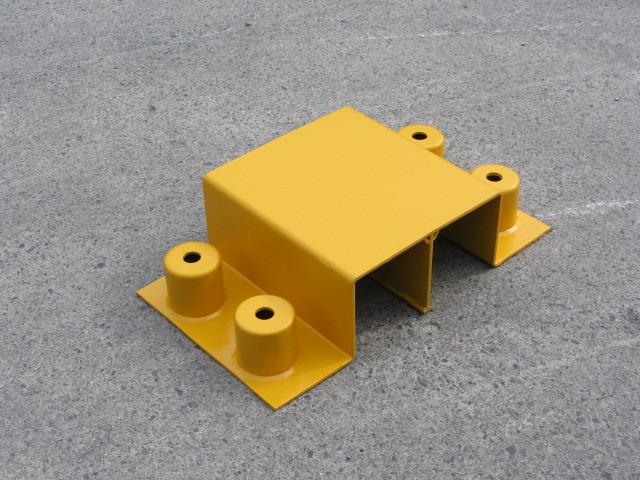

The WHHCR22 Hose and Cable Ramp is the central steel bridge for the modular ramp system designed to take larger diameter hose up to a maximum of 170mm diameter. This particular steel bridge can accommodate 2 x 170mm dia hoses/cables. Using the rubber elements of this system it is possible to make a ramp 3400mm long which enables most cars to traverse the ramp without "beaching". The design allows for the front wheel to still be up in the rubber blocks when the rear wheel starts up the leading edge of the ramp.
The 7mm thick steel is galvanised with yellow powder coat over (Yellow is RAL1028).
This product has been redesigned and upgraded to 7mm thick steel.
|Dimensions:||360 x 400 x 175 mm|
