Pu/pe Hose And Cable Ramp
£190.44 (ex. VAT)
| Product Code: | WHHCR06 |
|---|---|
| Dimensions: | 960 x 590 x 80 mm |
| Weight: | 23kg |

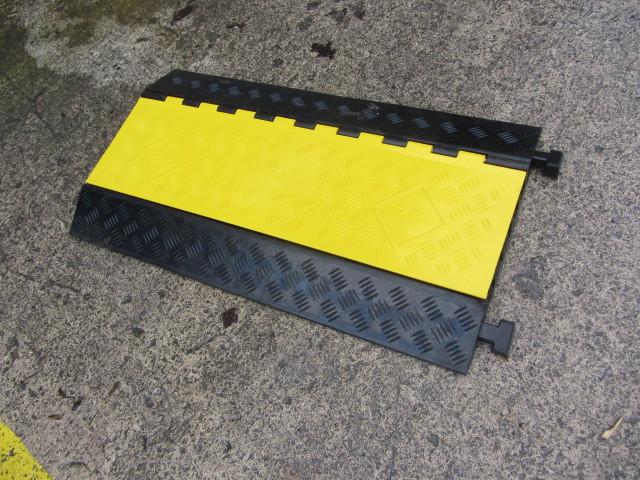

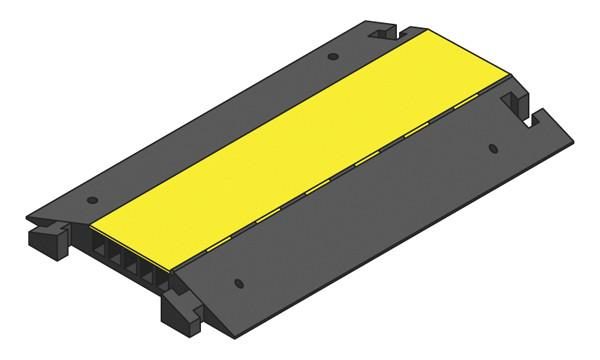

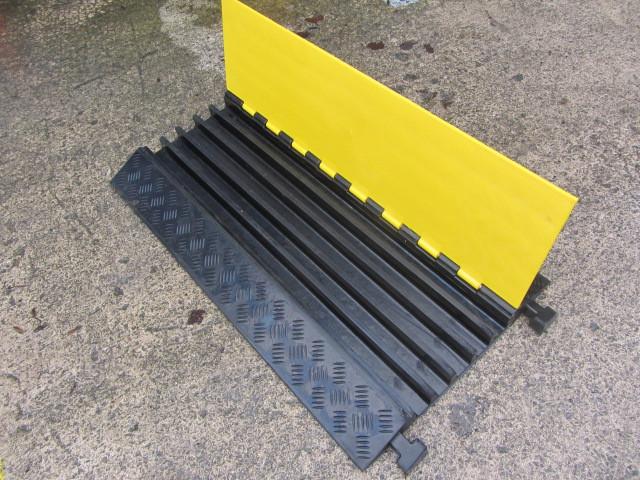

The WHHCR06 Hose and cable ramp is a 5 channel lidded ramp for pedestrians and vehicles. Each 960mm unit clicks together to make a continuous run. Cables/hoses can be added or removed once the ramps have been deployed. The lids are made from high visibility yellow PE.
Note: These ramps are for temporary deployment and not for permanent fitting.
Important: Signage should be in place to slow traffic down (max. 5 mph) whilst traversing the ramp. Not suitable for forklifts.
| Max loading | 12 Tonnes per single wheel axle. |
|---|---|

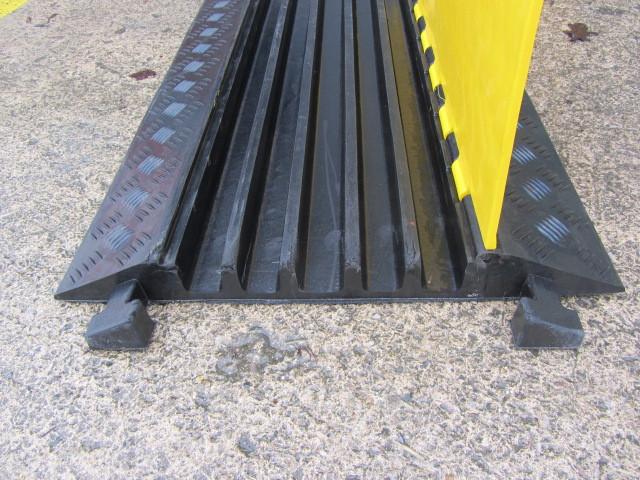

| Channels | 50mm deep x 35mm wide |
| 2 Channels | 32mm base x 34mm high |
