Rubber Hose And Cable Ramp
£111.28 (ex. VAT)
| Product Code: | WHHCR12 |
|---|---|

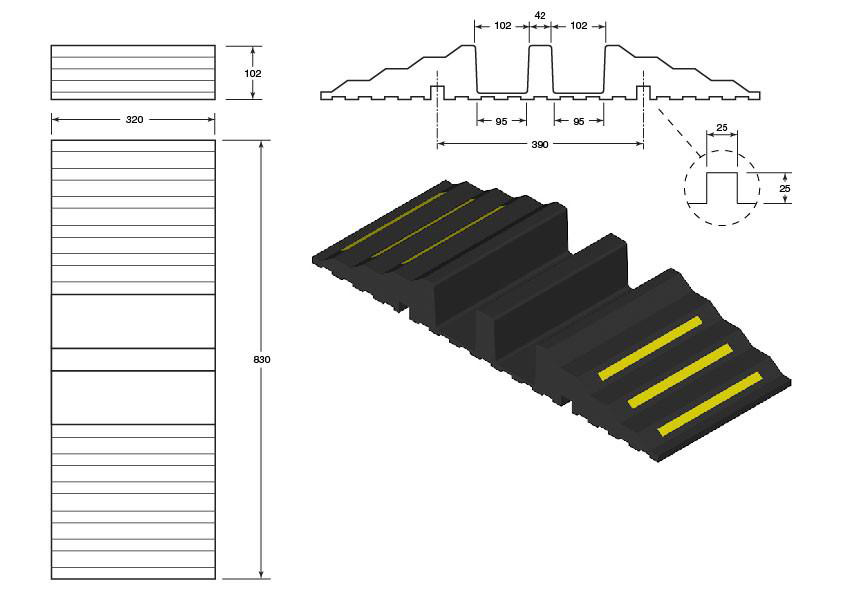

| Dimensions: | 820 x 310 x 102 mm |
| Weight: | 16 kg |

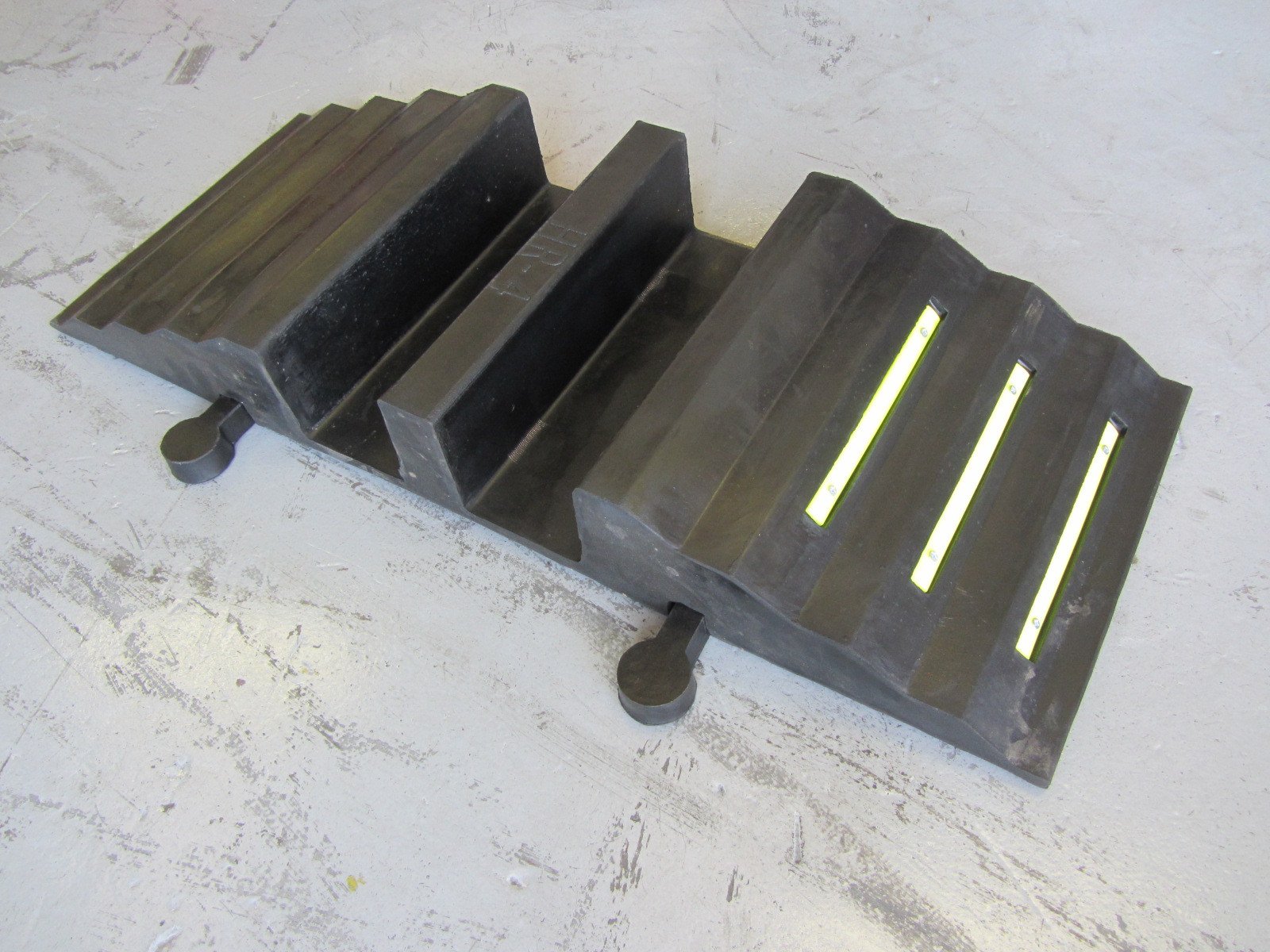

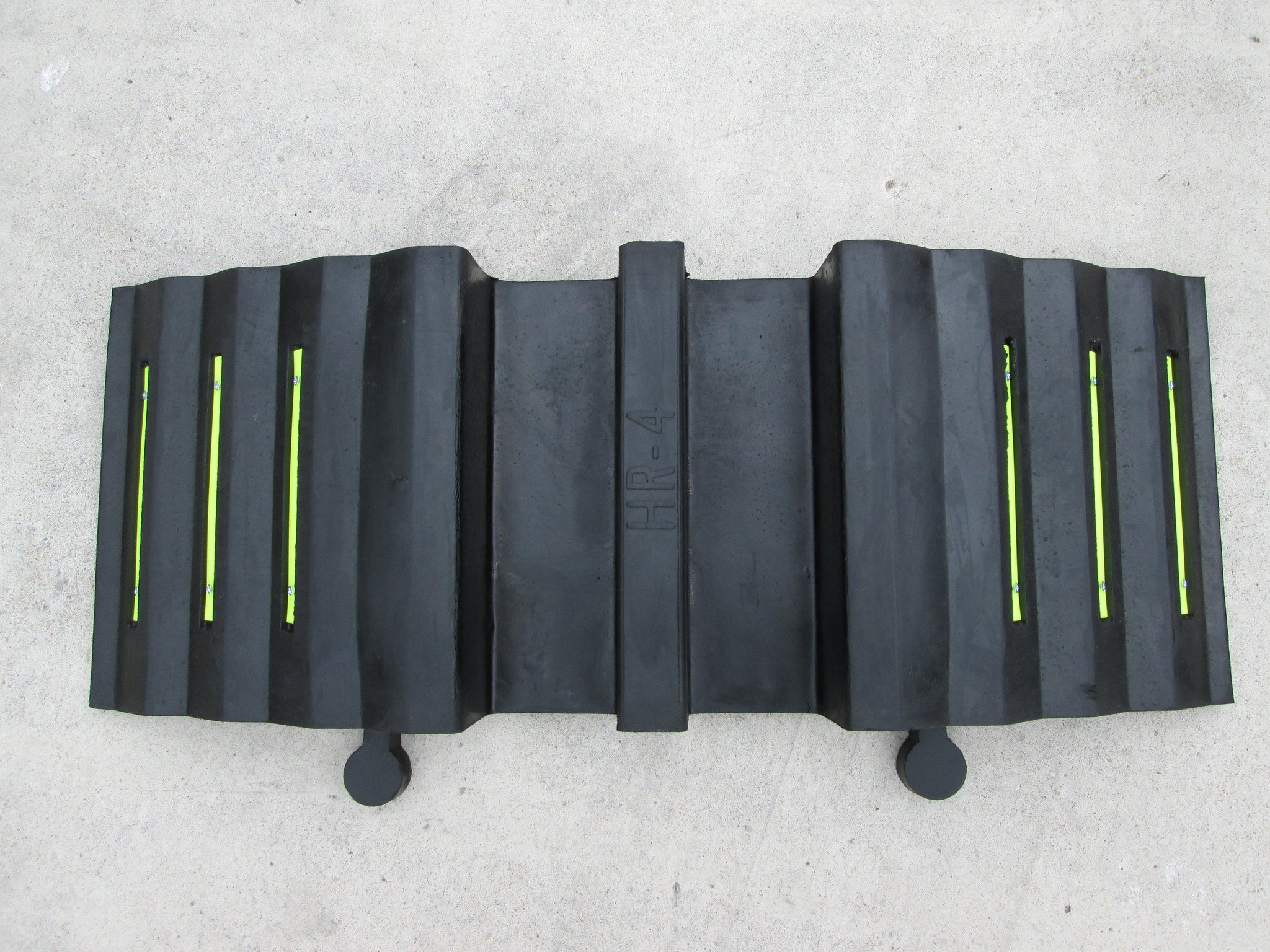

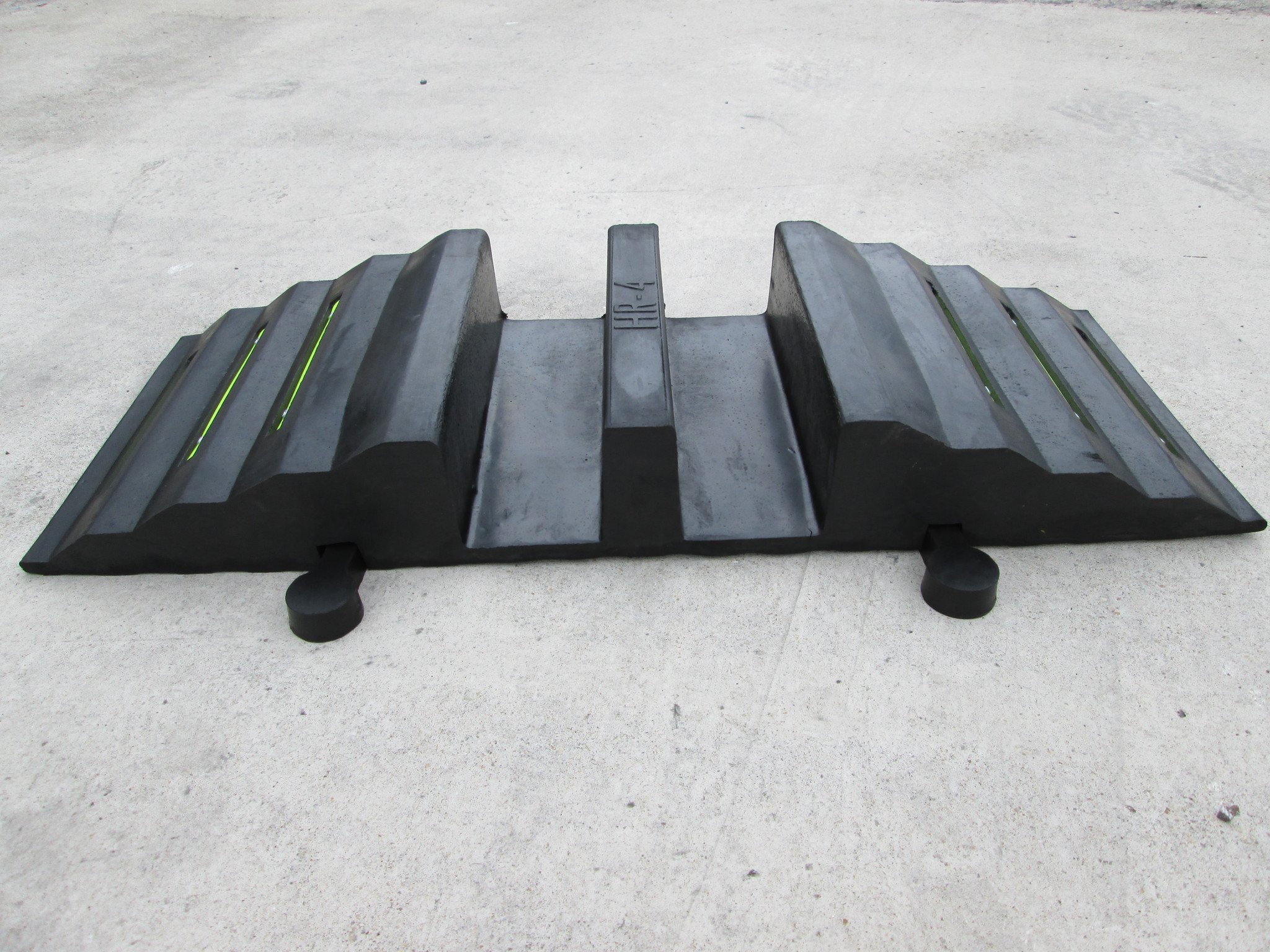

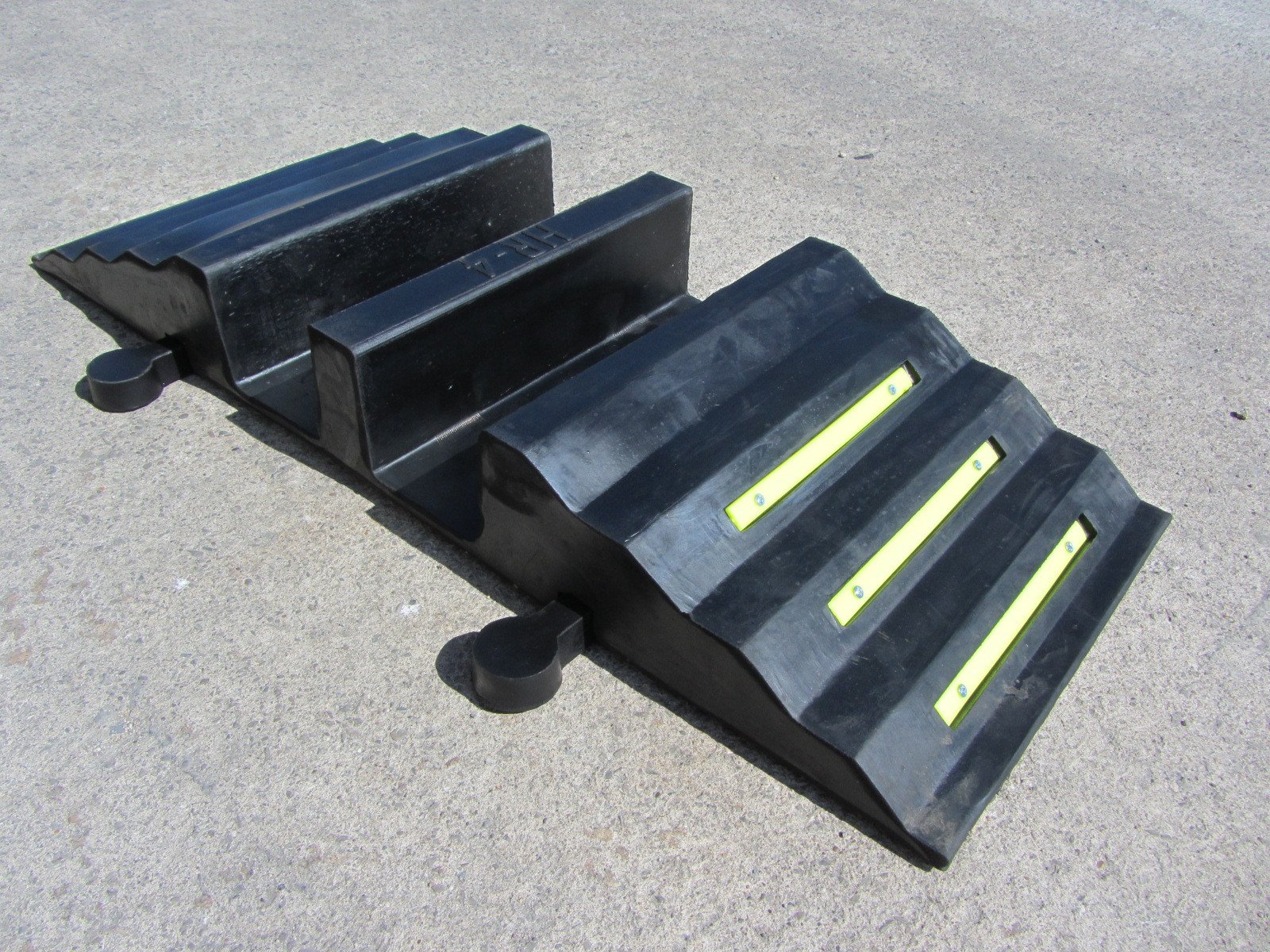

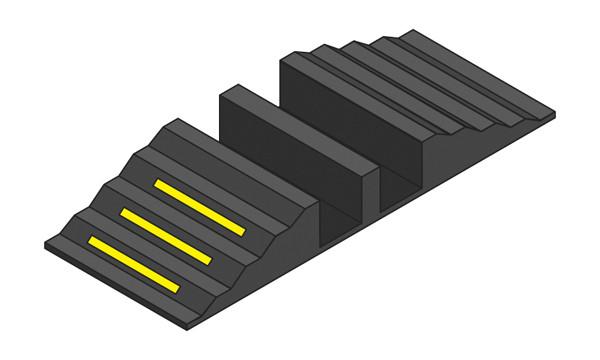

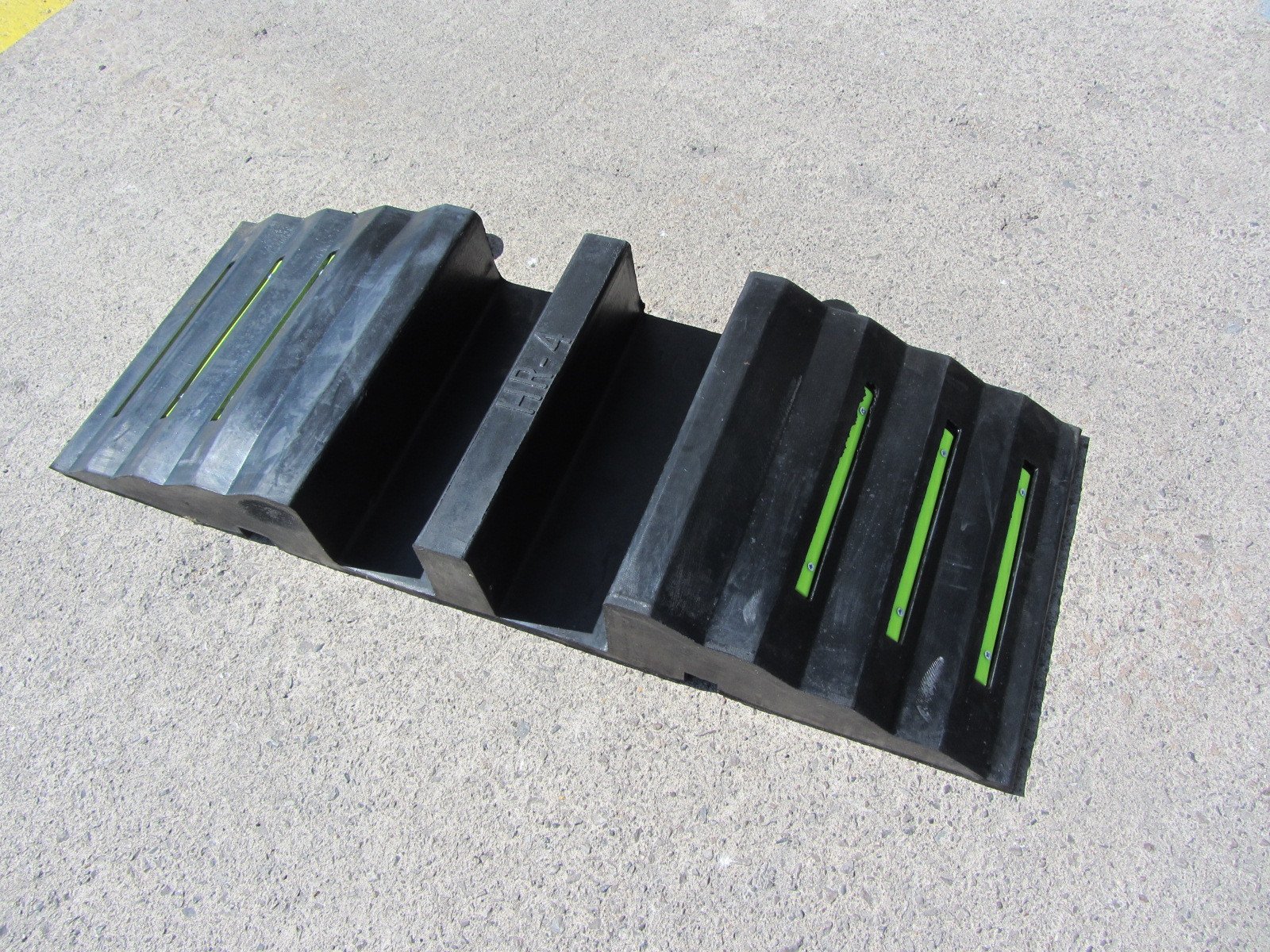

The WHHCR12 Hose and Cable Ramp is a moulded rubber hose ramp designed to protect 2 x 100mm diameter hoses. The part has two open top channels. Each channel is 95mm at the base opening up to 102mm at the top. The depth of each channel is 94mm. Each face of the ramp has three yellow visibility strips embedded into slots. The ramp is supplied with 2 connecting connectors fitted. Spares are available if required.
| Max Load | 44 Tonnes |
|---|---|
| Channels | 100 x 100mm |
Gallery
Related Products
(Male fitting) 150 x 590 x 80 mm : (Female fitting) 200 x 590 x 80 mm
970 x 590 x 80 mm
540 x 400 x 160 mm (max)
370 x 400 x 190 mm
