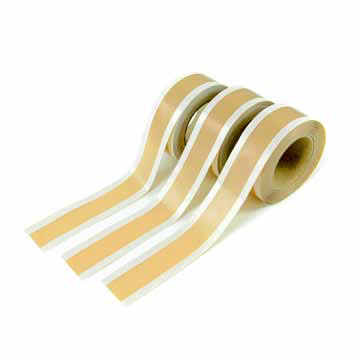

PTFE zone tapes

Product Code:TAP003

PTFE-Glass fabric zone tapes are primarily used in applications where it is important that the adhesive doesn't come in to contact with a heating element or it is necessary to cover an expensive component of a packaging machine such as silicone sponge or foam.

Zone tapes are used in applications where PTFE-Glass fabric needs to be mechanically fastened to a surface. Zone tapes are used as a barrier between the hot surface of an impulse heating element and the material that is to be sealed, usually within the packaging industry. This tends to be the sealing of plastics carrier bags or when sealing items in a film pouch ready for the next process of shrinking. L-sealers and vacuum sealers all tend to use these styles of tapes and are offered in two types depending on preference or application.

The high PTFE content of the tape protects the surface of the impulse element allowing the molten plastic to bond together creating a seal whilst not damaging the delicate elements. Depending on the style of zone tape used it either has a double sided or glass weave style tape to bond to the surface. Both styles offer a strong adhesive whilst being easy to remove and replace.

Technical Specification

Material PTFE coated glass fabric
Adhesive tape Either double-sided or single-sided glass weave tape along both edges

Widths available

Product Code Width Tape Length
TAP003-01 0.008mm Single- or double-sided 30m
TAP003-02 0.013mm Single- or double-sided 30m
TAP003-03 0.015mm Single- or double-sided 30m
TAP003-04 0.023mm Single- or double-sided 30m

Additional notes

Zone tapes are PTFE coated glass fabrics with double sided tape or single sided glass weave tape down both edges. They are manufactured in either, .008mm, .013mm, .015mm or .023mm thick in varying widths.

All zone tapes are custom made to your specifications with quick turnaround times. Standard roll lengths are 30m coils; however shorter runs are available if required.
