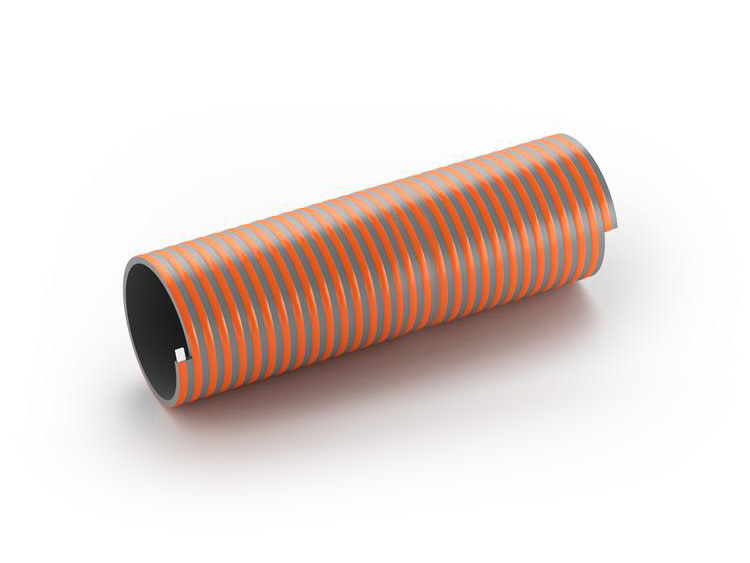

PVC hose with rigid PVC spiral. Designed for both the suction and delivery of; liquids, irrigation systems, sewage drains and cesspits.

Product Code:PVCHSE030
Ø I.D.:
Ø O.D.:
Wall Thickness:
Bending Radius:
Working Pressure 1:3 23°C:
Bursting Pressure 23°C:
Vacuum 23°c:9 m h2o
Ø Rigid Spiral axb If Oval):
Spiral Pitch:
Coil Length:
£31.86 per coil (ex. VAT)
£38.23 (incl. VAT)
Product CodeØ I.D.Ø I.D.Ø O.D.Wall ThicknessWeightBending RadiusWorking Pressure 1:3 23°CBursting Pressure 23°CVacuum 23°cØ Rigid Spiral axb If Oval)Spiral PitchCoil Length
PVCHSE030-012 inch51 mm58.8 mm4 mm850 g/m220 mm5 bar15 bar9 m h2o3,5x7,5 mm10.5 mm50 m
PVCHSE030-022 1/2 inch63 mm71.4 mm4,2 mm1150 g/m250 mm4 bar12 bar9 m h2o3,5x7,5 mm11 mm50 m
PVCHSE030-033 inch76 mm85.2 mm4,5 mm1450 g/m330 mm4 bar12 bar9 m h2o4x8,5 mm13 mm30 m
PVCHSE030-0480 mm89.6 mm4,8 mm1600 g/m350 mm4 bar12 bar9 m h2o4,4x9 mm14.5 mm30 m
PVCHSE030-0590 mm100 mm5 mm2000 g/m400 mm3 bar9 bar9 m h2o4,5x10,3 mm14.5 mm30 m
PVCHSE030-064 inch102 mm111.6 mm5 mm2200 g/m430 mm3 bar9 bar9 m h2o4,6x10,4 mm14.5 mm30 m
PVCHSE030-07110 mm121.4 mm5,7 mm2700 g/m480 mm2,5 bar7.5 bar9 m h2o4,7x10,5 mm15.5 mm20 m
PVCHSE030-085 inch127 mm139 mm6 mm3200 g/m550 mm2,5 bar7.5 bar9 m h2o5,5x10,5 mm17.5 mm20 m
PVCHSE030-096 inch152 mm166.4 mm7 mm4300 g/m700 mm2 bar6 bar9 m h2o6,5x12,3 mm21.5 mm-
PVCHSE030-108 inch203 mm223.2 mm10 mm8500 g/m900 mm1,5 bar4.5 bar9 m h2o10x14,2 mm22.5 mm-
