Nevada Phf
From £6.39 (ex. VAT)
Product Code: | PVCHSE028 |
---|

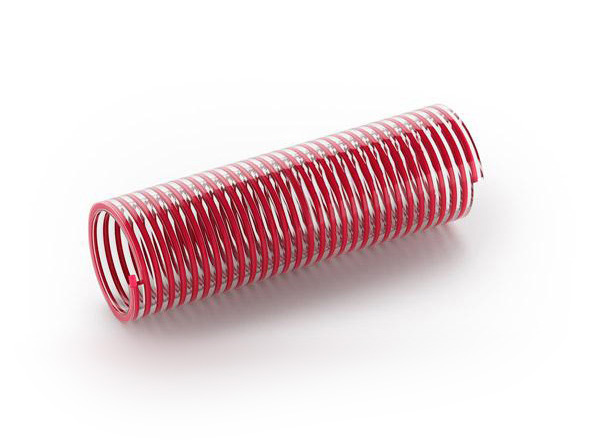

PVC PHF hose with rigid PVC spiral. Designed for heavy-duty use in the wine sector. Allowing both the suction and delivery of food and alcoholic liquids up to 20%.
Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Vacuum 23°c | Spiral Pitch | Spiral Direction | Coil Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|
PVCHSE028-01 | 1 inch | 25 mm | 32.6 mm | 3.8 mm | 400 g/m | 175 mm | 8 bar | 24 bar | 9 m h2o | 7 mm | right | 50 m |
PVCHSE028-02 | 30 mm | 37.6 mm | 3.8 mm | 500 g/m | 210 mm | 8 bar | 24 bar | 9 m h2o | 7.5 mm | right | 50 m | |
PVCHSE028-03 | 1 1/4 inch | 32 mm | 40 mm | 4 mm | 520 g/m | 220 mm | 8 bar | 24 bar | 9 m h2o | 7.6 mm | right | 50 m |
PVCHSE028-04 | 35 mm | 43 mm | 4 mm | 600 g/m | 240 mm | 8 bar | 24 bar | 9 m h2o | 7.7 mm | right | 50 m | |
PVCHSE028-05 | 1 1/2 inch | 38 mm | 46.4 mm | 4.2 mm | 700 g/m | 250 mm | 8 bar | 24 bar | 9 m h2o | 7.8 mm | right | 50 m |
PVCHSE028-06 | 40 mm | 49 mm | 4.5 mm | 750 g/m | 260 mm | 8 bar | 24 bar | 9 m h2o | 7.8 mm | right | 50 m | |
PVCHSE028-07 | 1 3/4 inch | 45 mm | 54 mm | 4.5 mm | 900 g/m | 290 mm | 8 bar | 24 bar | 9 m h2o | 8 mm | right | 50 m |
PVCHSE028-08 | 2 inch | 50 mm | 59 mm | 4.5 mm | 1000 g/m | 325 mm | 8 bar | 24 bar | 9 m h2o | 8.5 mm | right | 50 m |
PVCHSE028-09 | 60 mm | 71 mm | 5.5 mm | 1450 g/m | 380 mm | 7 bar | 21 bar | 9 m h2o | 10 mm | right | 50 m | |
PVCHSE028-10 | 2 1/2 inch | 63 mm | 75 mm | 6 mm | 1670 g/m | 400 mm | 7 bar | 21 bar | 9 m h2o | 8.5 mm | right | 50 m |
PVCHSE028-11 | 70 mm | 82 mm | 6 mm | 1800 g/m | 450 mm | 6 bar | 18 bar | 9 m h2o | 10.5 mm | right | 50 m | |
PVCHSE028-12 | 75 mm | 87 mm | 6 mm | 1900 g/m | 490 mm | 6 bar | 18 bar | 9 m h2o | 12 mm | right | 50 m | |
PVCHSE028-13 | 80 mm | 93 mm | 6.5 mm | 2200 g/m | 530 mm | 5 bar | 15 bar | 9 m h2o | 12 mm | right | 50 m | |
PVCHSE028-14 | 3 1/2 inch | 90 mm | 104 mm | 7 mm | 2480 g/m | 600 mm | 5 bar | 15 bar | 9 m h2o | 13.5 mm | right | 30 m |
PVCHSE028-15 | 100 mm | 115 mm | 7.5 mm | 3300 g/m | 700 mm | 4 bar | 12 bar | 9 m h2o | 13.5 mm | right | 30 m | |
PVCHSE028-16 | 4 inch | 102 mm | 117 mm | 7.5 mm | 3300 g/m | 700 mm | 4 bar | 12 bar | 9 m h2o | 14 mm | right | 30 m |
PVCHSE028-17 | 110 mm | 126 mm | 8 mm | 3450 g/m | 800 mm | 4 bar | 12 bar | 9 m h2o | 14.5 mm | right | 30 m | |
PVCHSE028-18 | 120 mm | 136 mm | 8 mm | 3600 g/m | 900 mm | 4 bar | 12 bar | 9 m h2o | 17 mm | right | 30 m | |
PVCHSE028-19 | 125 mm | 142 mm | 8.5 mm | 4200 g/m | 980 mm | 4 bar | 12 bar | 9 m h2o | 12 mm | right | 30 m | |
PVCHSE028-20 | 150 mm | 170 mm | 10 mm | 6300 g/m | 1350 mm | 3 bar | 9 bar | 9 m h2o | 13.5 mm | right | 30 m | |
PVCHSE028-21 | 200 mm | 224 mm | 12 mm | 8500 g/m | 1800 mm | 2 bar | 6 bar | 9 m h2o | 22 mm | right | 10 m |
