| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Working Pressure 1:3 23°C | Working Pressure 40°C | Working Pressure 60°C | Bursting Pressure 23°C | Tensile Strength | Tensile Breaking Load | Coil Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE111-01 | 20 mm | 24 mm | 2 mm | 150 g/m | 10 bar | 7 bar | 4 bar | 30 bar | 110 kg | 255 kg | 50/100 m | |
| PVCHSE111-02 | 1 inch | 25 mm | 29 mm | 2 mm | 190 g/m | 10 bar | 7 bar | 4 bar | 30 bar | 120 kg | 285 kg | 50/100 m |
| PVCHSE111-03 | 30 mm | 34 mm | 2 mm | 220 g/m | 10 bar | 7 bar | 4 bar | 30 bar | 165 kg | 385 kg | 50/100 m | |
| PVCHSE111-04 | 1 1/4 inch | 32 mm | 36 mm | 2 mm | 240 g/m | 10 bar | 7 bar | 4 bar | 30 bar | 165 kg | 385 kg | 50/100 m |
| PVCHSE111-05 | 35 mm | 39 mm | 2 mm | 290 g/m | 10 bar | 7 bar | 4 bar | 30 bar | 180 kg | 415 kg | 50/100 m | |
| PVCHSE111-06 | 1 1/2 inch | 38 mm | 42 mm | 2 mm | 300 g/m | 10 bar | 7 bar | 4 bar | 30 bar | 190 kg | 445 kg | 50/100 m |
| PVCHSE111-07 | 40 mm | 44 mm | 2 mm | 320 g/m | 10 bar | 7 bar | 4 bar | 30 bar | 205 kg | 480 kg | 50/100 m | |
| PVCHSE111-08 | 1 3/4 inch | 45 mm | 49 mm | 2 mm | 360 g/m | 10 bar | 7 bar | 4 bar | 30 bar | 235 kg | 545 kg | 50/100 m |
| PVCHSE111-09 | 2 inch | 51 mm | 55 mm | 2 mm | 410 g/m | 10 bar | 7 bar | 4 bar | 30 bar | 250 kg | 575 kg | 50/100 m |
| PVCHSE111-10 | 60 mm | 65 mm | 2.5 mm | 550 g/m | 8 bar | 5 bar | 3 bar | 24 bar | 450 kg | 1055 kg | 50/100 m | |
| PVCHSE111-11 | 2 1/2 inch | 63 mm | 68.5 mm | 2.5 mm | 570 g/m | 8 bar | 5 bar | 3 bar | 24 bar | 480 kg | 1115 kg | 50/100 m |
| PVCHSE111-12 | 70 mm | 75 mm | 2.5 mm | 650 g/m | 8 bar | 5 bar | 3 bar | 24 bar | 535 kg | 1245 kg | 50/100 m | |
| PVCHSE111-13 | 3 inch | 76 mm | 81 mm | 2.5 mm | 700 g/m | 8 bar | 5 bar | 3 bar | 24 bar | 600 kg | 1390 kg | 50/100 m |
| PVCHSE111-14 | 80 mm | 85 mm | 2.5 mm | 750 g/m | 8 bar | 5 bar | 3 bar | 24 bar | 620 kg | 1440 kg | 50/100 m | |
| PVCHSE111-15 | 3 1/2 inch | 90 mm | 95 mm | 2.5 mm | 860 g/m | 8 bar | 5 bar | 3 bar | 24 bar | 700 kg | 1630 kg | 50/100 m |
| PVCHSE111-16 | 4 inch | 102 mm | 108 mm | 3 mm | 1000 g/m | 8 bar | 5 bar | 3 bar | 24 bar | 785 kg | 1825 kg | 50/100 m |
| PVCHSE111-17 | 110 mm | 116 mm | 3 mm | 1150 g/m | 8 bar | 5 bar | 3 bar | 24 bar | 865 kg | 2015 kg | 50/100 m | |
| PVCHSE111-18 | 5 inch | 127 mm | 133 mm | 3 mm | 1350 g/m | 6 bar | 4 bar | 2 bar | 18 bar | 970 kg | 2255 kg | 50/100 m |
| PVCHSE111-19 | 6 inch | 152 mm | 158 mm | 3 mm | 1600 g/m | 4 bar | 3 bar | 1 bar | 12 bar | 1080 kg | 2520 kg | 50/100 m |
| PVCHSE111-20 | 8 inch | 204 mm | 210 mm | 3 mm | 2400 g/m | 3 bar | 2 bar | 1 bar | 9 bar | 1495 kg | 3480 kg | 50 m |

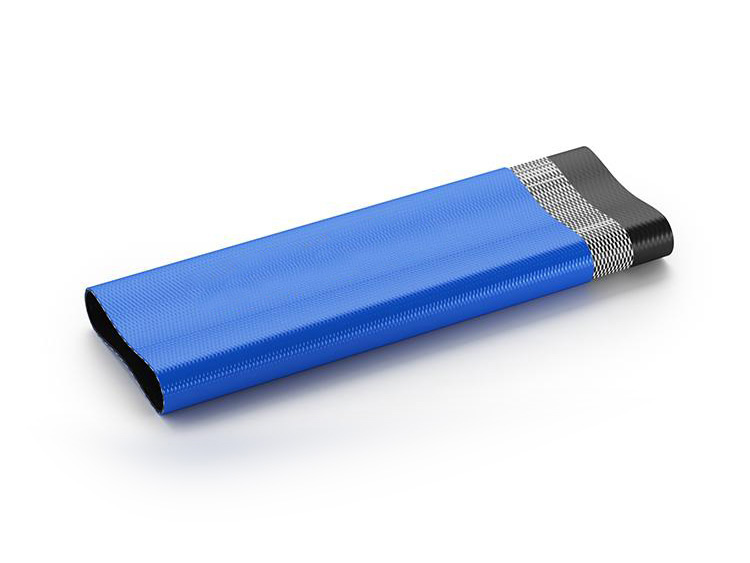

Jamaica M
SKU: PVCHSE111
Flexible lay-flat PVC hose with a polyester yarn reinforcement. Designed to be resistant to elongation and for the pressurised delivery of liquids in general.
