| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Vacuum 23°c | Spiral Pitch | Ø Spiral | Coil Length | Spiral Direction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE016-01 | 3/8 inch | 10 mm | 15.5 mm | 2.75 mm | 140 g/m | 25 mm | 7 bar | 21 bar | 8.5 m h2o | 7 mm | 0.65 mm | 60 m | right |
| PVCHSE016-02 | 12 mm | 17.5 mm | 2.75 mm | 160 g/m | 30 mm | 7 bar | 21 bar | 8.5 m h2o | 7 mm | 0.65 mm | 60 m | right | |
| PVCHSE016-03 | 14 mm | 19.5 mm | 2.75 mm | 175 g/m | 35 mm | 6 bar | 18 bar | 8.5 m h2o | 8 mm | 0.65 mm | 60 m | right | |
| PVCHSE016-04 | 5/8 inch | 16 mm | 21.5 mm | 2.75 mm | 190 g/m | 40 mm | 6 bar | 18 bar | 8.5 m h2o | 8 mm | 0.65 mm | 60 m | right |
| PVCHSE016-05 | 18 mm | 24 mm | 3 mm | 260 g/m | 45 mm | 6 bar | 18 bar | 8.5 m h2o | 9 mm | 0.8 mm | 60 m | right | |
| PVCHSE016-06 | 20 mm | 26.5 mm | 3.25 mm | 280 g/m | 55 mm | 5 bar | 15 bar | 8.5 m h2o | 10 mm | 0.8 mm | 60 m | right | |
| PVCHSE016-07 | 1 inch | 25 mm | 32 mm | 3.5 mm | 450 g/m | 65 mm | 5 bar | 15 bar | 8.5 m h2o | 12 mm | 1.2 mm | 60 m | right |
| PVCHSE016-08 | 30 mm | 38 mm | 4 mm | 540 g/m | 75 mm | 4.5 bar | 13.5 bar | 8.5 m h2o | 12 mm | 1.2 mm | 60 m | right | |
| PVCHSE016-09 | 1 1/4 inch | 32 mm | 40 mm | 4 mm | 580 g/m | 80 mm | 4.5 bar | 13.5 bar | 8.5 m h2o | 12 mm | 1.2 mm | 60 m | right |
| PVCHSE016-10 | 35 mm | 43 mm | 4 mm | 630 g/m | 85 mm | 4 bar | 12 bar | 8.5 m h2o | 12.5 mm | 1.2 mm | 60 m | right | |
| PVCHSE016-11 | 1 1/2 inch | 38 mm | 46 mm | 4 mm | 685 g/m | 95 mm | 4 bar | 12 bar | 8.5 m h2o | 13 mm | 1.2 mm | 30 m | right |
| PVCHSE016-12 | 40 mm | 49 mm | 4.5 mm | 845 g/m | 100 mm | 3 bar | 9 bar | 8.5 m h2o | 13 mm | 1.4 mm | 30 m | right | |
| PVCHSE016-13 | 1 3/4 inch | 45 mm | 54 mm | 4.5 mm | 970 g/m | 120 mm | 3 bar | 9 bar | 8 m h2o | 14 mm | 1.6 mm | 30 m | right |
| PVCHSE016-14 | 2 inch | 50 mm | 59 mm | 4.5 mm | 1060 g/m | 135 mm | 3 bar | 9 bar | 8 m h2o | 14 mm | 1.6 mm | 30 m | right |
| PVCHSE016-15 | 60 mm | 71.5 mm | 5.75 mm | 1650 g/m | 170 mm | 2 bar | 6 bar | 8 m h2o | 17 mm | 2 mm | 30 m | right | |
| PVCHSE016-16 | 100 mm | 112.5 mm | 6.25 mm | 2900 g/m | 300 mm | 1.5 bar | 4.5 bar | 7 m h2o | 16 mm | 2 mm | 30 m | right |

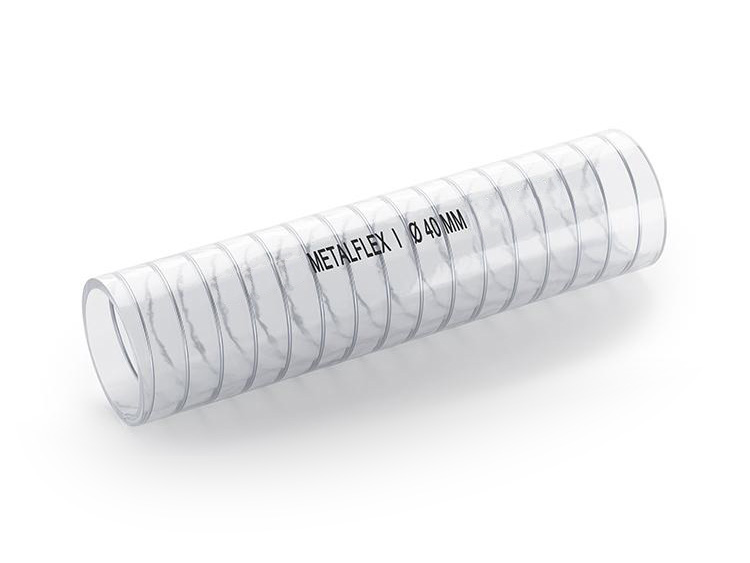

Metalflex I
SKU: PVCHSE016
Soft PVC hose with embedded galvanised steel spiral. Designed for suction and delivery of industrial liquids.
