Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Working Pressure 40°C | Working Pressure 60°C | Bursting Pressure 23°C | Coil Length |
---|---|---|---|---|---|---|---|---|---|---|---|
PVCHSE102-01 | 5/8 inch | 15 mm | 21 mm | 3 mm | 210 g/m | 60 mm | 15 bar | 7 bar | 4 bar | 45 bar | 50 m |
PVCHSE102-02 | 3/4 inch | 19 mm | 26 mm | 3.5 mm | 325 g/m | 70 mm | 15 bar | 7 bar | 4 bar | 45 bar | 50 m |
PVCHSE102-03 | 1 inch | 25 mm | 33 mm | 4 mm | 465 g/m | 110 mm | 15 bar | 5 bar | 3 bar | 45 bar | 50 m |

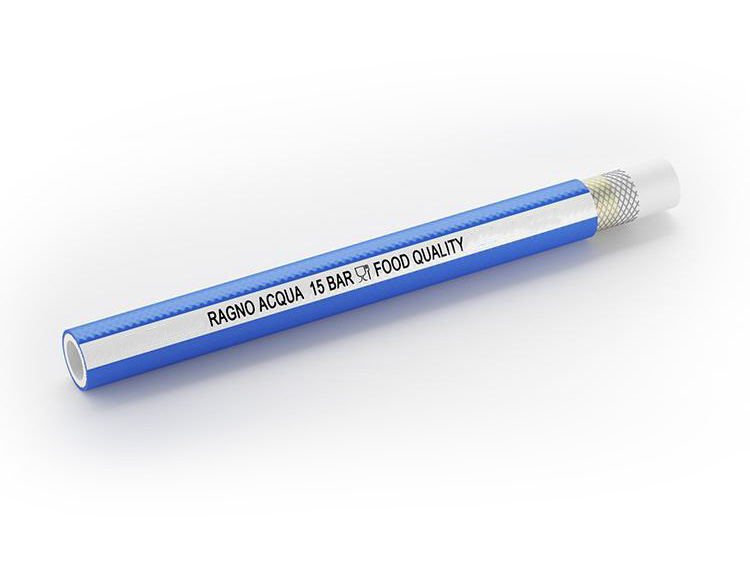

Ragno Acqua 15 Bar
SKU: PVCHSE102
PVC hose with a polyester yarn reinforcement and intermediate bonding PU adhesive layer. Designed for the delivery of food liquids under pressure.
Product Code: | PVCHSE102 |
---|---|
Ø I.D.: | |
Ø O.D.: | |
Total Thickness: | |
Weight: | |
Bending Radius: | |
Working Pressure 1:3 23°C: | 15 bar |
Working Pressure 40°C: | |
Working Pressure 60°C: | |
Bursting Pressure 23°C: | 45 bar |
Coil Length: | 50 m |
