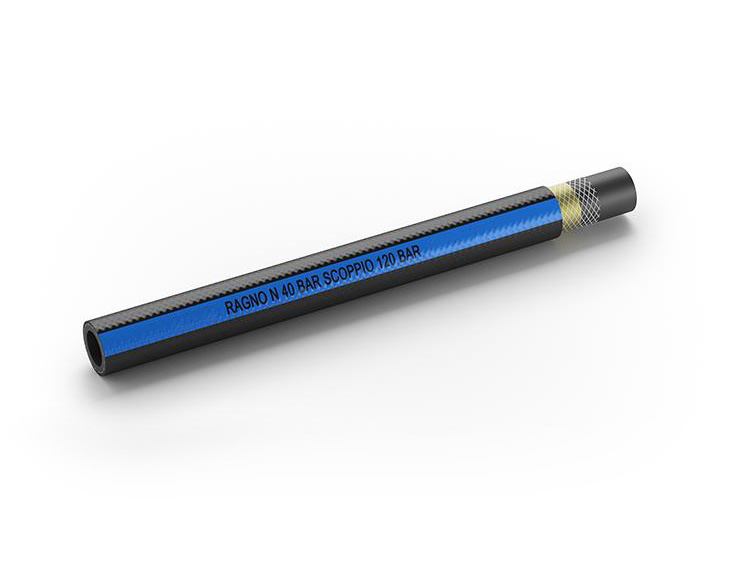

Ragno N 40 Bar


PVC hose with a polyester yarn reinforcement and PU adhesive intermediate layer. Designed for use with the pressure spraying of insecticides, pesticides and liquids under pressure.

Product Code:PVCHSE108
Ø I.D.:
Ø O.D.:
Total Thickness:
Bending Radius:
Working Pressure 1:3 23°C:40 bar
Working Pressure 40°C:32 bar
Working Pressure 60°C:24 bar
Bursting Pressure 23°C:120 bar
Coil Length:100 m
£0.00 per coil (ex. VAT)
£0.00 (incl. VAT)
Product CodeØ I.D.Ø I.D.Ø O.D.Total ThicknessWeightBending RadiusWorking Pressure 1:3 23°CWorking Pressure 40°CWorking Pressure 60°CBursting Pressure 23°CCoil Length
PVCHSE108-015/16 inch8 mm13.5 mm2.75 mm120 g/m25 mm40 bar32 bar24 bar120 bar100 m
PVCHSE108-023/8 inch10 mm16 mm3 mm160 g/m30 mm40 bar32 bar24 bar120 bar100 m
PVCHSE108-031/2 inch13 mm21 mm4 mm290 g/m50 mm40 bar32 bar24 bar120 bar100 m
