| Product Code | Ø I.D. | Ø I.D. | Ø O.D. | Total Thickness | Weight | Bending Radius | Coil Length | Working Pressure 1:3 23°C | Working Pressure 40°C | Working Pressure 60°C | Bursting Pressure 23°C |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCHSE104-01 | 1/4 inch | 6 mm | 10 mm | 2 mm | 70 g/m | 20 mm | 100 m | 20 bar | 17 bar | 15 bar | 60 bar |
| PVCHSE104-02 | 5/16 inch | 8 mm | 12 mm | 2 mm | 85 g/m | 22 mm | 60 m | 20 bar | 17 bar | 15 bar | 60 bar |
| PVCHSE104-03 | 3/8 inch | 10 mm | 15 mm | 2.5 mm | 130 g/m | 38 mm | 50 m | 20 bar | 17 bar | 15 bar | 60 bar |
| PVCHSE104-04 | 1/2 inch | 13 mm | 19 mm | 3 mm | 195 g/m | 65 mm | 30 m | 20 bar | 17 bar | 15 bar | 60 bar |
| PVCHSE104-05 | 5/8 inch | 16 mm | 22.5 mm | 3.2 mm | 250 g/m | 60 mm | 25 m | 20 bar | 17 bar | 15 bar | 60 bar |

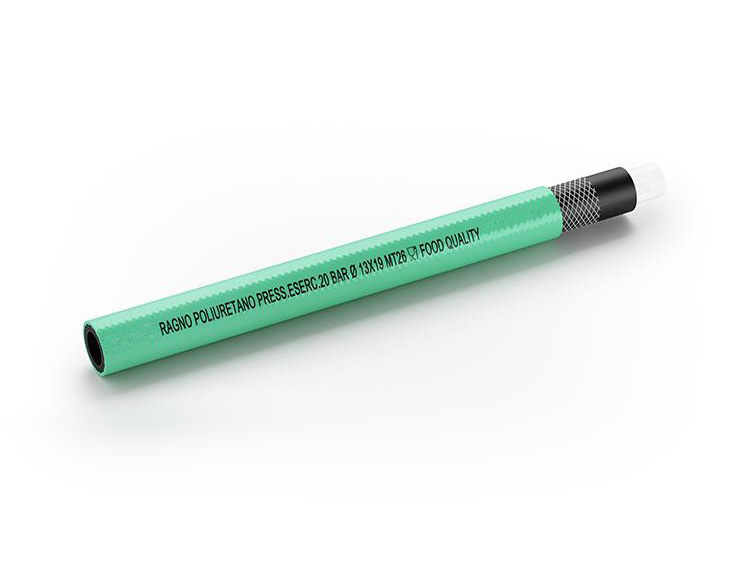

Ragno Pu
SKU: PVCHSE104
Anti-abrasive Polyurethane (PU) and thermoplastic rubber compound hose, with a polyester yarn reinforcement. Designed for use in general pneumatic tools, airbrushes and water based paint sprayers.
