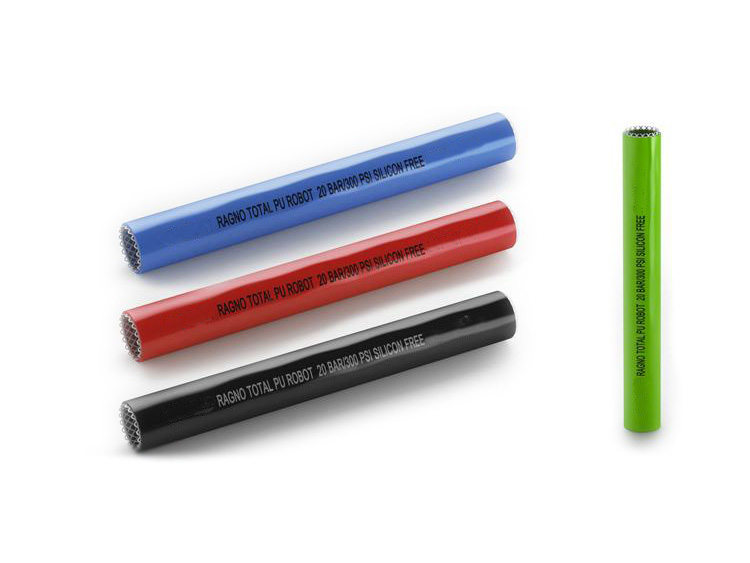

Ragno Total Pu Robot

SKU: PVCHSE101

Polyurethane (PU) hose with a polyester yarn reinforcement. Designed for use in industrial welding.

Product Code:PVCHSE101
Ø I.D.:
Ø O.D.:
Total Thickness:
Weight:
Bending Radius:
Working Pressure 1:3 23°C:
Working Pressure 40°C:
Working Pressure 60°C:
Bursting Pressure 23°C:
Coil Length:
£0.00 per coil (ex. VAT)
£0.00 (incl. VAT)
Product CodeØ I.D.Ø I.D.Ø O.D.Total ThicknessWeightBending RadiusWorking Pressure 1:3 23°CWorking Pressure 40°CWorking Pressure 60°CBursting Pressure 23°CCoil Length
PVCHSE101-011/4 inch6.3 mm11.2 mm2.5 mm85 g/m30 mm16 bar8 bar4 bar76 bar100 m
PVCHSE101-021/4 inch6.3 mm12.5 mm3.25 mm125 g/m25 mm25 bar12 bar6 bar95 bar100 m
PVCHSE101-033/8 inch9.5 mm16 mm3.25 mm160 g/m50 mm20 bar10 bar5 bar80 bar100 m
PVCHSE101-041/2 inch12.7 mm19 mm3.5 mm200 g/m75 mm20 bar10 bar5 bar80 bar100 m
PVCHSE101-055/8 inch16 mm23 mm3.75 mm250 g/m120 mm17 bar8 bar4 bar60 bar50 m
PVCHSE101-063/4 inch19 mm27 mm4 mm300 g/m150 mm17 bar8 bar4 bar60 bar50 m
PVCHSE101-073/4 inch18.5 mm26 mm1.75 mm305 g/m140 mm17 bar12 bar30 bar60 bar50 m
