Termoflex 300°c

SKU: PVCHSE089

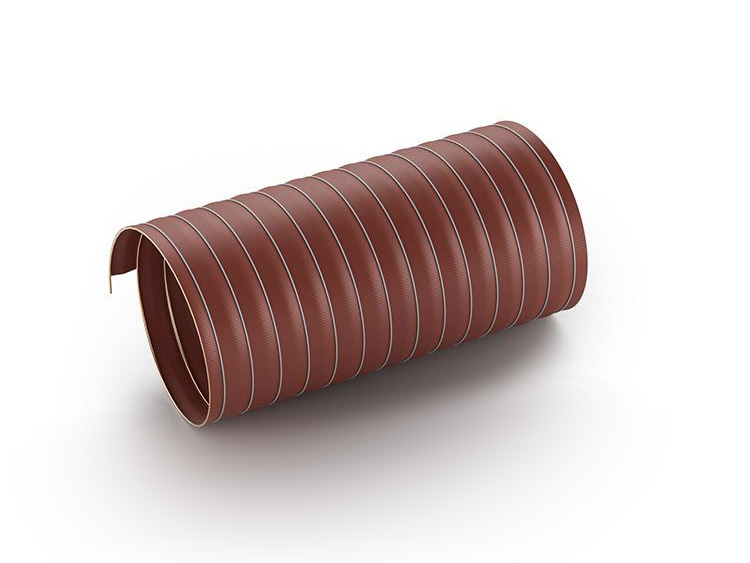

Hose made in silicone coated fibreglass with a galvanised steel spiral. Designed for the suction of fumes and hot air.

Product Code:

Size Variants

Product Code	Ø I.D.	Ø O.D.	Weight	Bending Radius	Working Pressure 1:3 23°C	Bursting Pressure 23°C	Vacuum 23°c	Coil Length
PVCHSE089-01	51 mm	55 mm	250 g/m	26 mm	1.5 bar	4.5 bar	5 m h2o	4 m
PVCHSE089-02	63 mm	67 mm	290 g/m	32 mm	1.3 bar	3.9 bar	5 m h2o	4 m
PVCHSE089-03	70 mm	74 mm	405 g/m	35 mm	1.2 bar	3.6 bar	5 m h2o	4 m
PVCHSE089-04	76 mm	80 mm	420 g/m	38 mm	1.1 bar	3.3 bar	3.97 m h2o	4 m
PVCHSE089-05	83 mm	87 mm	486 g/m	42 mm	1.1 bar	3.3 bar	3.97 m h2o	4 m
PVCHSE089-06	89 mm	93 mm	525 g/m	45 mm	1.1 bar	3.3 bar	3.85 m h2o	4 m
PVCHSE089-07	102 mm	106 mm	650 g/m	51 mm	1 bar	3 bar	3 m h2o	4 m
PVCHSE089-08	114 mm	119 mm	720 g/m	57 mm	0.9 bar	2.7 bar	2.2 m h2o	4 m
PVCHSE089-09	121 mm	126 mm	790 g/m	61 mm	0.9 bar	2.7 bar	2 m h2o	4 m
PVCHSE089-10	127 mm	132 mm	800 g/m	64 mm	0.8 bar	2.4 bar	1.7 m h2o	4 m
PVCHSE089-11	140 mm	145 mm	925 g/m	70 mm	0.7 bar	2.1 bar	1.5 m h2o	4 m
PVCHSE089-12	152 mm	157 mm	980 g/m	76 mm	0.7 bar	2.1 bar	1.4 m h2o	4 m
PVCHSE089-13	178 mm	183 mm	1190 g/m	89 mm	0.6 bar	1.8 bar	1.1 m h2o	4 m
PVCHSE089-14	203 mm	208 mm	1330 g/m	102 mm	0.5 bar	1.5 bar	0.7 m h2o	4 m
PVCHSE089-15	254 mm	259 mm	1650 g/m	127 mm	0.4 bar	1.2 bar	0.45 m h2o	4 m
PVCHSE089-16	305 mm	310 mm	2000 g/m	153 mm	0.3 bar	0.9 bar	0.3 m h2o	4 m
