Vacupress Oil Pu

SKU: PVCHSE007

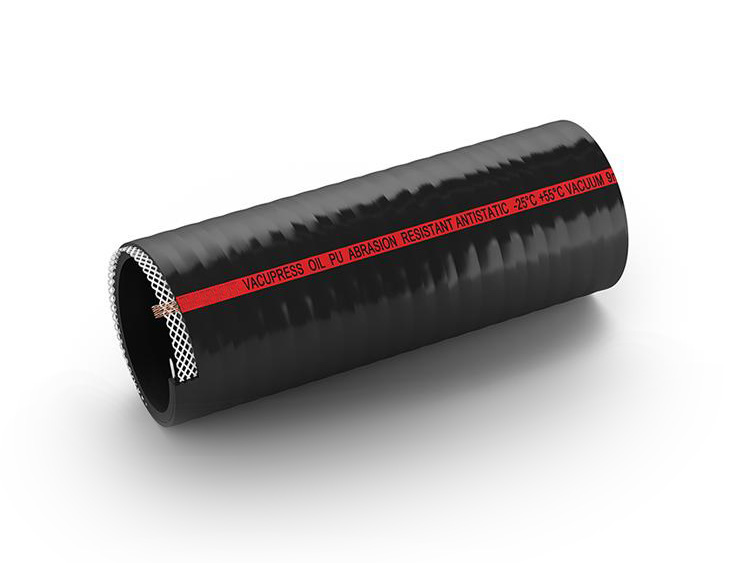

Two-layer hose in thermoplastic PVC, PU, NITRILE RUBBER compound with embedded galvanised steel spiral and polyester yarn reinforcement with copper wire for an anti-static rendering. The outer cover is made of an anti-abrasive PU, for suction and delivery of oils, blue diesel, diesel and bio diesel.

Product Code:PVCHSE007
Ø I.D.:
Ø O.D.:
Total Thickness:
Weight:
Bending Radius:
Working Pressure 1:3 23°C:
Working Pressure 1:4 23°C:
Bursting Pressure 23°C:
Vacuum 23°c:9 m h2o
Spiral Pitch:
Spiral Direction:right
Ø Spiral:
Coil Length:
£0.00 per coil (ex. VAT)
£0.00 (incl. VAT)
Product CodeØ I.D.Ø I.D.Ø O.D.Total ThicknessWeightBending RadiusWorking Pressure 1:3 23°CWorking Pressure 1:4 23°CBursting Pressure 23°CVacuum 23°cSpiral PitchSpiral DirectionØ SpiralCoil Length
PVCHSE007-013 inch76 mm90.5 mm7.25 mm2700 g/m210 mm10 bar8 bar30 bar9 m h2o13.5 mmright2 mm30 m
PVCHSE007-0280 mm94.5 mm7.25 mm2800 g/m220 mm10 bar8 bar30 bar9 m h2o14 mmright2 mm30 m
PVCHSE007-033 1/2 inch90 mm106 mm8 mm3250 g/m250 mm10 bar8 bar30 bar9 m h2o14 mmright2 mm30 m
PVCHSE007-044 inch102 mm117.5 mm7.75 mm3700 g/m300 mm10 bar8 bar30 bar9 m h2o14.5 mmright2 mm30 m
PVCHSE007-05120 mm137 mm8.5 mm4750 g/m450 mm8 bar6 bar24 bar9 m h2o15 mmright2.5 mm20 m
PVCHSE007-065 inch127 mm144 mm8.5 mm5300 g/m480 mm7 bar5 bar21 bar9 m h2o15 mmright2.5 mm20 m
PVCHSE007-07150 mm167.5 mm8.75 mm6300 g/m550 mm5 bar3 bar15 bar9 m h2o15.5 mmright2.5 mm20 m
PVCHSE007-086 inch152 mm169.5 mm8.75 mm6350 g/m550 mm5 bar3 bar15 bar9 m h2o15.5 mmright2.5 mm20 m
