Back Plate
SKU: WHDBA24

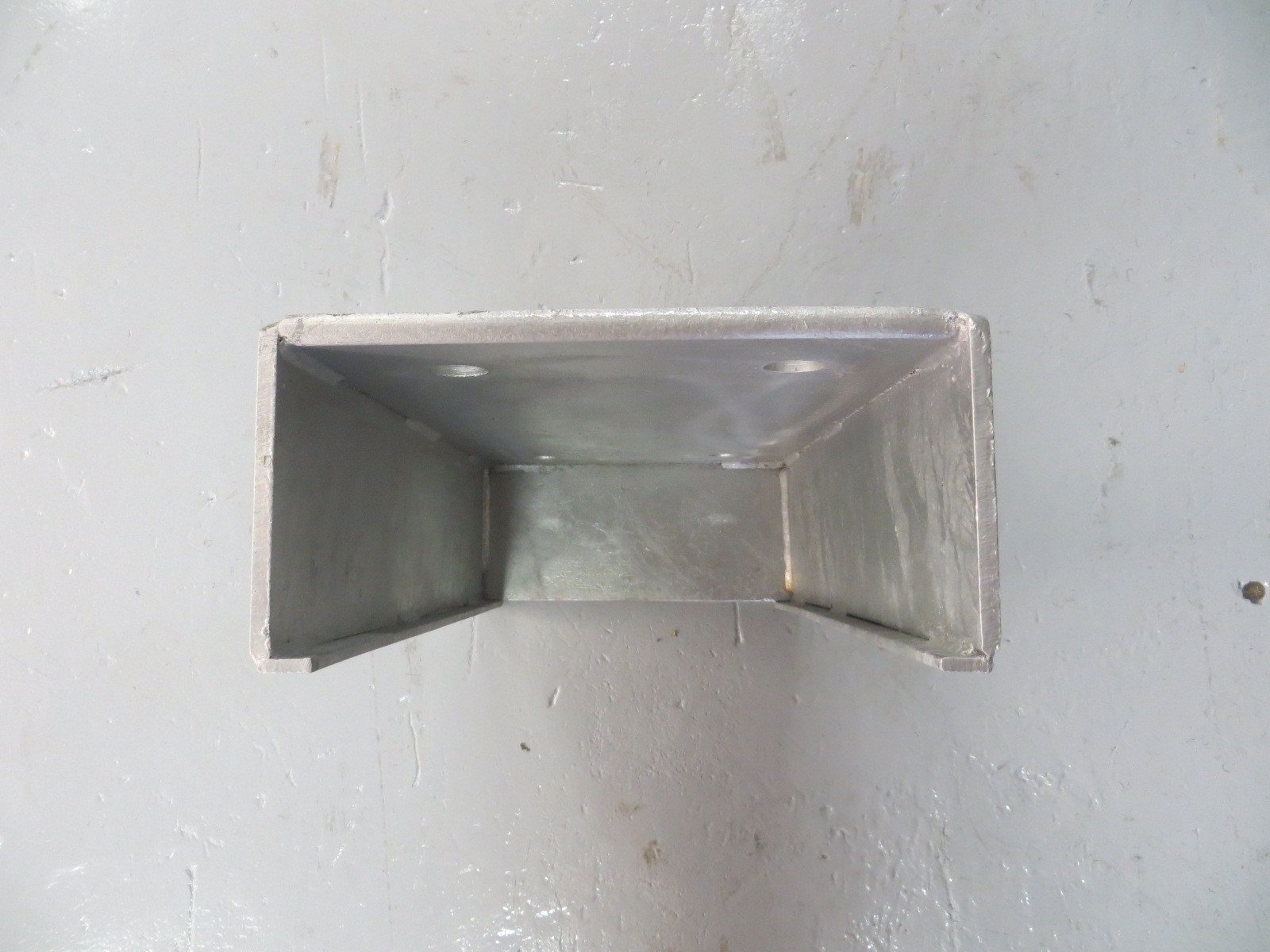

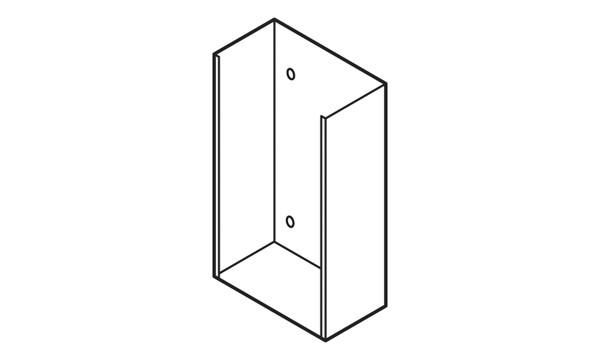

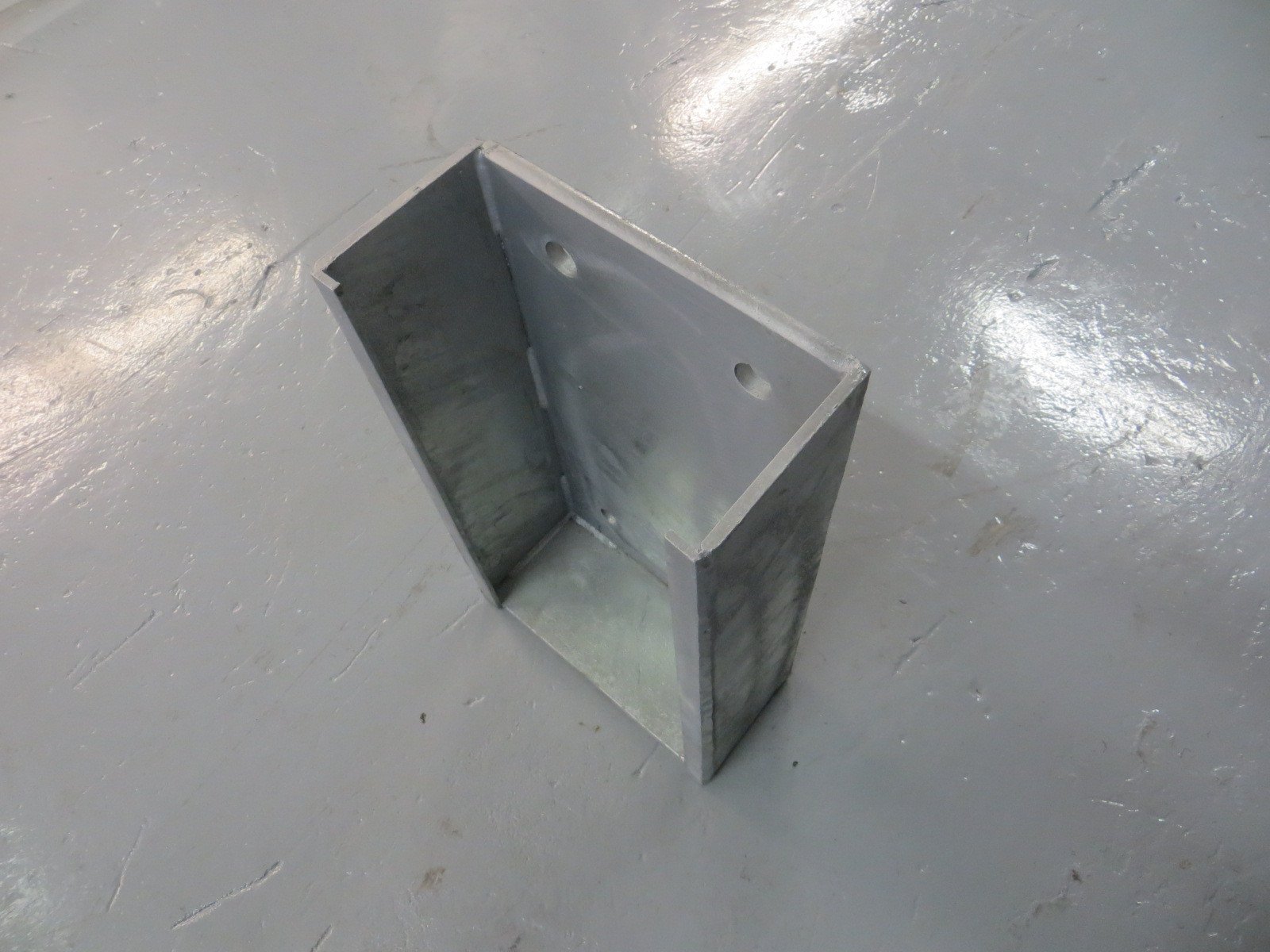

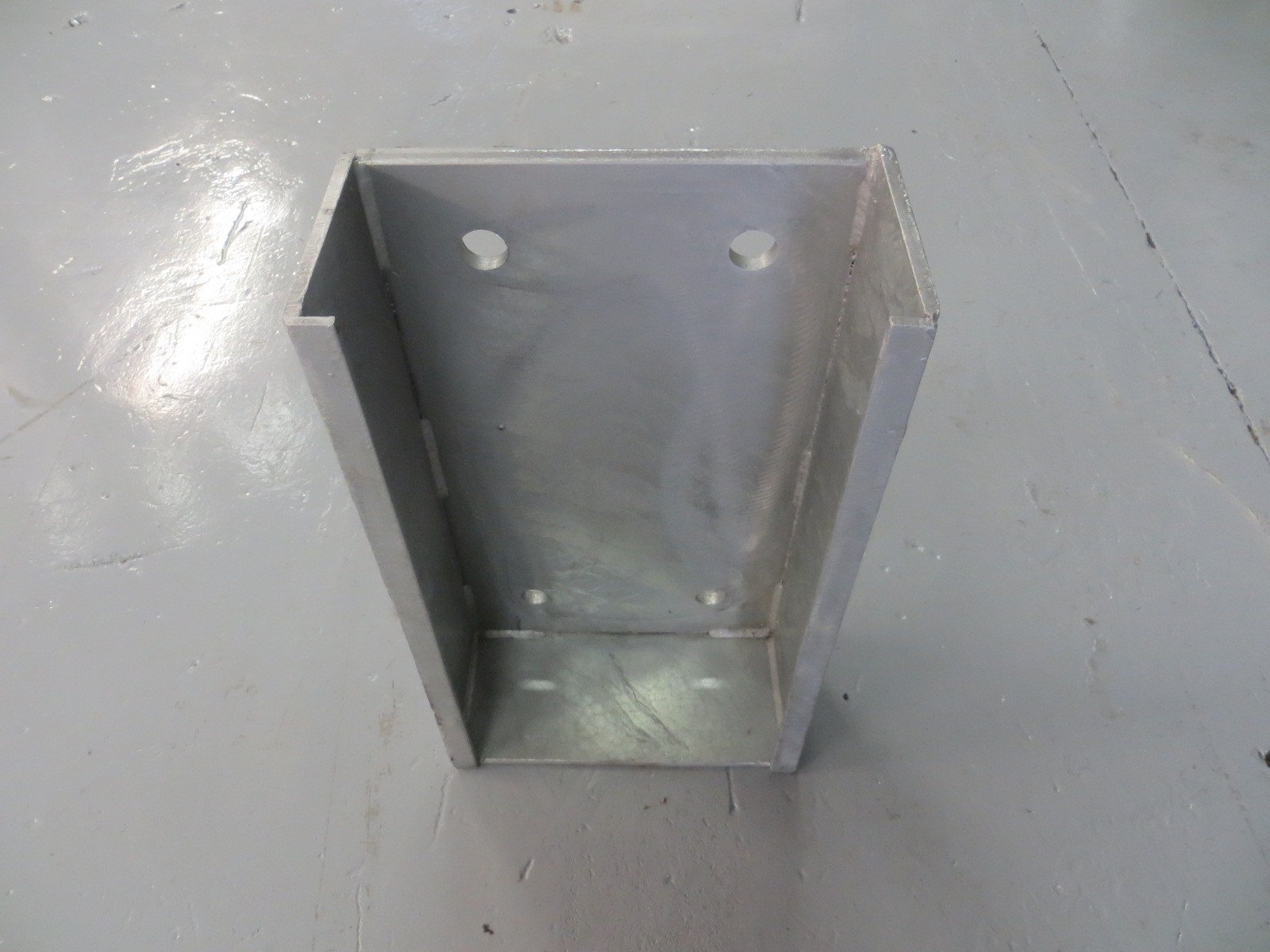

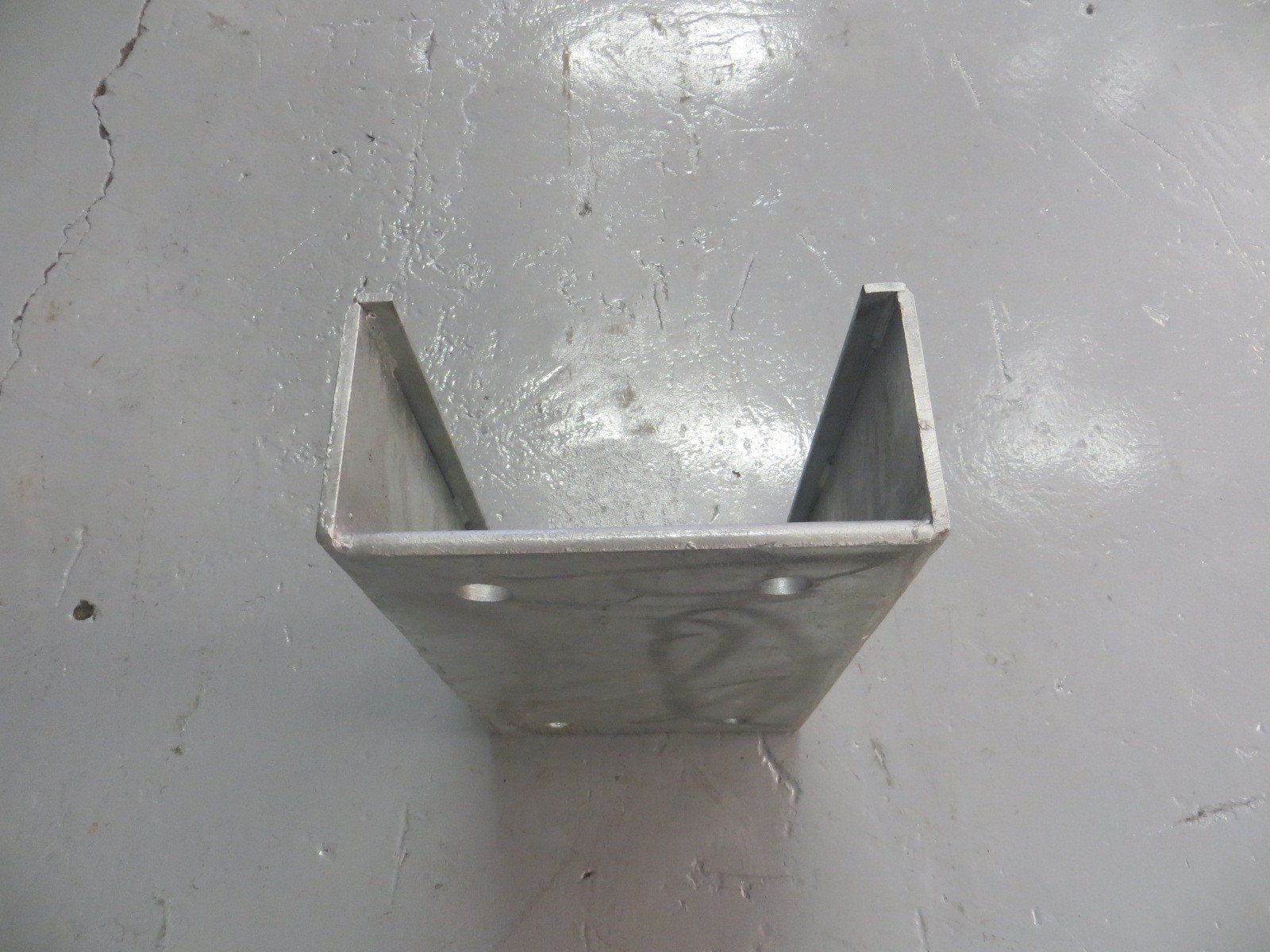

The WHDBA24 is the backing plate used in our WHDB21 Dock Bumper.

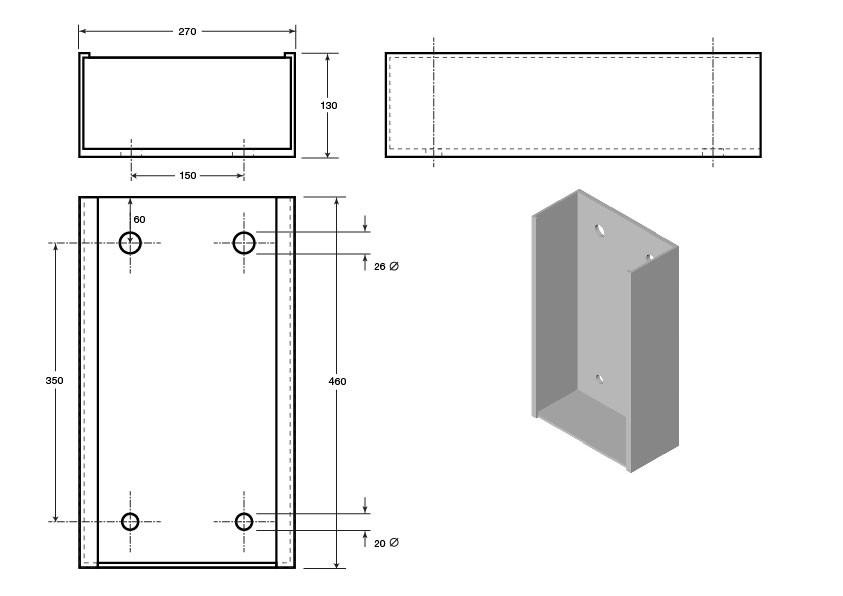

This backplate has 4 fixing holes... 2 at the top are 25mm dia to allow for M24 bolts to fix to an above dock angle bracket ( if required ) and 2 at the bottom at 20mm dia.
| Product Code: | WHDBA24 |
|---|---|
| Dimensions: | 470 x 270 x 120 mm |
| Weight: | 21 kg |
