Back Plate
SKU: WHDBA26

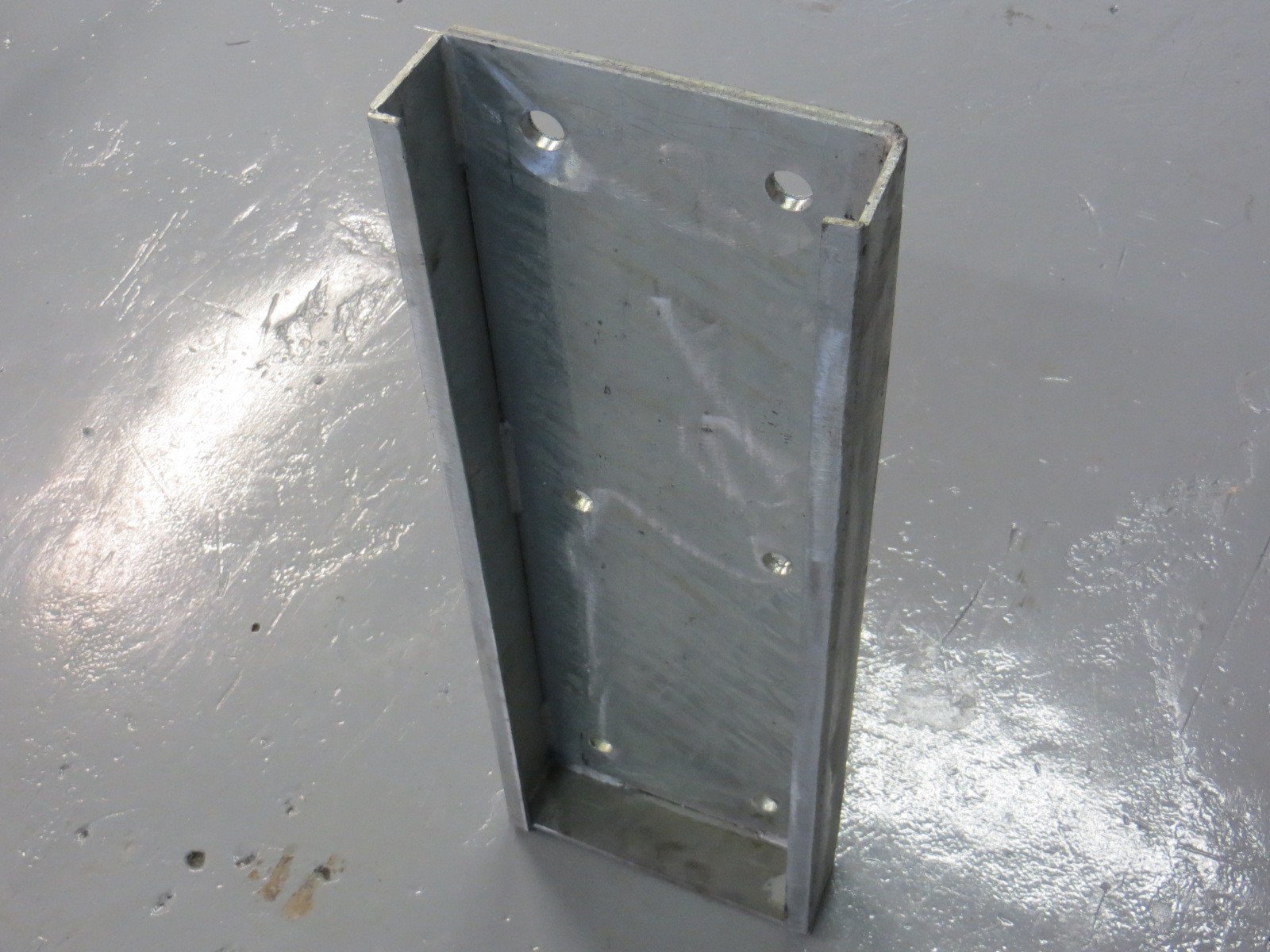

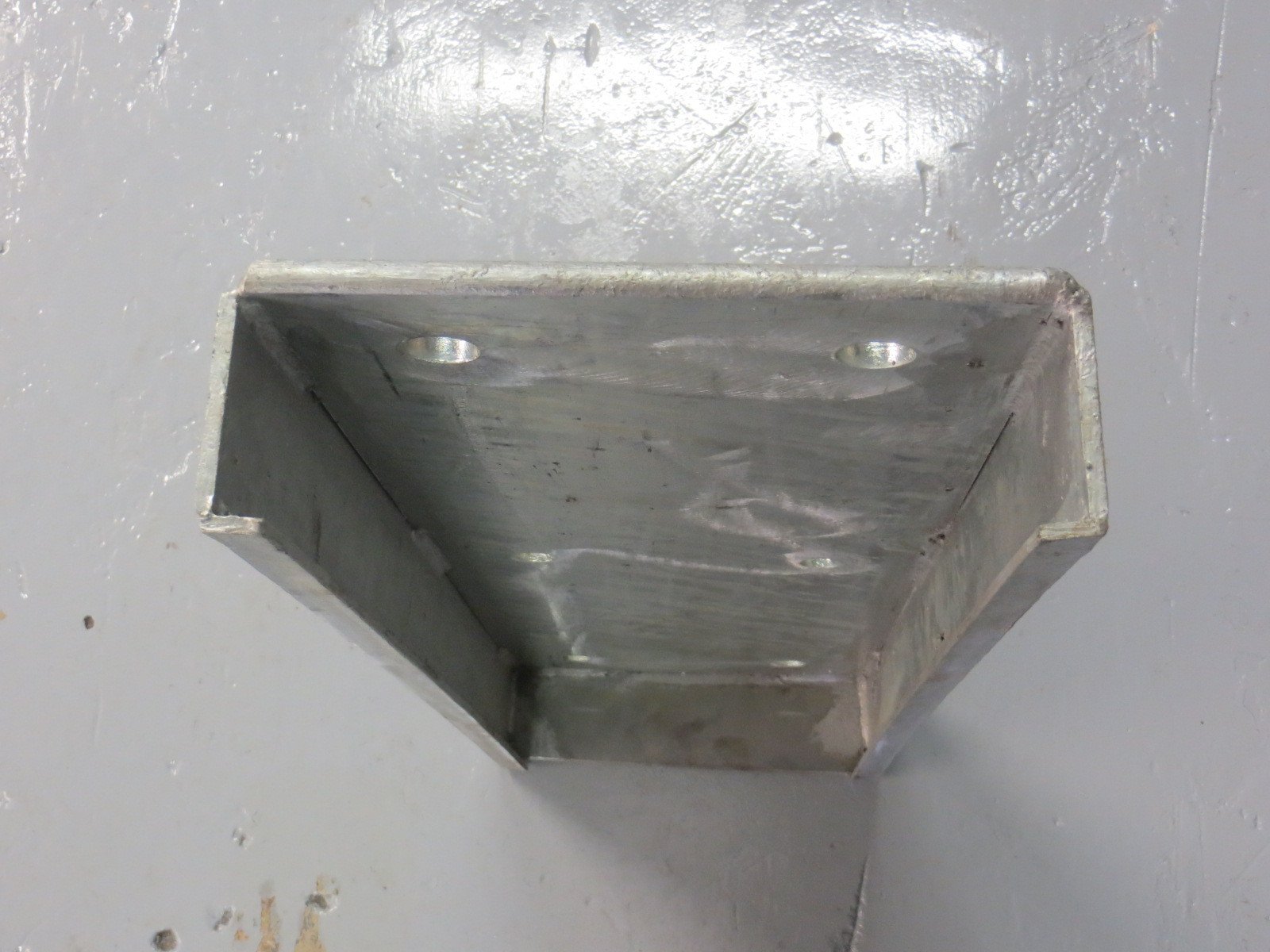

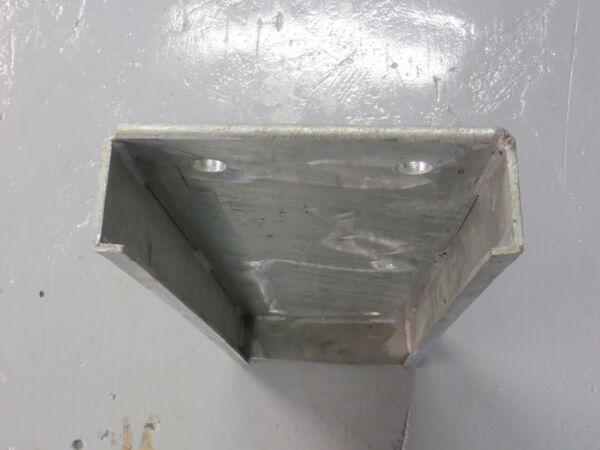

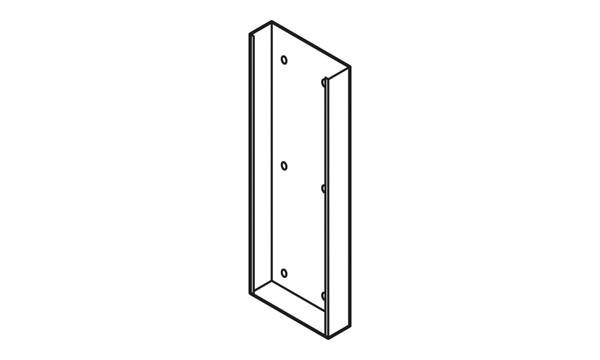

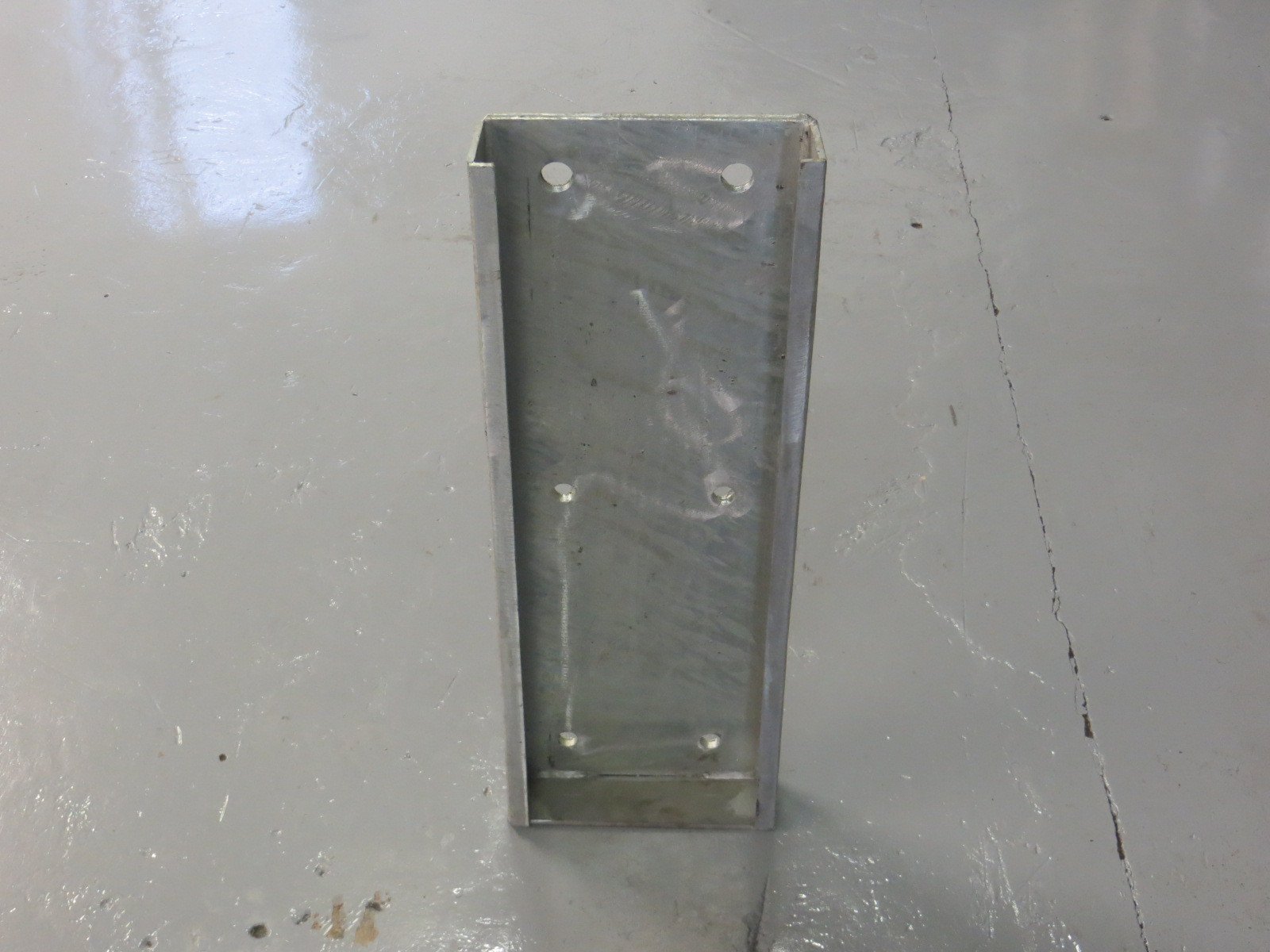

The WHDBA27 is the backing plate used in our WHDB22 Dock Bumper.

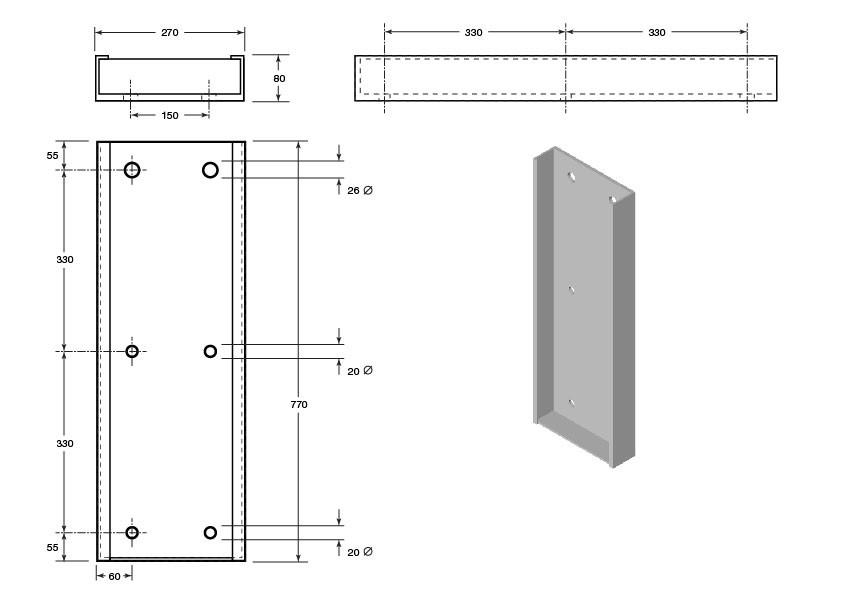

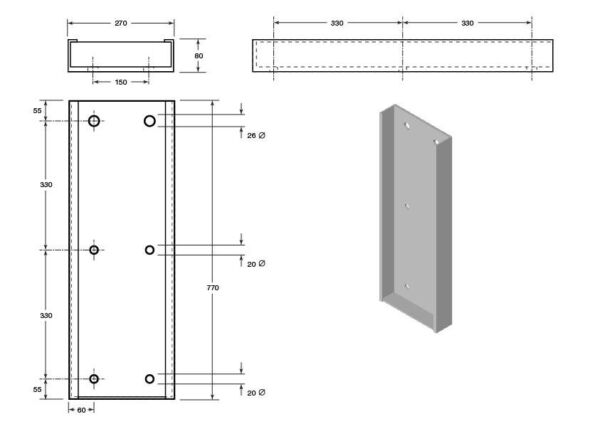

This backplate has 6 fixing holes... 2 at the top are 25mm dia to allow for M24 bolts to fix to an above dock angle bracket ( if required ), 2 half way down and 2 at the bottom 20mm dia.
| Product Code: | WHDBA26 |
|---|---|
| Dimensions: | 770 x 270 x 80 mm |
| Weight: | 26 kg |
