Back Plate

SKU: WHDBA27

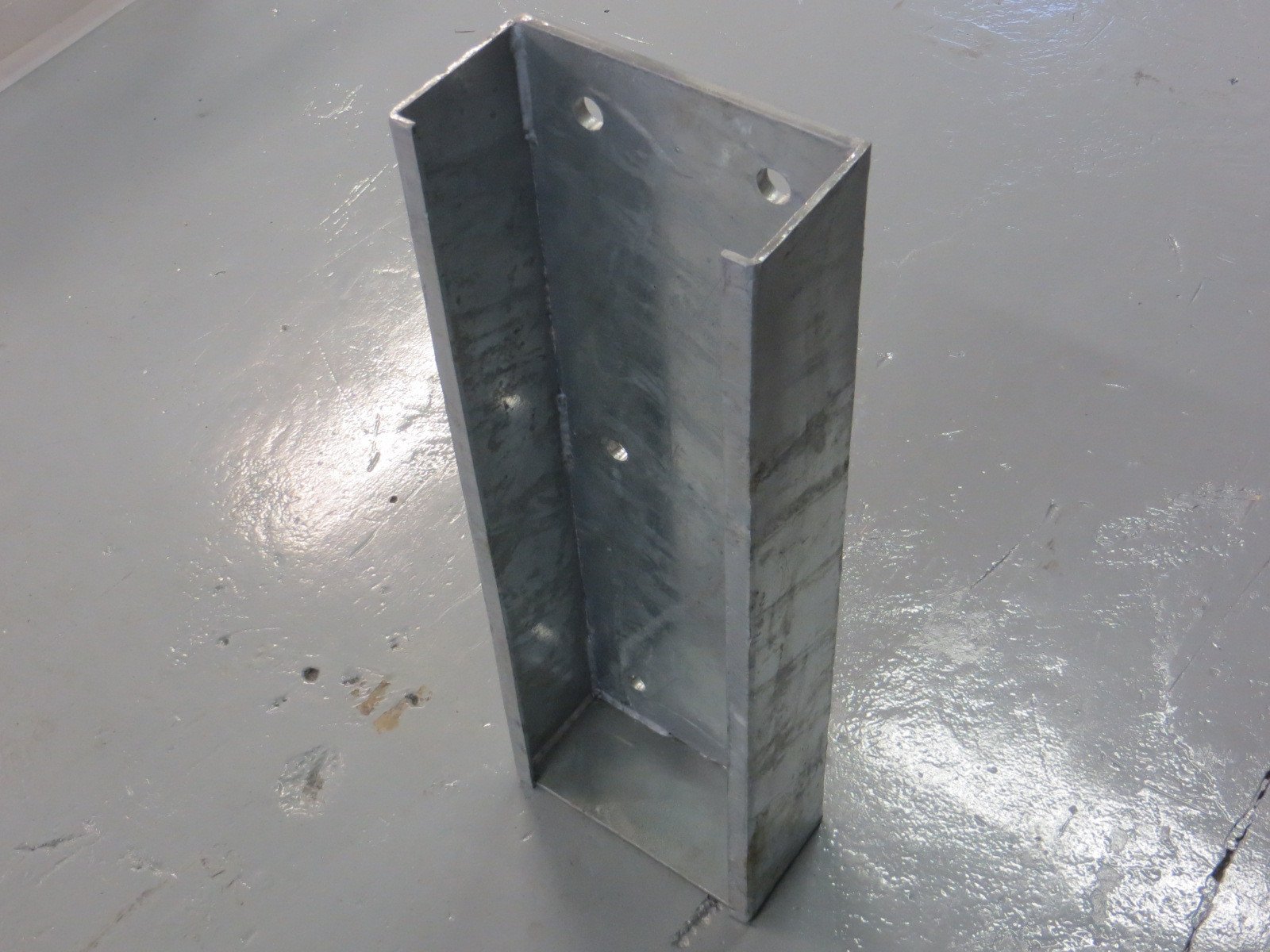

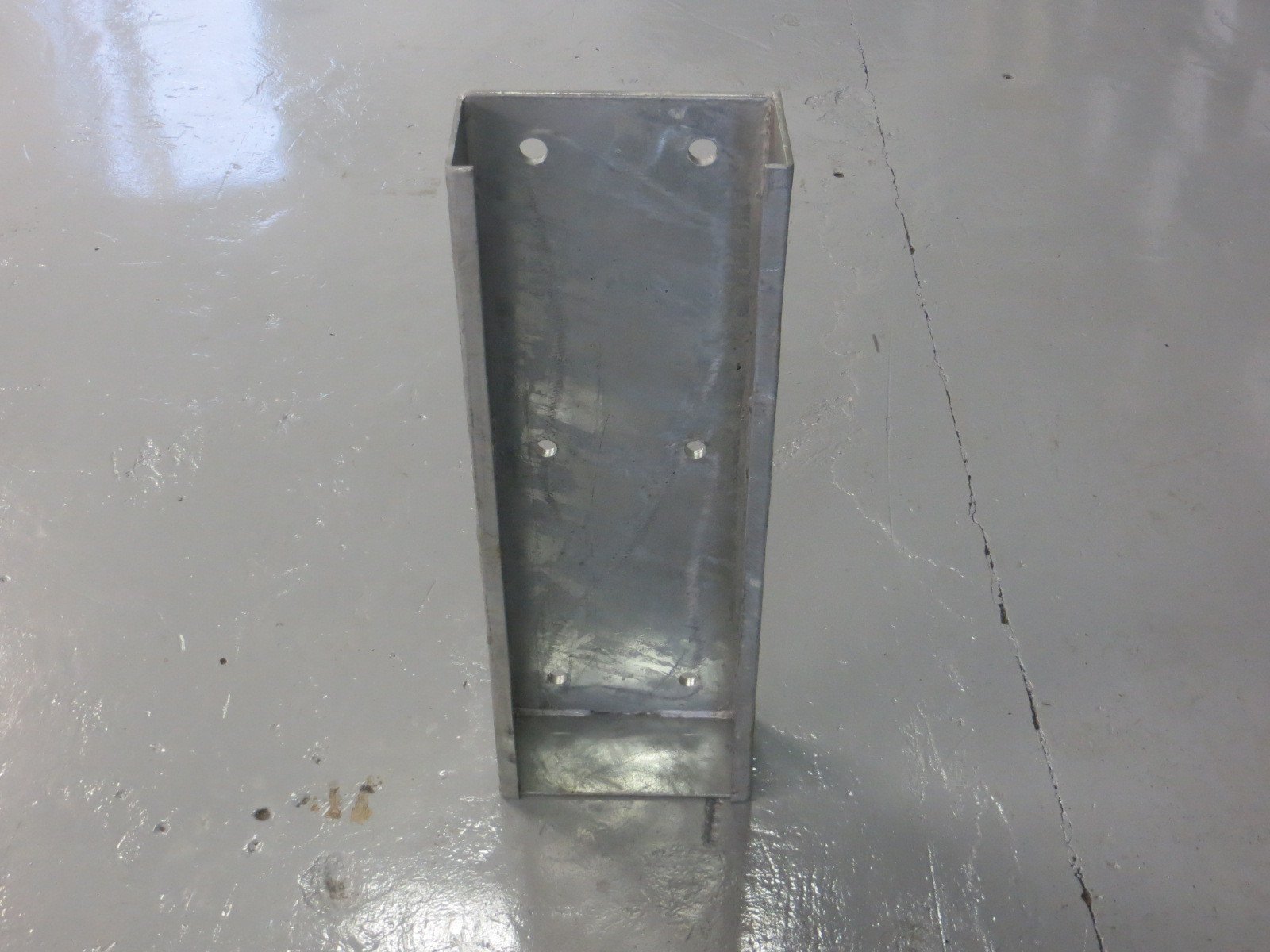

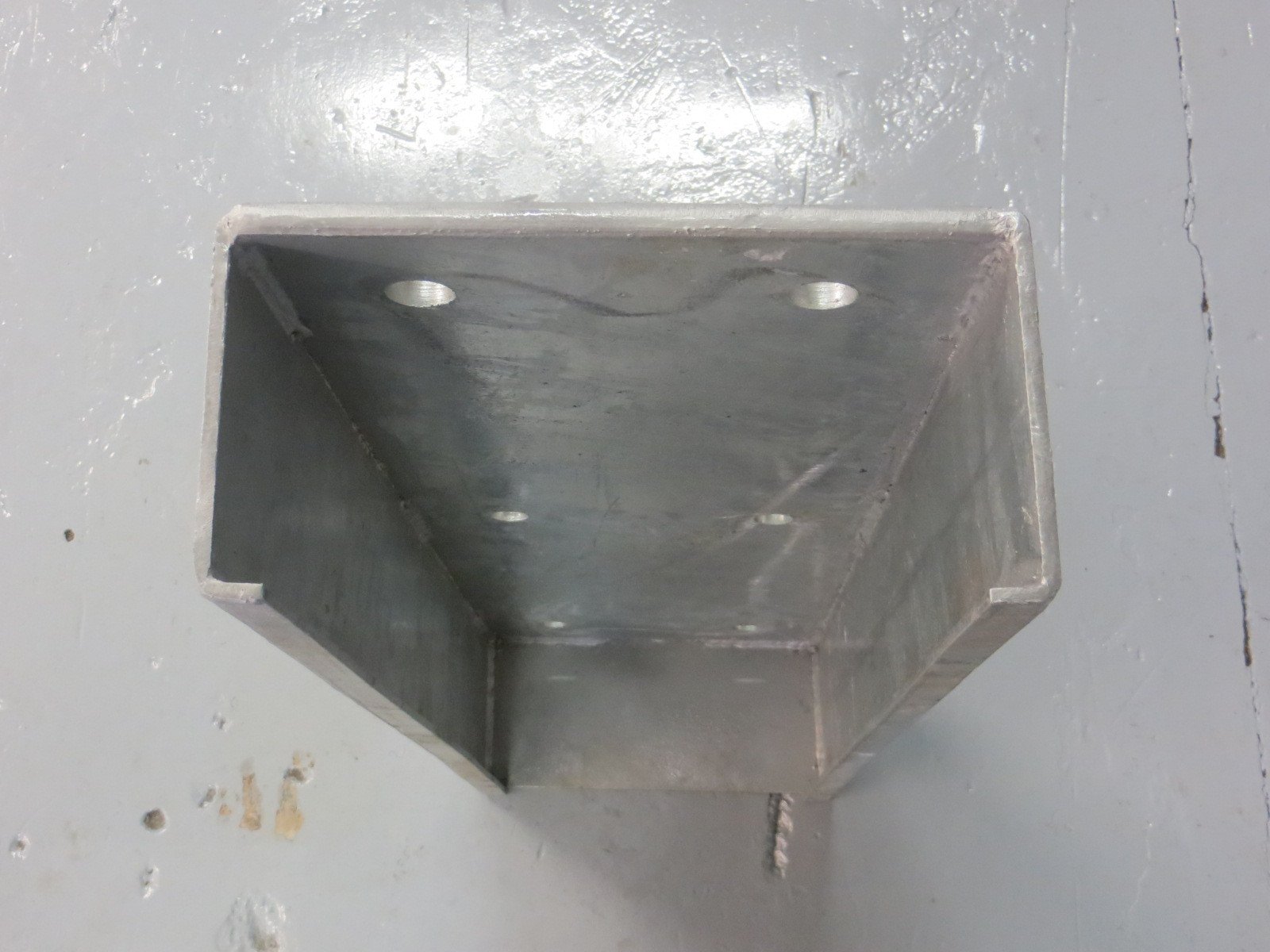

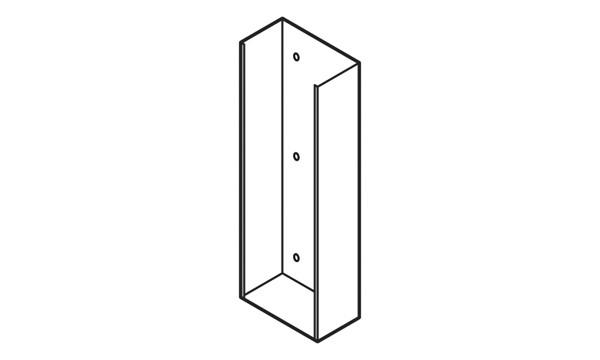

The WHDBA27 is the backing plate used in our WHDB23 Dock Bumper.

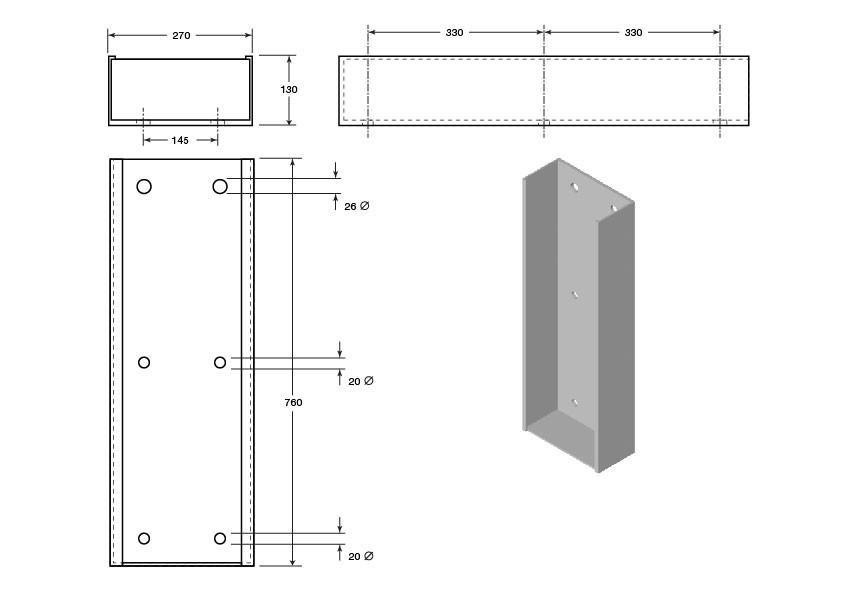

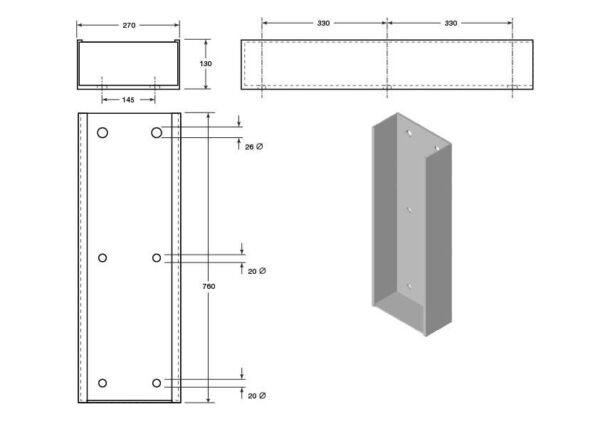

This galvanised backplate has 6 fixing holes... 2 at the top are 25mm dia to allow for M24 bolts to fix to an above dock angle bracket ( if required ), 2 half way down and 2 at the bottom 20mm dia.

Dimensions: 770 x 270 x 120 mm
Weight: 34 kg
£195.95 (ex. VAT)
£235.14 (incl. VAT)
In Stock

Gallery
