Hose And Cable Ramp

SKU: WHHCR28

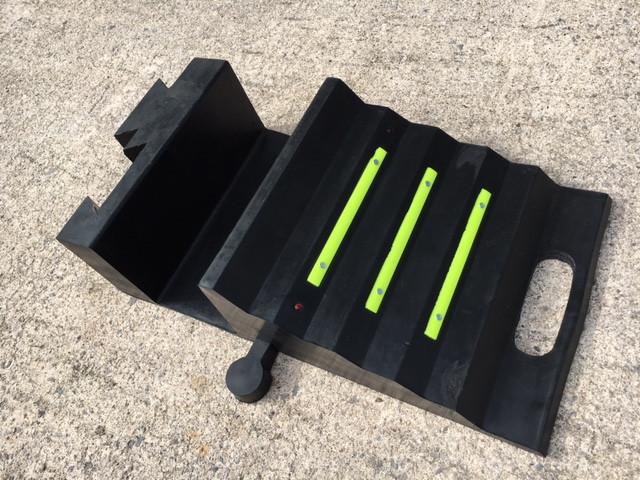

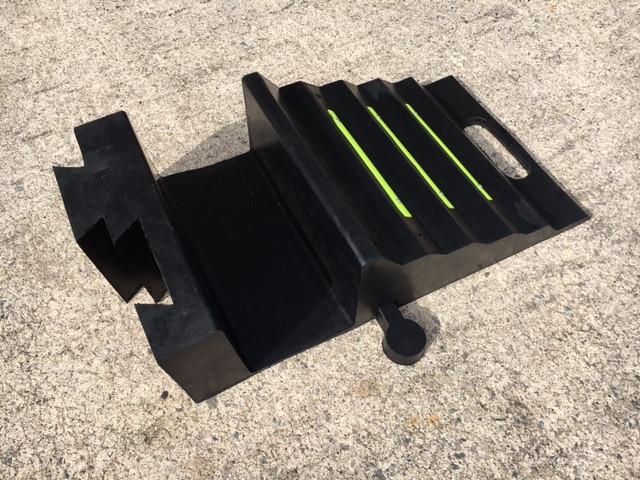

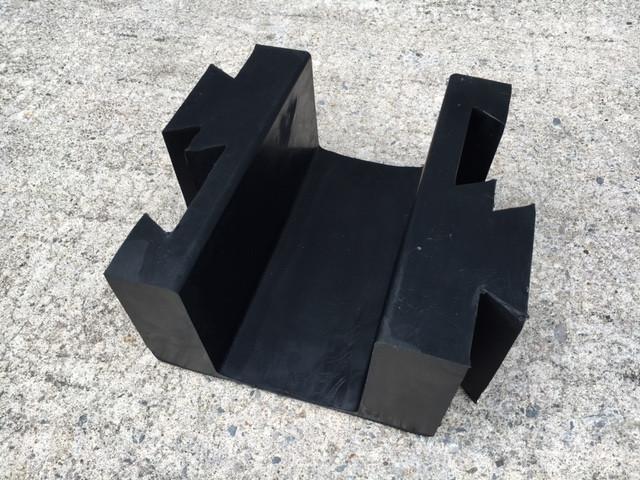

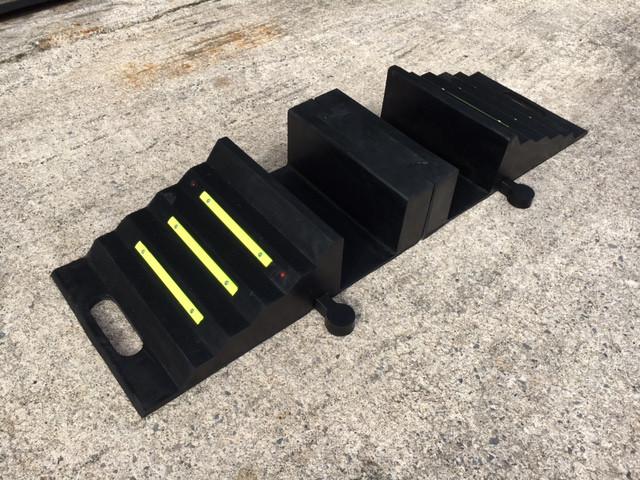

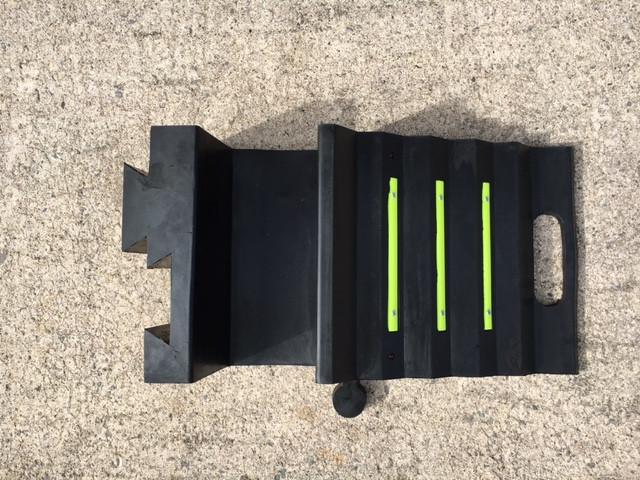

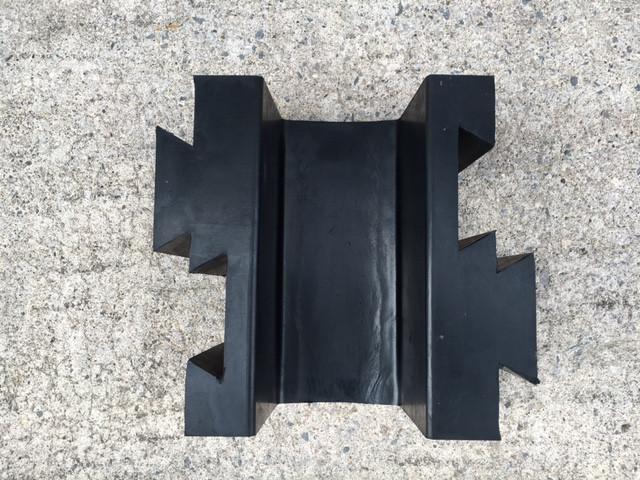

The WHHCR28 Hose and Cable Ramp is the ramp portion of a modular system that allows for many hoses and cables to be protected. The central section of this system is WHHCR29. The part has one open top channel. The channel is 125mm at the base and 135mm at the top. The depth of each channel is 125mm. Each part can be joined to another to make a ramp for an infinite number of cables.If required 2 pieces of WHHCR28 can be fitted together to make a ramp suitable for 2 x 125mm hose or cable, when packing these away it is possible to split the ramp and store face to face to take up less space than a standard hose ramp.

Dimensions:550 x 300 x 135 mm
Weight:10.5 kg
£88.83 (ex. VAT)
£106.60 (incl. VAT)
In Stock
Max Load

200 kg

Channel

210 x 150mm

Aluminium Tunnel

225 wide x 200mm high

Max Hose/Cable diameter

200mm

Max Vehicle weight

 44 Tonnes
