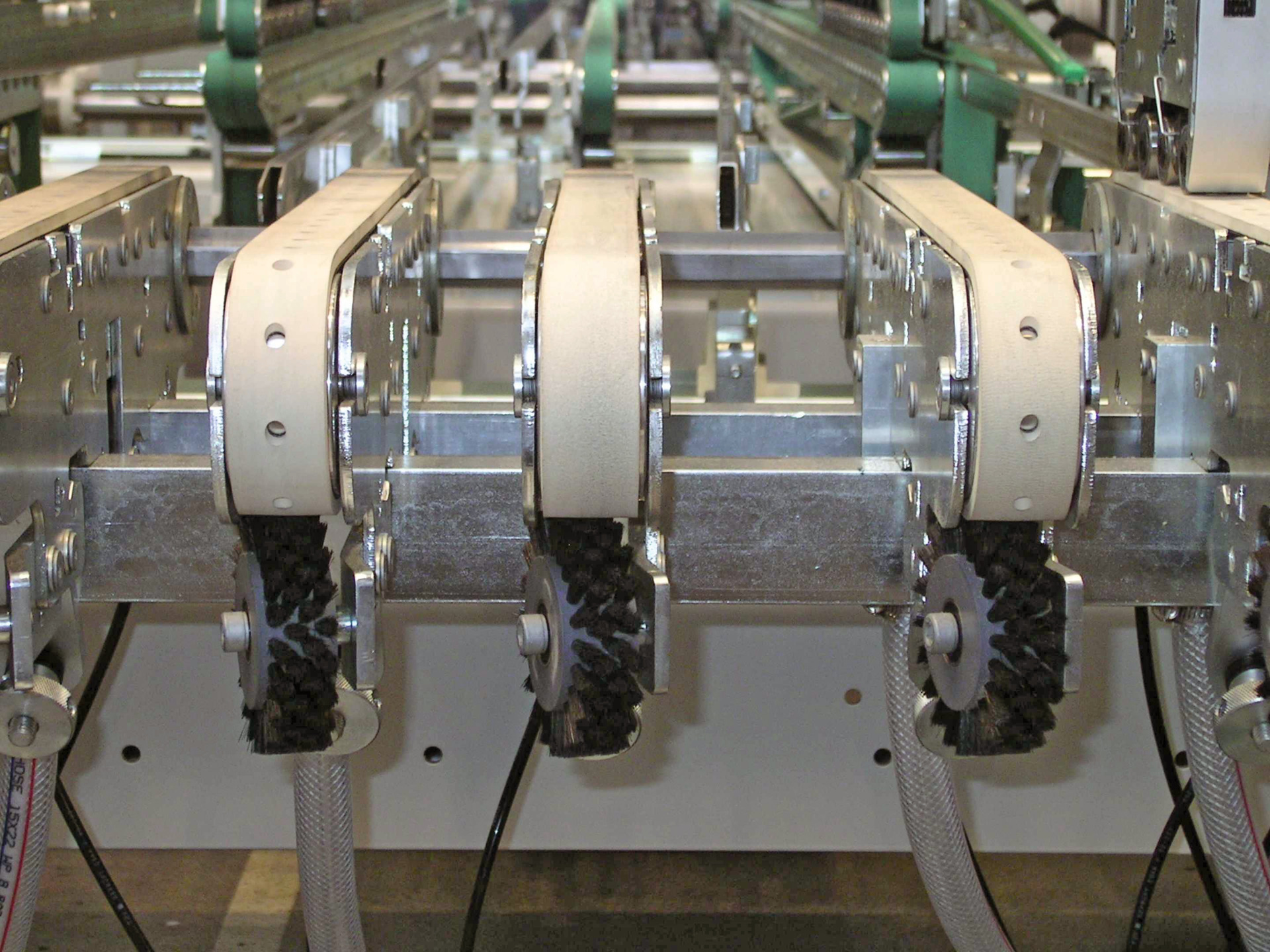

Polyamide Folder-Gluer Belts

SKU: PAF001

Variant Availability

See PDF in the table below for full product and technical details.

Product Code Manufacturer code Technical Data Product Construction/Design
Conveying Side Traction layer Running Side/Pulley Side
Thickness [mm] Pulley diameter (minimum) [mm] Tensile force for 1% elongation (k1% after running in) [N/mm] Material Property Colour Material Material Property Colour
PAF001-01 XVT-2205 3.0 7 Acrylonitrile-Butadiene-Rubber (NBR) Adhesive Light green Polyamide (PA) fabric Acrylonitrile-Butadiene-Rubber (NBR) Adhesive Yellow
PAF001-02 XVT-2213 4.0 7 Acrylonitrile-Butadiene-Rubber (NBR) Adhesive Light green Polyamide (PA) fabric Acrylonitrile-Butadiene-Rubber (NBR) Adhesive Yellow
PAF001-03 XVT-2226 5.0 7 Acrylonitrile-Butadiene-Rubber (NBR) Adhesive Light green Polyamide (PA) fabric Acrylonitrile-Butadiene-Rubber (NBR) Adhesive Yellow
PAF001-04 XVT-2236 6.0 7.5 Acrylonitrile-Butadiene-Rubber (NBR) Adhesive Light green Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) Adhesive Yellow
PAF001-05 XVT-2237 3.0 5 Acrylonitrile-Butadiene-Rubber (NBR) Adhesive Light green Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) Adhesive Yellow
PAF001-06 XVT-2238 4.0 5 Acrylonitrile-Butadiene-Rubber (NBR) Adhesive Light green Polyamide (PA) Acrylonitrile-Butadiene-Rubber (NBR) Adhesive Yellow
