| Product Code | Ø I.D. | Ø O.D. | Wall Thickness | Weight | Bending Radius | Working Pressure 1:3 23°C | Bursting Pressure 23°C | Spiral Pitch | Vacuum 23°c |
|---|---|---|---|---|---|---|---|---|---|
| PVCHSE043-01 | 16 mm | 21.8 mm | 2,9 mm | 220 g/m | 60 mm | 7 bar | 21 bar | 6.2 mm | 7 m h2o |
| PVCHSE043-02 | 19 mm | 25.4 mm | 3,2 mm | 280 g/m | 90 mm | 7 bar | 21 bar | 7 mm | 7 m h2o |
| PVCHSE043-03 | 20 mm | 26.4 mm | 3,2 mm | 300 g/m | 100 mm | 7 bar | 21 bar | 6.7 mm | 7 m h2o |
| PVCHSE043-04 | 25 mm | 32.6 mm | 3,8 mm | 460 g/m | 110 mm | 7 bar | 21 bar | 7 mm | 7 m h2o |
| PVCHSE043-05 | 38 mm | 45.6 mm | 3,8 mm | 670 g/m | 180 mm | 6 bar | 18 bar | 8.2 mm | 7 m h2o |
Idropool Marine Waste
SKU: PVCHSE043

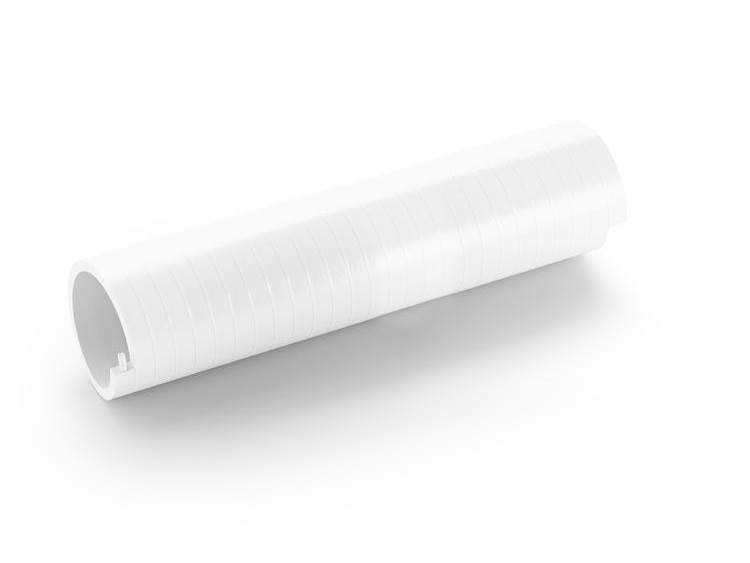

PVC hose with PVC spiral. Designed for spa-bath/swimming pool supply and recirculation as a substitute or alternative to the rigid hoses.
Related Products
Dual layer plasticised PVC hose complete with embedded galvanised steel spiral and polyester yarn reinforcement. Designed for suction and delivery of liquids.
