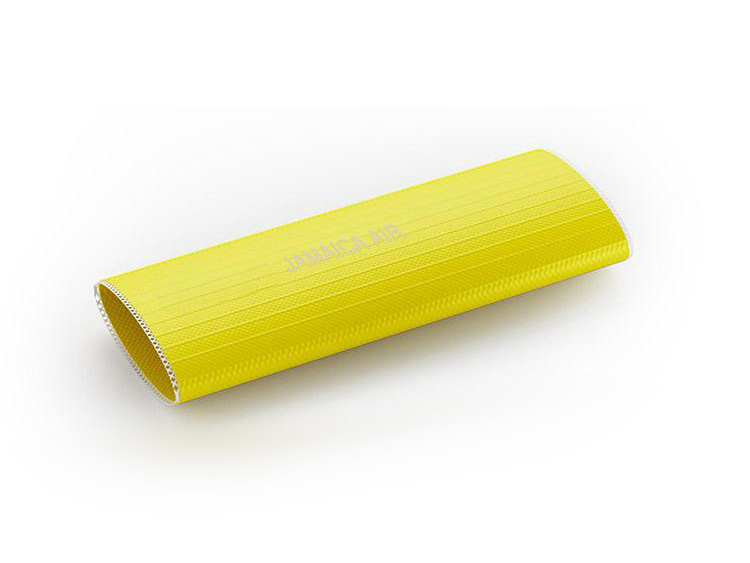

Jamaica Air

SKU: PVCHSE117

Flexible lay-flat Nitrile Rubber (NBR) hose with a polyester yarn reinforcement. Designed to be resistant to elongation and for the pressurised delivery of air.

Product Code:PVCHSE117
Ø I.D.:
Total Thickness:2.3 mm
Weight:
Bending Radius:
Working Pressure 1:3 23°C:
Bursting Pressure 23°C:
Tensile Strength:
Coil Length:60 m
£0.00 per coil (ex. VAT)
£0.00 (incl. VAT)
Product CodeØ I.D.Ø I.D.Total ThicknessWeightBending RadiusWorking Pressure 1:3 23°CBursting Pressure 23°CTensile StrengthCoil Length
PVCHSE117-013/4 inch20 mm2.3 mm230 g/m400 mm30 bar90 bar1180 kg60 m
PVCHSE117-021 inch25 mm2.3 mm265 g/m450 mm30 bar90 bar1350 kg60 m
PVCHSE117-031 1/4 inch32 mm2.3 mm310 g/m500 mm30 bar90 bar1750 kg60 m
PVCHSE117-041 1/2 inch38 mm2.3 mm365 g/m750 mm20 bar60 bar2000 kg60 m
PVCHSE117-051 3/4 inch45 mm2.3 mm395 g/m850 mm20 bar60 bar2400 kg60 m
PVCHSE117-062 inch52 mm2.3 mm510 g/m1300 mm20 bar60 bar2900 kg60 m
