| Max Load | 44 Tonnes |
|---|---|
| Channel | 105 x 200mm |
Hose And Cable Ramp
SKU: WHHCR17

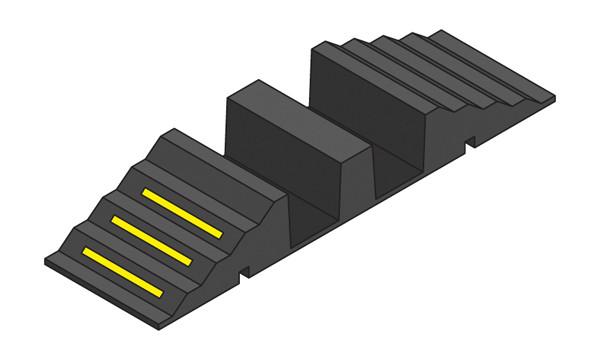

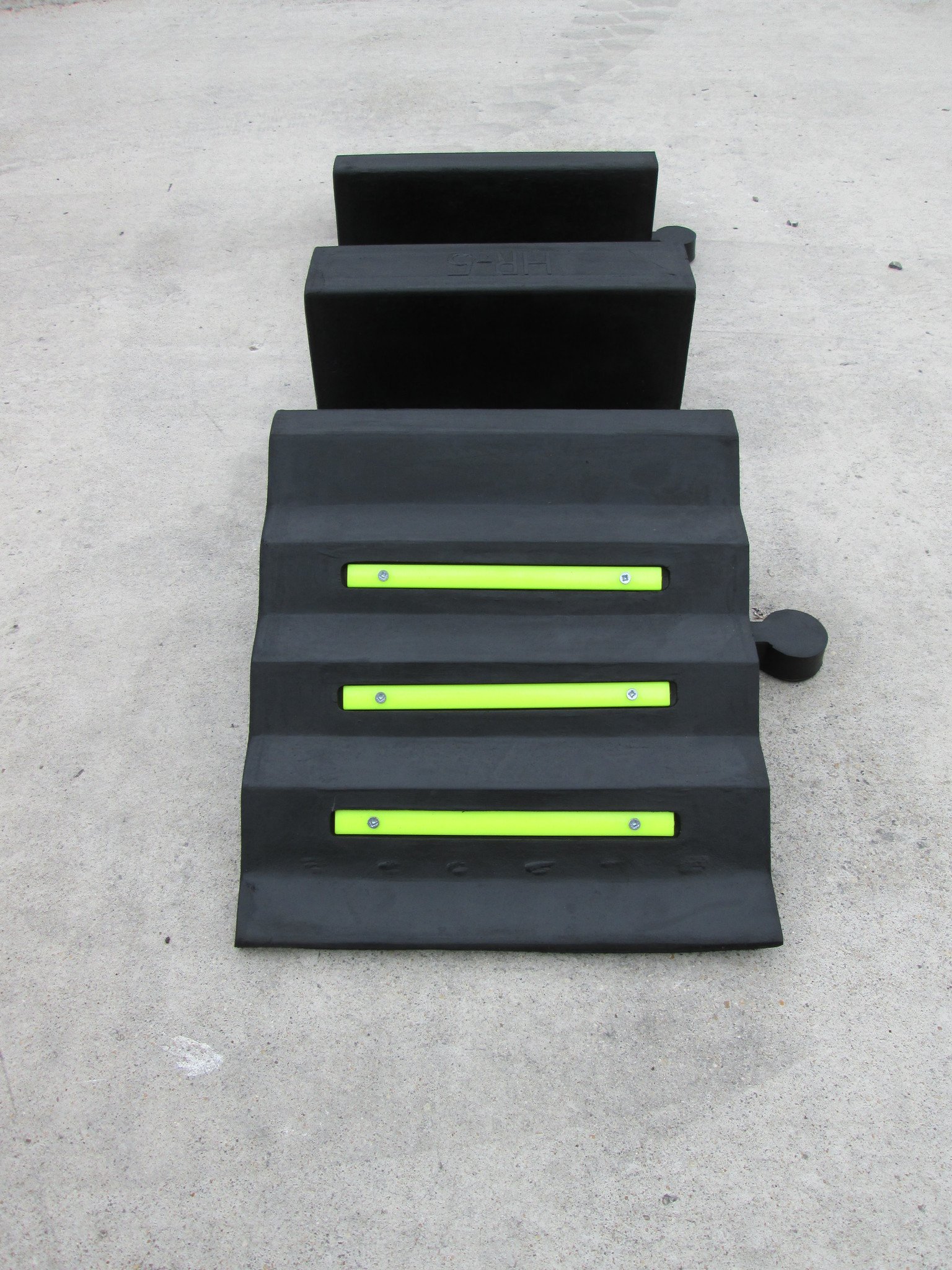

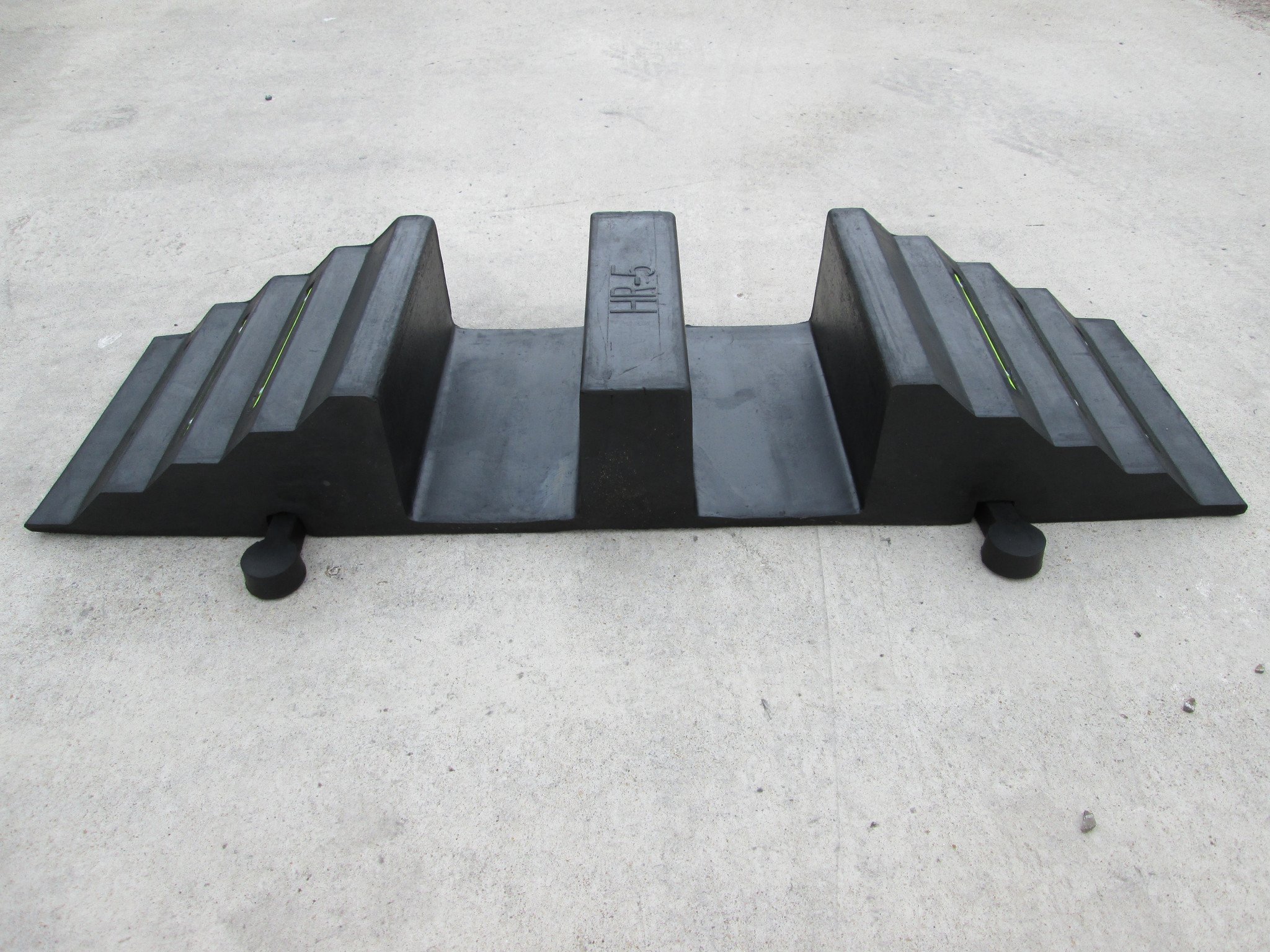

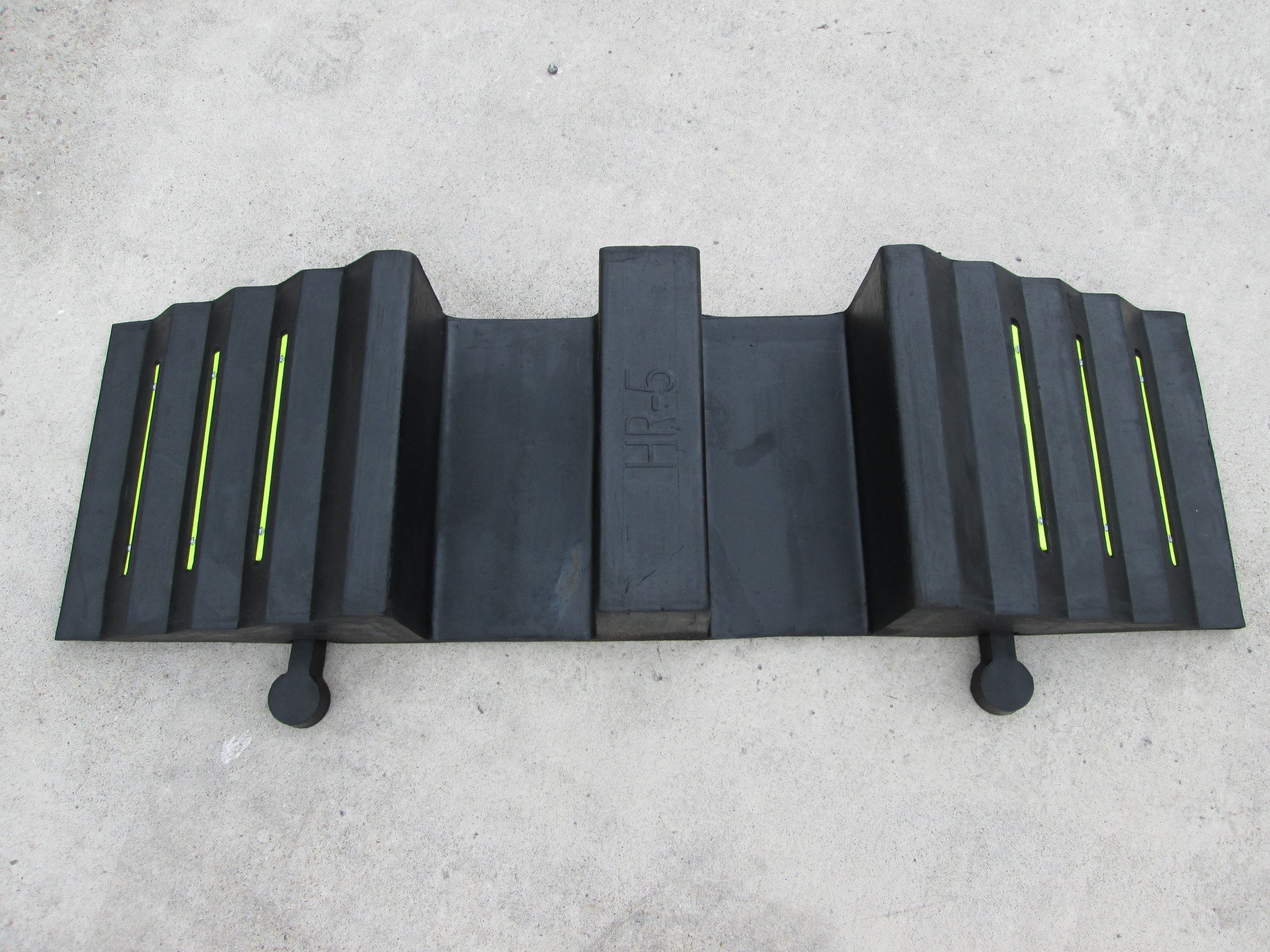

The WHHCR17 Hose and Cable Ramp is a moulded rubber hose ramp designed to protect 2 x 125mm diameter hoses. The part has two open top channels. Each channel is 135mm at the base opening up to 140mm at the top. The depth of each channel is 120mm. Each face of the ramp has three yellow visibility strips embedded into slots. The ramp is supplied with 2 connecting connectors fitted. Spares are available if required.
| Product Code: | WHHCR17 |
|---|---|

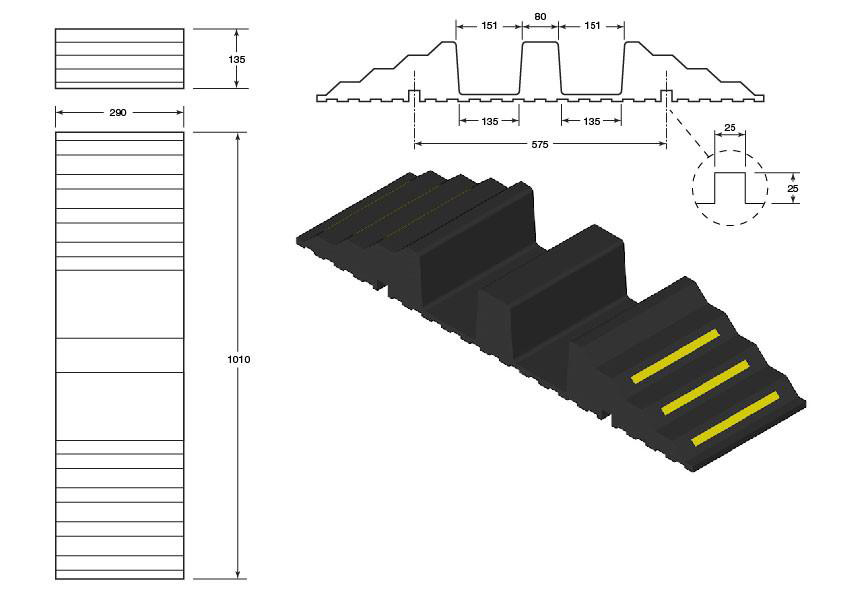

| Dimensions: | 980 x 290 x 135 mm |
| Weight: | 16 kg |
